Renesas超低抖动晶振,XPL736125.000000I,高精度测量设备晶振，进口晶振，Renesas瑞萨电子晶振，XP系列晶振，编码为：XPL736125.000000I，频率为：125.000MHz，小体积晶振尺寸：7.0x5.0x1.7mm封装，8垫脚贴片晶振，LVDS输出差分晶体振荡器，差分晶振，石英晶振，SMD晶振，有源晶振，石英晶体振荡器，电压3.3V，工作温度范围：-40℃至+85℃。具有超小型，轻薄型，低抖动，低功耗，低电源电压，低相位噪声，低损耗，低耗能，低电平等特点。应用于：移动通讯设备，物联网，无线网络，蓝牙模块，路由器，交换机，以太网，仪器仪表、SATA，SAS，光纤通道，导航仪，医疗设备，安防设备等应用。

XP系列是超低相位噪声的基于石英的PLL振荡器，支持大范围的频率和输出接口类型。这些设备被设计为操作在三种不同的电源供应，并可在三种包装尺寸与几种针形配置，以及三种操作温度范围。XP设备可以通过编程产生从15MHz到2100MHz的输出频率，分辨率低至1Hz的精度。该系列设备的配置能力允许样品和大型生产订单的快速交付时间。

LH-2

Renesas超低抖动晶振,XPL736125.000000I,高精度测量设备晶振,参数表

Parameter	TestCondition		Minimum	Typical	Maximum	Units
OutputFrequencyRange	LVDS,LVPECL,CML.			—	125.000	MHz
OutputFrequencyRange	HCSL.		15	—	725
Frequency Stability	Temperature=-40°Cto+85°C.		—	—	±25	ppm
Frequency Stability	Temperature=-40°Cto+105°C.		—	—	±50	ppm
Frequency Tolerance (25°C)	Temperature=25°C.		-15	±10	-15	ppm
Aging(1styear)	TA=25°C.		—	—	±3	ppm
Aging(10years)	TA=25°C.		—	—	±10	ppm
Output Load	LVDS.	Differential.	—	100	—	Ω
	LVPECL.	VDD-2.0V.	—	50	—
	HCSL.	ToGND.	—	50	—
Start-up Time	Output valid time after VDD meets minimum specified level.		—	5	—	ms
OutputRiseTime	LVDS.	20% – 80%, 156.25MHz	—	299	400	ps
	LVPECL.		—	287	400
	HCSL.		—	306	400
	CML		—	301	400
OutputFallTime	LVDS.	20% – 80%, 156.25MHz	—	279	400	ps
	LVPECL.		—	274	400
	HCSL.		—	284	400
	CML		—	279	400
OutputClockDutyCycle	LVDS.	156.25MHz	48	—	52	%
	LVPECL.	156.25MHz	48	—	52
	HCSL.	156.25MHz	48	—	52
	CML	156.25MHz	48	—	52
OutputEnable/DisableTime	—	—	—	1	—	ms

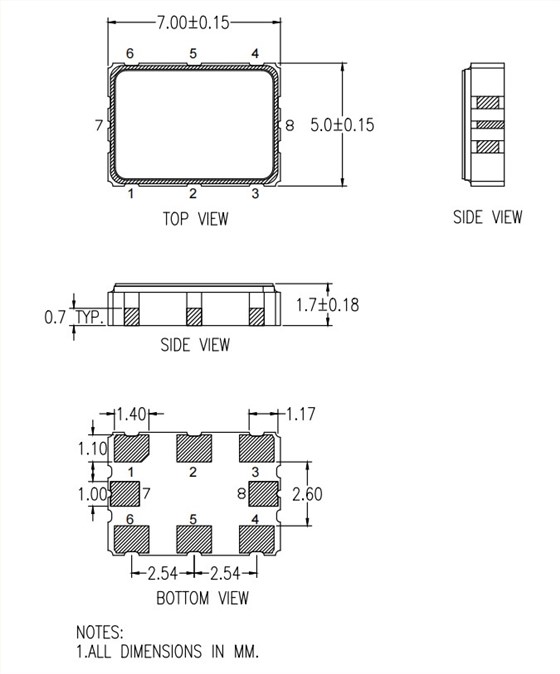

Renesas超低抖动晶振,XPL736125.000000I,高精度测量设备晶振,尺寸图

Renesas超低抖动晶振,XPL736125.000000I,高精度测量设备晶振

产品特点：

输出类型：LVDS、LVPECL、CML
频率范围：15MHz至2100MHz
输出类型：HCSL
频率范围：15MHz至725MHz
电源电压选项：1.8V、2.5V或3.3V
相位抖动（12kHz至20MHz）：典型值为120fs
程序包选项：

7.0×5.0×1.7mm石英晶体振荡器

5.0×3.2×1.17mm

3.2×2.5×1.07mm
工作温度和频率稳定性：
-40°C至+85°C，±25ppm
-40°C至+105°C，±50ppm

编码	进口晶振	描述	系列	频率	输出	电压
XPL536800.000000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	800 MHz	LVDS	3.3V
XPL526200.000000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	200 MHz	LVDS	2.5V
XPL316133.333333I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	133.333333 MHz	LVDS	1.8V
XPL336016.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	16 MHz	LVDS	3.3V
XPL536C10.937500I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	1.2109375 GHz	LVDS	3.3V
XPL736156.250000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPL	156.25 MHz	LVDS	3.3V
XPL536148.500000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	148.5 MHz	LVDS	3.3V
XPL736148.500000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPL	148.5 MHz	LVDS	3.3V
XPL336148.500000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	148.5 MHz	LVDS	3.3V
XPL336156.250000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	156.25 MHz	LVDS	3.3V
XPL336125.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	125 MHz	LVDS	3.3V
XPL316050.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	50 MHz	LVDS	1.8V
XPL316032.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	32 MHz	LVDS	1.8V
XPL516156.250000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	156.25 MHz	LVDS	1.8V
XPL336100.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	100 MHz	LVDS	3.3V
XPL736125.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPL	125 MHz	LVDS	3.3V
XPL536148.163548I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	148.163548 MHz	LVDS	3.3V
XPL736300.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPL	300 MHz	LVDS	3.3V
XPL316156.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	156 MHz	LVDS	1.8V
XPL326200.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	200 MHz	LVDS	2.5V
XPL526312.500000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	312.5 MHz	LVDS	2.5V
XPL336040.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	40 MHz	LVDS	3.3V
XPL736800.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPL	800 MHz	LVDS	3.3V
XPL536070.656000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	70.656 MHz	LVDS	3.3V
XPL316033.333333I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	33.333333 MHz	LVDS	1.8V
XPL316080.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	80 MHz	LVDS	1.8V
XPL336200.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	200 MHz	LVDS	3.3V
XPL336644.531250I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	644.53125 MHz	LVDS	3.3V
XPL326156.250000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	156.25 MHz	LVDS	2.5V
XPL326500.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	500 MHz	LVDS	2.5V
XPL336830.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	830 MHz	LVDS	3.3V
XPL516625.000000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	625 MHz	LVDS	1.8V
XPL316322.265625I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	322.265625 MHz	LVDS	1.8V
XPL526156.250000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	156.25 MHz	LVDS	2.5V
XPL726B00.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPL	1.1 GHz	LVDS	2.5V
XPL336049.152000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	49.152 MHz	LVDS	3.3V
XPL316026.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	26 MHz	LVDS	1.8V
XPL736016.254000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPL	16.254 MHz	LVDS	3.3V
XPL336070.656000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	70.656 MHz	LVDS	3.3V
XPL726C00.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPL	1.2 GHz	LVDS	2.5V
XPL536200.000000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	200 MHz	LVDS	3.3V
XPL326161.132800I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	161.1328 MHz	LVDS	2.5V
XPL336160.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	160 MHz	LVDS	3.3V
XPL336830.078125I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	830.078125 MHz	LVDS	3.3V
XPL336312.500000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPL	312.5 MHz	LVDS	3.3V
XPL526027.000000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	27 MHz	LVDS	2.5V
XPL516125.000000I	Renesas晶振	XTAL OSC XO 125.0000MHZ LVDS SMD	XPL	125 MHz	LVDS	1.8V
XPL726156.250000I	Renesas晶振	XTAL OSC XO 156.2500MHZ LVDS SMD	XPL	156.25 MHz	LVDS	2.5V
XPL726200.000000I	石英晶振	XTAL OSC XO 200.0000MHZ LVDS SMD	XPL	200 MHz	LVDS	2.5V
XPL736148.351648I	Renesas晶振	XTAL OSC XO 148.351648MHZ LVDS	XPL	148.351648 MHz	LVDS	3.3V
XPL526125.000000I	Renesas晶振	XTAL OSC XO 125.0000MHZ LVDS SMD	XPL	125 MHz	LVDS	2.5V
XPL736F00.000000I	Renesas晶振	XTAL OSC XO 1.5000GHZ LVDS SMD	XPL	1.5 GHz	LVDS	3.3V
XPL736165.000000I	Renesas晶振	XTAL OSC XO 165.0000MHZ LVDS SMD	XPL	165 MHz	LVDS	3.3V
XPL736200.000000I	Renesas晶振	XTAL OSC XO 200.0000MHZ LVDS SMD	XPL	200 MHz	LVDS	3.3V
XPL726125.000000I	Renesas晶振	XTAL OSC XO 125.0000MHZ LVDS SMD	XPL	125 MHz	LVDS	2.5V
XPL726166.666000I	Renesas晶振	XTAL OSC XO 166.6660MHZ LVDS SMD	XPL	166.666 MHz	LVDS	2.5V
XPL736322.265625I	Renesas晶振	XTAL OSC XO 322.265625MHZ LVDS	XPL	322.265625 MHz	LVDS	3.3V
XPL536800.000000K	Renesas晶振	XTAL OSC XO 800.0000MHZ LVDS SMD	XPL	800 MHz	LVDS	3.3V
XPL735156.250000I	Renesas晶振	XTAL OSC XO 156.2500MHZ LVDS SMD	XPL	156.25 MHz	LVDS	3.3V
XPL735015.000000K	Renesas晶振	XTAL OSC XO 15.0000MHZ LVDS SMD	XPL	15 MHz	LVDS	3.3V
XPL735100.000000K	Renesas晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	XPL	100 MHz	LVDS	3.3V
XPL725200.000000K	Renesas晶振	XTAL OSC XO 200.0000MHZ LVDS SMD	XPL	200 MHz	LVDS	2.5V
XPL735025.000000K	Renesas晶振	XTAL OSC XO 25.0000MHZ LVDS SMD	XPL	25 MHz	LVDS	3.3V
XPL735153.600000K	Renesas晶振	XTAL OSC XO 153.6000MHZ LVDS SMD	XPL	153.6 MHz	LVDS	3.3V
XPL735208.125000K	Renesas晶振	XTAL OSC XO 208.1250MHZ LVDS SMD	XPL	208.125 MHz	LVDS	3.3V
XPL536078.125000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	78.125 MHz	LVDS	3.3V
XPL536250.000000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	250 MHz	LVDS	3.3V
XPL536150.000000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	150 MHz	LVDS	3.3V
XPL536125.000000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	125 MHz	LVDS	3.3V
XPL536156.250000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPL	156.25 MHz	LVDS	3.3V
XPL336016.800000I	Renesas晶振	XTAL OSC XO 16.8000MHZ LVDS SMD	XPL	16.8 MHz	LVDS	3.3V
XPL316102.400000I	Renesas晶振	XTAL OSC XO 102.4000MHZ LVDS SMD	XPL	102.4 MHz	LVDS	1.8V
XPL336150.000000I	Renesas晶振	XTAL OSC XO 150.0000MHZ LVDS SMD	XPL	150 MHz	LVDS	3.3V
XPL326125.000000I	Renesas晶振	XTAL OSC XO 125.0000MHZ LVDS SMD	XPL	125 MHz	LVDS	2.5V
XPL336050.000000I	Renesas晶振	XTAL OSC XO 50.0000MHZ LVDS SMD	XPL	50 MHz	LVDS	3.3V
XPL326100.000000I	Renesas晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	XPL	100 MHz	LVDS	2.5V
XPL316625.000000I	Renesas晶振	XTAL OSC XO 625.0000MHZ LVDS SMD	XPL	625 MHz	LVDS	1.8V
XPL526100.000000I	Renesas晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	XPL	100 MHz	LVDS	2.5V
XPL726100.000000I	Renesas晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	XPL	100 MHz	LVDS	2.5V
XPL316100.000000I	Renesas晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	XPL	100 MHz	LVDS	1.8V
XPL336333.330000I	Renesas晶振	XTAL OSC XO 333.3300MHZ LVDS SMD	XPL	333.33 MHz	LVDS	3.3V
XPL716156.250000I	Renesas晶振	XTAL OSC XO 156.2500MHZ LVDS SMD	XPL	156.25 MHz	LVDS	1.8V
