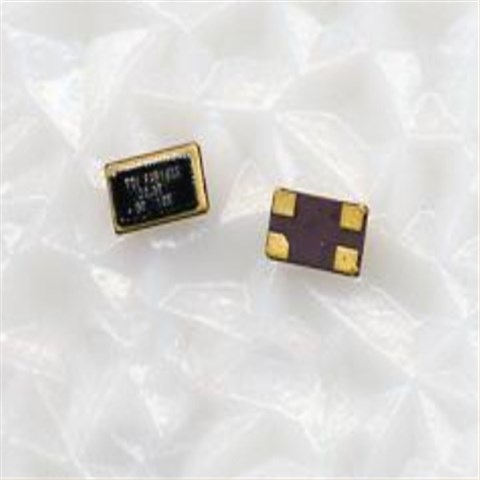

C3水晶振动子,美国PDI小体积晶振,3225mm晶体谐振器,美国进口晶振,PDI无源晶振,3225mm晶体,石英晶体谐振器,轻薄型晶振,贴片石英晶振,贴片晶振,尺寸3.2x2.5mm,频率范围12~50MHZ,低成本晶振,无铅环保晶振,高性能晶振,高精度晶振,智能语音晶振,数字视频晶振,通信设备晶振,寻呼机晶振.
C3水晶振动子,美国PDI小体积晶振,3225mm晶体谐振器特点:
低成本,Quartz crystal非常适合高密度曲面
安装•可使用无铅
支持自定义选项

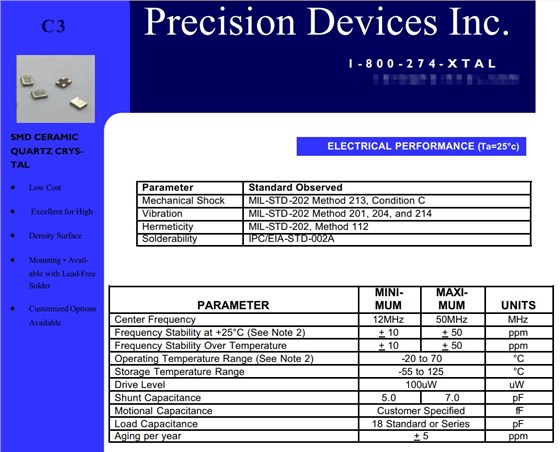

C3水晶振动子,美国PDI小体积晶振,3225mm晶体谐振器 参数表
| PARAMETER |
MINI- MUM |
MAXI- MUM |
UNITS | |||||
| Center Frequency | 12MHz | 50MHz | MHz | |||||
| Frequency Stability at +25°C (See Note 2) | +10 | + 50 | ppm | |||||
| Frequency Stability Over Temperature | +10 | +50 | ppm | |||||
| Operating Temperature Range (See Note 2) | -20 to 70 | °C | ||||||
| Storage Temperature Range | -55 to 125 | °C | ||||||
| Drive Level | 100uW | uW | ||||||
| Shunt Capacitance | 5.0 | 7.0 | pF | |||||
| Motional Capacitance | Customer Specified | fF | ||||||
| Load Capacitance | 18 Standard or Series | pF | ||||||
| Aging per year | +5 | ppm | ||||||

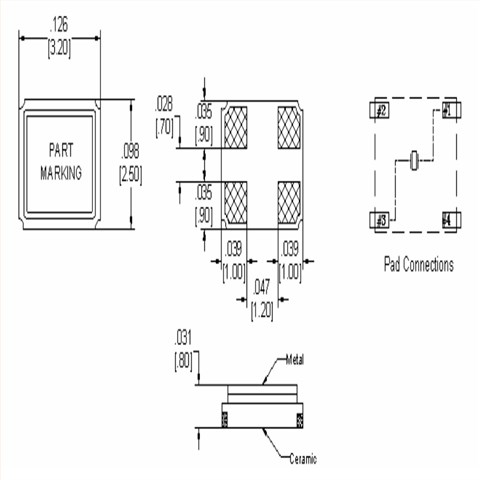

C3水晶振动子,美国PDI小体积晶振,3225mm晶体谐振器 尺寸图
