FY7HCJE12.288-T1,有源晶振,FOX电压晶振,晶体振荡器,车载晶振,数码晶振,石英贴片晶振,六脚贴片晶振,无人机晶振,超薄晶振,带电压晶振,3.3V晶振,FY7H晶振,高频晶振,发射塔晶振,移动通讯设备晶振,卫星晶振,具有良好的抗撞击性,在运输过程中或正常摔落都不会影响到其性能,导热性,环保晶振,耐环境晶振

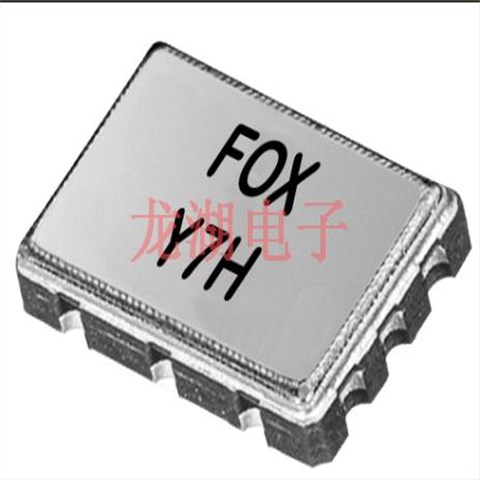

FY7HCJE12.288-T1,有源晶振,FOX电压晶振,晶体振荡器
原厂编码
FY7HCHM12.288-T1
频率
12.288MHz
厂家
FOX晶振
型号
FY7H
频率偏差
±50ppm
电压
3.3V
工作温度
-10°C至70°C

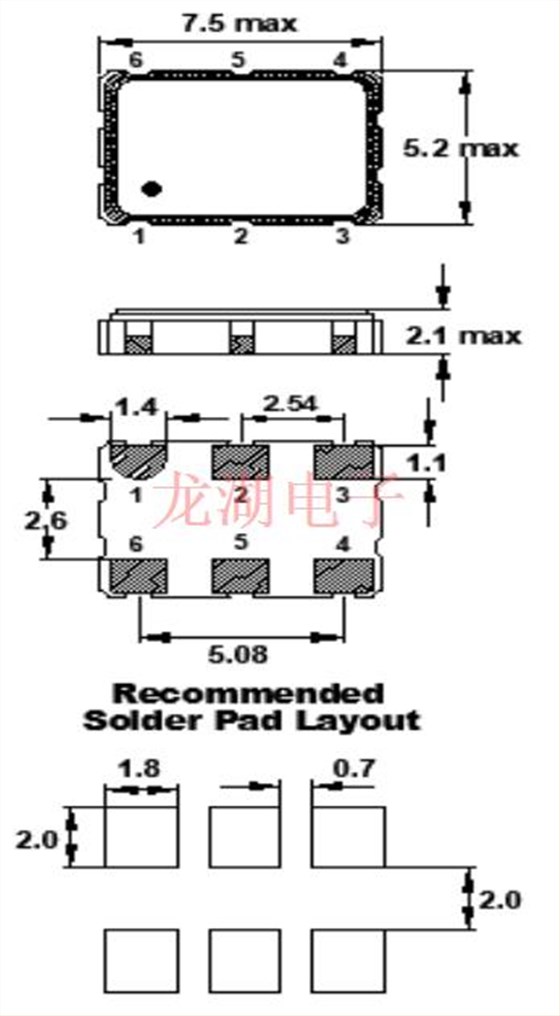

尺寸
7.5*5.2mm
FY7HCJE12.288-T1,有源晶振,FOX电压晶振,晶体振荡器
物料编码 | 品牌 | 型号 | 频率 | 电压 | 频率偏差 |
FO7HSCDM12.0-T1 | FOX晶振 | FO7HS | 12 MHz | 3.3V | ±25ppm |
FO7HSCDM16.664-T1 | FOX晶振 | FO7HS | 16.664 MHz | 3.3V | ±25ppm |
FO7HSCDM20.0-T2 | FOX晶振 | FO7HS | 20 MHz | 3.3V | ±25ppm |
FO7HSCDM50.022-T1 | FOX晶振 | FO7HS | 50.022 MHz | 3.3V | ±25ppm |
FO7HSCDM60.0-T1 | FOX晶振 | FO7HS | 60 MHz | 3.3V | ±25ppm |
FO7LDCBM125.0 | FOX晶振 | FO7LD | 125 MHz | 3.3V | ±25ppm |
FO7LSCBE100.0-T2 | FOX晶振 | FO7LS | 100 MHz | 3.3V | ±100ppm |
FO7PSBBE156.25-T2 | FOX晶振 | FO7PS | 156.25 MHz | 3.3V | ±50ppm |
FO7PUBBM40.0 | FOX晶振 | FO7PU | 40 MHz | 3.3V | ±50ppm |
FO7SLCBM25.0 | FOX晶振 | FO7SL | 25 MHz | 3.3V | ±50ppm |
FS5BCDM16.0 | FOX晶振 | FS5BC | 16 MHz | 3.3V | ±1ppm |
FS5SCDM33.0 | FOX晶振 | FS5SC | 33 MHz | 3.3V | ±1ppm |
FS7BCBM25.0 | FOX晶振 | FS7BC | 25 MHz | 3.3V | ±0.5ppm |
FS7SCBM160.0 | FOX晶振 | FS7SC | 16 MHz | 3.3V | ±0.5ppm |
FT2CVBPM25.0-T3 | FOX晶振 | FT2CV | 25 MHz | 3.3V | ±2.5ppm |
FT3ANBSK40.0-T3 | FOX晶振 | FT3AN | 40 MHz | 3.3V | ±1.5ppm |
FT3AVBRK16.384-T3 | FOX晶振 | FT3AV | 16.384 MHz | 3.3V | ±2.0ppm |
FT3CVBRM40.0-T3 | FOX晶振 | FT3CV | 40 MHz | 3.3V | ±2.0ppm |
FT3GNBUK26.0-T1 | FOX晶振 | FT3GN | 26 MHz | 3.3V | ±.5ppm |
FT3GNBUK26.0-T3 | FOX晶振 | FT3GN | 26 MHz | 3.3V | ±.5ppm |
FT3GVBUK32.0 | FOX晶振 | FT3GV | 32 MHz | 3.3V | ±0.5ppm |
FT3HNBPK10.0-T1 | FOX晶振 | FT3HN | 10 MHz | 3.3V | ±2.5ppm |
FT3HNBPK12.0-T1 | FOX晶振 | FT3HN | 12 MHz | 3.3V | ±2.5ppm |
