5032mm四脚石英晶体,PDI物联网晶振,C5高质量晶振特点:

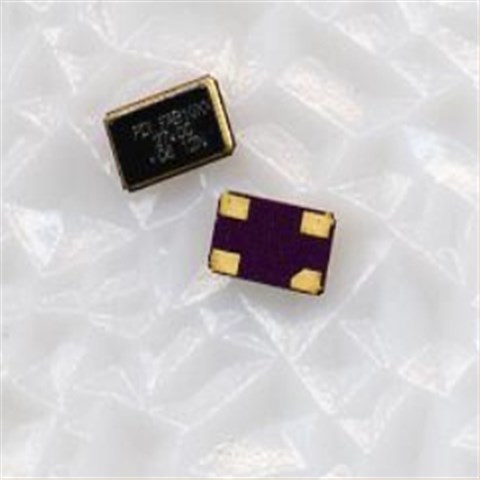

陶瓷4垫片石英晶体
C5的成本很低,小尺寸贴片晶体
用于紧身板应用。
符合RoHS无铅

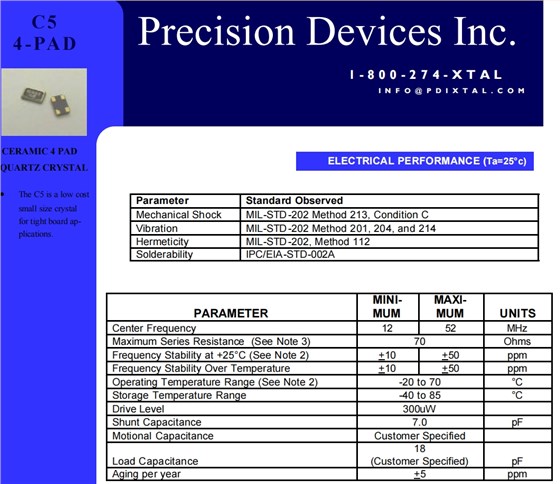

5032mm四脚石英晶体,PDI物联网晶振,C5高质量晶振 参数表
| PARAMETER |
MINI- MUM |
MAXI- MUM |
UNITS | |||||
| Center Frequency | 12 | 52 | MHz | |||||
| Maximum Series Resistance(See Note 3) | 70 | Ohms | ||||||
| Frequency Stability at +25°C (See Note 2) | +10 | +50 | ppm | |||||
| Frequency Stability Over Temperature | +10 | +50 | ppm | |||||
| Operating Temperature Range (See Note 2) | -20 to 70 | °C | ||||||
| Storage Temperature Range | -40 to 85 | °C | ||||||
| Drive Level | 300uW | |||||||
| Shunt Capacitance | 7.0 | pF | ||||||
| Motional Capacitance | Customer Specified | |||||||
| Load Capacitance |
18 (Customer Specified) |
pF | ||||||
| Aging per year | +5 | ppm | ||||||

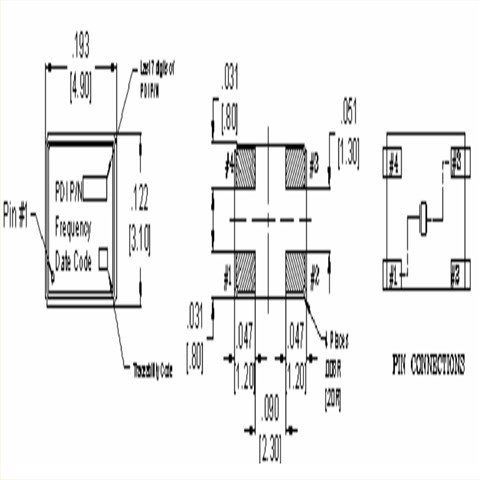

5032mm四脚石英晶体,PDI物联网晶振,C5高质量晶振 尺寸图
