Fortiming富通晶振,XCB75-10M000-1A20D20,10MHZ,7050mm,美国进口晶振,美国富通晶体,石英贴片晶振,10MHZ石英晶体,四脚贴片晶振,7050mm微型晶振,水晶振动子,石英晶体谐振器,尺寸7.0×5.0mm,频率10MHZ,负载20pF,无铅晶振,低频晶振,低损耗晶振,高精度晶振,无线局域网晶振,寻呼机晶振,可视化电话晶振,移动通信晶振,蓝牙晶振.

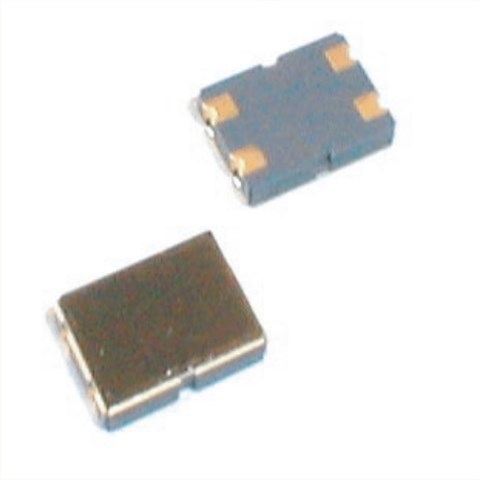

Fortiming富通晶振,XCB75-10M000-1A20D20,10MHZ,7050mm特点:

符合RoHS（无铅），重要低频范围石英环保晶振

AT切割晶体，真空密封，具有优异的老化性能，扩展的温度范围

行业标准占地面积，紧凑尺寸（7x 5mm），最大高度1.3mm

卓越的可焊性

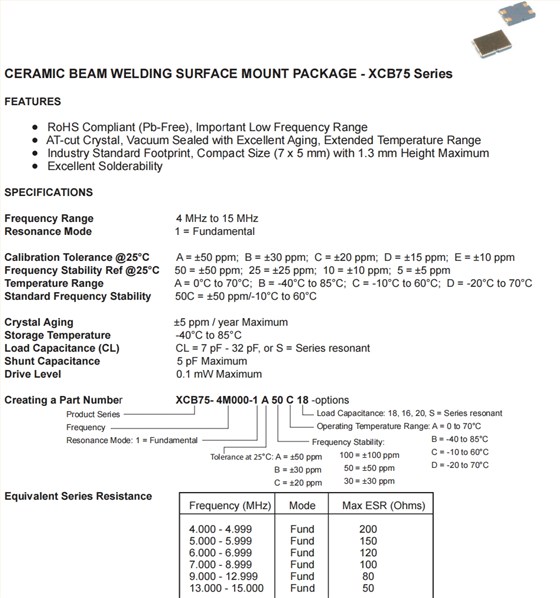

Fortiming富通晶振,XCB75-10M000-1A20D20,10MHZ,7050mm 参数表

Frequency Range					10 MHz
Resonance Mode					1 = Fundamental
Calibration Tolerance @25°C					A = ±50 ppm;B = ±30 ppm;C = ±20 ppm;D = ±15 ppm;E = ±10 ppm
Frequency Stability Ref @25°C					50 = ±50 ppm;25 = ±25 ppm;10 = ±10 ppm;5 = ±5 ppm
Temperature Range					A = 0°C to 70°C;B = -40°C to 85°C;C = -10°C to 60°C;D = -20°C to 70°C
Standard Frequency Stability					50C = ±50 ppm/-10°C to 60°C
Crystal Aging					±5 ppm / year Maximum
Storage Temperature					-40°C to 85°C
Load Capacitance (CL)					CL = 7 pF - 32 pF, or S = Series resonant
Shunt Capacitance					5 pF Maximum
Drive Level					0.1 mW Maximum

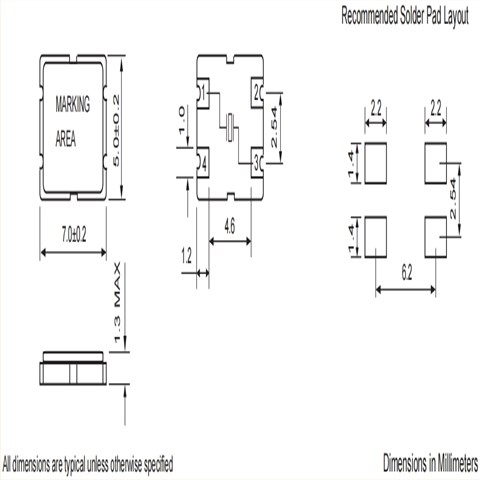

Fortiming富通晶振,XCB75-10M000-1A20D20,10MHZ,7050mm 尺寸图
