CPPLC5L-A5BP-125.0TS,125MHz,5032mm,Cardinal医疗设备晶振

CPPLC5L-A5BP-125.0TS,125MHz,5032mm,Cardinal医疗设备晶振CPPLC5L-A5BP-125.0TS,125MHz,5032mm,Cardinal医疗设备晶振

产品简介

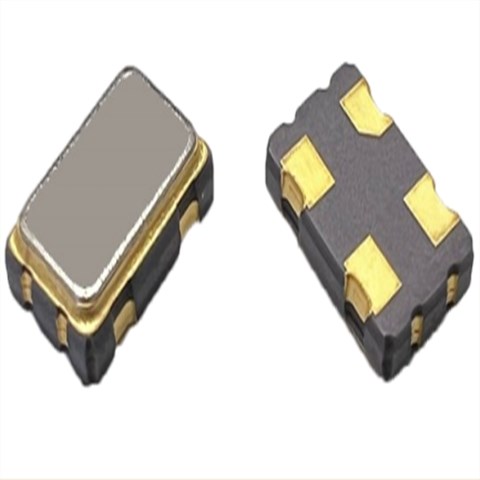

CPPLC5L-A5BP-125.0TS,125MHz,5032mm,Cardinal医疗设备晶振美国进口晶振,Cardinal卡迪纳尔晶振,型号:CPPL5系列,编码为:CPPLC5L-A5BP-125.0TS,电压:3.3V,工作温度范围:-20℃至+70℃,频率稳定性:±50ppm,频率为:125MHz,CMOS输出晶振,尺寸为:5.0x3.2x1.2mm表面贴装,四脚贴片晶振,石英晶振,有源晶振,5032晶振,石英晶体振荡器,时钟振荡器应用程序:驱动A/D,D/As,FPGAs,数字视频,以太网,GbE,医疗设备,存储区域网络,COTS,宽带接入,SONET/SDH/DWDM,测试和测量。

产品详情

LH-1

CTS-1

CPPLC5L-A5BP-125.0TS,125MHz,5032mm,Cardinal医疗设备晶振美国进口晶振,Cardinal卡迪纳尔晶振,型号:CPPL5系列,编码为:CPPLC5L-A5BP-125.0TS,电压:3.3V,工作温度范围:-20℃至+70℃,频率稳定性:±50ppm,频率为:125MHz,CMOS输出晶振,尺寸为:5.0x3.2x1.2mm表面贴装,四脚贴片晶振,石英晶振,有源晶振,5032晶振,石英晶体振荡器,时钟振荡器应用程序:驱动A/D,D/As,FPGAs,数字视频,以太网,GbE,医疗设备,存储区域网络,COTS,宽带接入,SONET/SDH/DWDM,测试和测量。

CPPLC5L-A5BP-125.0TS,125MHz,5032mm,Cardinal医疗设备晶振,产品特点:

•CMOS输出(将与TTL设备接口)

•启用/禁用功能(可选待机功能)

•3.3V或5.0V标称电源电压

•尺寸:5x3.2mm石英晶体振荡器

•工厂编程

LH-2

CTS-2

CPPLC5L-A5BP-125.0TS,125MHz,5032mm,Cardinal医疗设备晶振,参数表

Parameter Min Typ Max Unit Condition
Frequency Range 125 -
MHz (3.3V:1-100MHz)
Frequency Stability2 ±25 - ±100 ppm For all supply voltages, load changes, aging for 1 year at 25°C ± 2°C,
shock, vibration and temperatures.
Operating Temperature Range options2 0
-20
-40
-
-
-
+70
+70
+85
°C
Supply Voltage1, 2VDD 2.97 - 5.5 V See Part Number options on page 2
Supply CurrentIDD(No Load) - - 45
25
mA VDD= 5.0V
VDD= 3.3V
Output Type CMOS Cload=50pF max, VDD= 4.5~5.5V, =66MHz
Cload=25pF max, VDD= 4.5~5.5V, >66MHz
Cload=30pF max, VDD= 2.97~3.63V, =40MHz
Cload=15pF max, VDD= 2.97~3.63V, >40MHz
TTL Cload = 50pF max; VDD= 4.5~5.5V, = 40MHz
Duty Cycle - - - % See Page 2

VDD= 4.5~5.5V

All voltages

See Load Circuit and waveform page
Output VOH(TTL Level)
(CMOS Level)
2.4 - - V
VDD- 0.4 V
Output VOL - - 0.4 V
Output TRISEand TFALL - - - ns See page 2
Startup Time - - 2 ms Time for output to reach specified frequency
VDISABLE - - 0.8
0.2VDD
V VDD= 4.5~5.5V
VDD= 2.97~3.63V

VDD= 4.5~5.5V
VENABLE 2.0
0.7VDD
-
Enable Time - - 2 ms
Disable Time - Pin 1 low to Output Hi-Z
-
T/2 T+10 ns T = Frequency Period
Disable Current -
-
-
0.4
-
-
mA Enable/Disable: Pad 1 low, output disabled; See above Supply Current
Standby option: Pad 1 low, output disabled, oscillator shutdown
RMS Period Jitter - 8 11 ps
Period Jitter, Pk-Pk 65
65
99
80
ps >1,000,000 samples
= 33MHz
> 33MHz
Storage Temperature Range -55 - +125 °C

LH-3

ECS-1

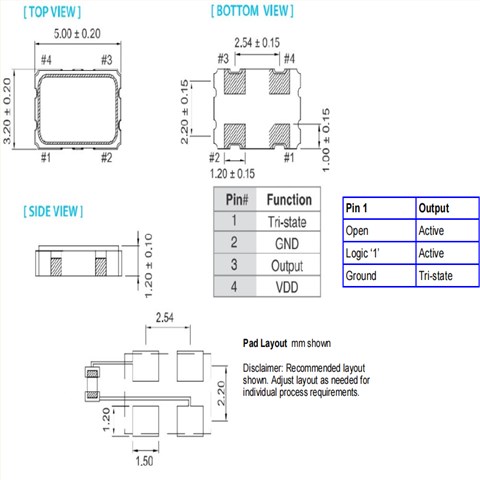

CPPLC5L-A5BP-125.0TS,125MHz,5032mm,Cardinal医疗设备晶振,尺寸图

CPPL5尺寸

CPPL5规格

原厂编码 品牌 系列 频率 Description描述
CPPLC7-A7BP-40.68TS Cardinal晶振 FIPO™ CPPL 40.68MHz OSC XO 40.68MHZ CMOS SMD
CPPLC5-A7BR-19.6608PD Cardinal晶振 FIPO™ CPPL 19.6608MHz OSC XO 19.6608MHZ CMOS SMD
CPPLC7-A7BR-27.12TS Cardinal晶振 FIPO™ CPPL 27.12MHz OSC XO 27.12MHZ CMOS SMD
CPPLC5-A7BR-25.6TS Cardinal晶振 FIPO™ CPPL 25.6MHz OSC XO 25.60MHZ CMOS SMD
CPPLC7-A7BR-49.152PD Cardinal晶振 FIPO™ CPPL 49.152MHz OSC XO 49.152MHZ CMOS SMD
CPPLC5L-A5B6-66.666TS Cardinal晶振 FIPO™ CPPL 66.666MHz OSC XO 66.666MHZ CMOS SMD
CPPLC7-BR-28.63636TS Cardinal晶振 FIPO™ CPPL 28.63636MHz OSC XO 28.63636MHZ CMOS SMD
CPPLC5L-A5BP-125.0TS Cardinal晶振 FIPO™ CPPL 125MHz OSC XO 125.000MHZ CMOS SMD
CPPLC5L-A7BP-28.9767TS Cardinal晶振 FIPO™ CPPL 28.9767MHz OSC XO 28.9767MHZ CMOS SMD
CPPLC7-A7BP-110.0PD Cardinal晶振 FIPO™ CPPL 110MHz OSC XO 110.000MHZ CMOS SMD
CPPLC7-A7BP-7.5TS Cardinal晶振 FIPO™ CPPL 7.5MHz OSC XO 7.50MHZ CMOS SMD
CPPLC7-BR-28.6363TS Cardinal晶振 FIPO™ CPPL 28.6363MHz OSC XO 28.6363MHZ CMOS SMD
CPPLC5L-A7BR-100.0TS Cardinal晶振 FIPO™ CPPL 100MHz OSC XO 100.000MHZ CMOS SMD
CPPLC5L-A7BR-27.0TS Cardinal晶振 FIPO™ CPPL 27MHz OSC XO 27.000MHZ CMOS SMD
CPPLC5L-A7BR-34.4064TS Cardinal晶振 FIPO™ CPPL 34.4064MHz OSC XO 34.4064MHZ CMOS SMD
CPPLC5LT-A5B6-120.0TS Cardinal晶振 FIPO™ CPPL 120MHz OSC XO 120.000MHZ CMOS SMD
CPPLC5LZ-A7BP-20.0TS Cardinal晶振 FIPO™ CPPL 20MHz OSC XO 20.000MHZ CMOS SMD
CPPLC5LZ-A7BR-16.0TS Cardinal晶振 FIPO™ CPPL 16MHz OSC XO 16.000MHZ CMOS SMD
CPPLC7-A5BP-64.0TS Cardinal晶振 FIPO™ CPPL 64MHz OSC XO 64.000MHZ CMOS SMD
CPPLC7-A7B6-15.62TS Cardinal晶振 FIPO™ CPPL 15.62MHz OSC XO 15.62MHZ CMOS SMD
CPPLC7-A7B6-18.432TS Cardinal晶振 FIPO™ CPPL 18.432MHz OSC XO 18.432MHZ CMOS SMD
CPPLC7-A7B6-20.0TS Cardinal晶振 FIPO™ CPPL 20MHz OSC XO 20.000MHZ CMOS SMD
CPPLC7-A7B6-6.5TS Cardinal晶振 FIPO™ CPPL 6.5MHz OSC XO 6.50MHZ CMOS SMD
CPPLC7-A7B6-64.0TS Cardinal晶振 FIPO™ CPPL 64MHz OSC XO 64.000MHZ CMOS SMD
CPPLC5-A7BD-27.0TS Cardinal晶振 FIPO™ CPPL 27MHz OSC XO 27.000MHZ CMOS SMD
CPPLC7-A7BD-12.0TS Cardinal晶振 FIPO™ CPPL 12MHz OSC XO 12.000MHZ CMOS SMD
CPPLC7-A7BD-4.9152TS Cardinal晶振 FIPO™ CPPL 4.9152MHz OSC XO 4.9152MHZ CMOS SMD
