FMXMC5S118HFB-25.000000M-CM,FMI谐振器,FMXMC5S晶体,7050mm,25MHZ水晶振动子,石英晶体谐振器,轻薄型晶振,四脚无源晶振,7050mm贴片晶振,SMD晶振,石英贴片晶振,石英晶体,尺寸7.0×5.0mm,频率25MHZ,环保晶振,高精度晶振,高可靠晶振,高性能晶振,低功耗晶振,寻呼机晶振,数字音频晶振,小型设备晶振,通信晶振,智能音响晶振,便携式设备晶振.

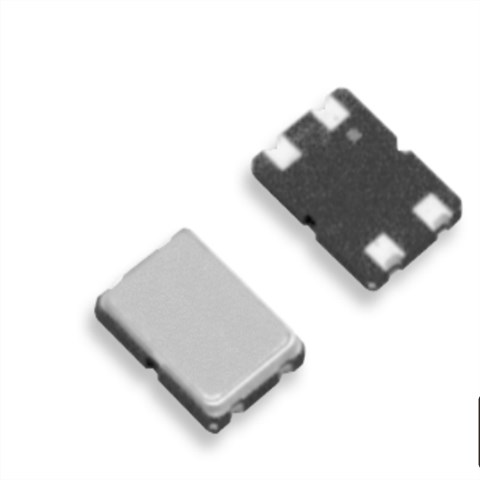

FMXMC5S118HFB-25.000000M-CM,FMI谐振器,FMXMC5S晶体,7050mm特点:
表面贴装陶瓷组件。
5070晶振微型4焊盘/超薄
高可靠性
紧密稳定性

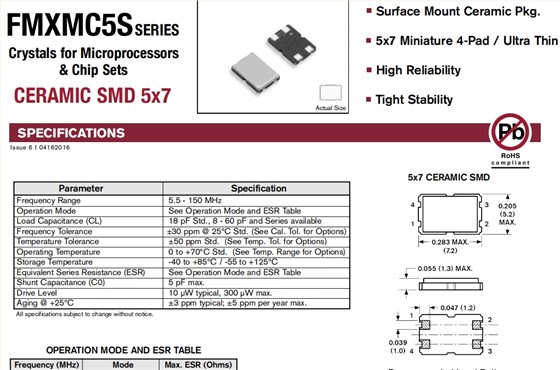

FMXMC5S118HFB-25.000000M-CM,FMI谐振器,FMXMC5S晶体,7050mm 参数表
| Parameter | Specification | ||||||||||||||||
| Frequency Range | 25 MHz | ||||||||||||||||
| Operation Mode | See Operation Mode and ESR Table | ||||||||||||||||
| Load Capacitance (CL) | 18 pF Std., 8 - 60 pF and Series available | ||||||||||||||||
| Frequency Tolerance | ±30 ppm @ 25°C Std. (See Cal. Tol. for Options) | ||||||||||||||||
| Temperature Tolerance | ±50 ppm Std.(See Temp. Tol. for Options) | ||||||||||||||||
| Operating Temperature | 0 to +70°C Std.(See Temp. Range for Options) | ||||||||||||||||
| Storage Temperature | -40 to +85°C / -55 to +125°C | ||||||||||||||||
| Equivalent Series Resistance (ESR) | See Operation Mode and ESR Table | ||||||||||||||||
| Shunt Capacitance (C0) | 5 pF max. | ||||||||||||||||
| Drive Level | 10 µW typical, 300 µW max. | ||||||||||||||||
| Aging @ +25°C | ±3 ppm typical; ±5 ppm per year max. | ||||||||||||||||

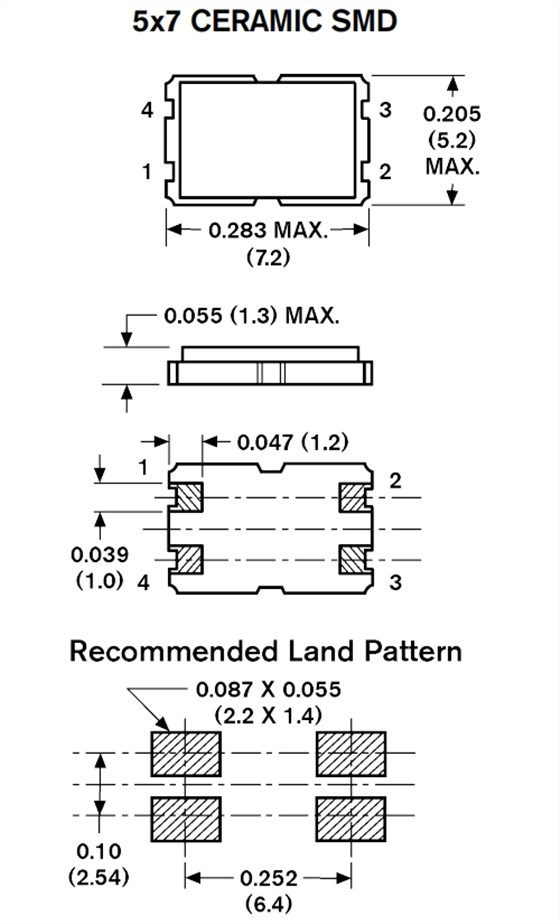

FMXMC5S118HFB-25.000000M-CM,FMI谐振器,FMXMC5S晶体,7050mm 尺寸图
