LFXTAL053866REEL,48MHz,IQD进口晶振,CFPX-180

LFXTAL053866REEL,48MHz,IQD进口晶振,CFPX-180LFXTAL053866REEL,48MHz,IQD进口晶振,CFPX-180

产品简介

        LFXTAL053866REEL,48MHz,IQD进口晶振,CFPX-180,环保晶振,高频晶振,数码产品晶振,计时产品晶振,mp4晶振,出色的抗撞击性使得它在常规的衰落或运输过程中的碰撞都不会影响到其性能,-40到85度的运行温度,高精度高稳定高性能高品质,


产品详情

LH-1Abracon-2

LFXTAL053866REEL,48MHz,IQD进口晶振,CFPX-180,环保晶振,高频晶振,数码产品晶振,计时产品晶振,mp4晶振,出色的抗撞击性使得它在常规的衰落或运输过程中的碰撞都不会影响到其性能,-40到85度的运行温度,高精度高稳定高性能高品质,

LH-2

Abracon-1

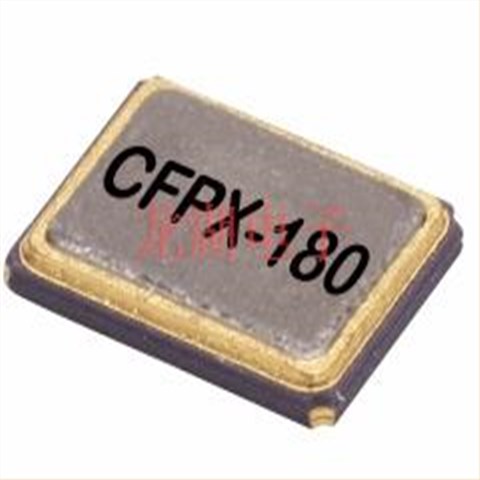

LFXTAL053866REEL,48MHz,IQD进口晶振,CFPX-180

原厂编码 LFXTAL053866REEL
频率 48MHz
厂家 IQD晶振
型号 CFPX-180
频率偏差 ±20ppm
负载电容 18pF
工作温度 -40°C至85°C

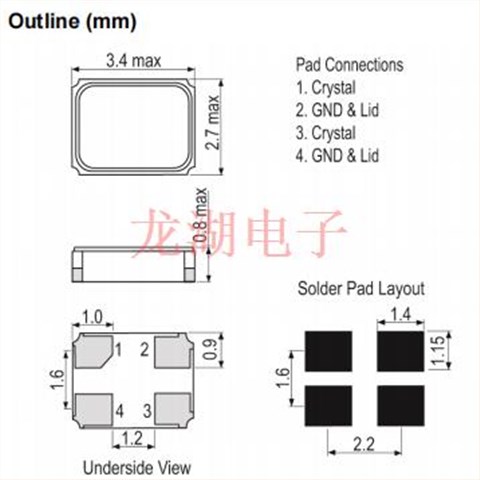

尺寸 3.2*2.5mm

LH-3

ECS-1

LFXTAL053866REEL,48MHz,IQD进口晶振,CFPX-180

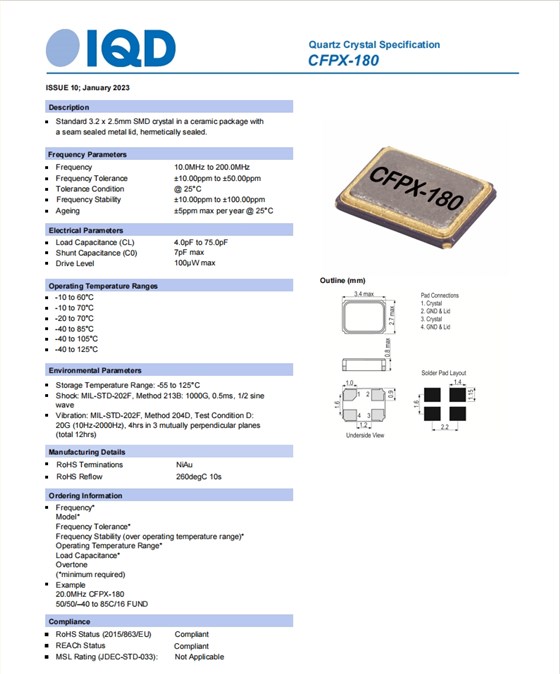

CFPX-180.3225

CFPX-180.3225.1

Mfr Part # Mfr Series Frequency Frequency Tolerance Load Capacitance
LFXTAL003058REEL IQD Crystal HC49/4HSMX 3.579545 MHz ±30ppm 16pF
LFXTAL015023REEL IQD Crystal HC49/4HSMX 18.432 MHz ±30ppm 30pF
LFXTAL003260REEL IQD Crystal HC49/4HSMX 3.6864 MHz ±30ppm 16pF
LFXTAL003210REEL IQD Crystal HC49/4HSMX 12 MHz ±30ppm 16pF
LFXTAL010595REEL IQD Crystal HC49/4HSMX 25 MHz ±30ppm 16pF
LFXTAL003519REEL IQD Crystal HC49/4HSMX 11.0592 MHz ±30ppm 16pF
LFXTAL035293REEL IQD Crystal HC49/4HSMX 12 MHz ±30ppm 16pF
LFXTAL028430REEL IQD Crystal HC49/4HSMX 3.2768 MHz ±30ppm 18pF
LFXTAL003071REEL IQD Crystal HC49/4HSMX 4 MHz ±30ppm 16pF
LFXTAL018153REEL IQD Crystal HC49/4HSMX 4.9152 MHz ±30ppm 16pF
LFXTAL026908REEL IQD Crystal HC49/4HSMX 14.7456 MHz ±20ppm 16pF
LFXTAL036034REEL IQD Crystal HC49/4HSMX 16 MHz ±30ppm 16pF
LFXTAL026902REEL IQD Crystal HC49/4HSMX 8.192 MHz ±20ppm 16pF
LFXTAL003334REEL IQD Crystal HC49/4HSMX 7.3728 MHz ±30ppm 16pF
LFXTAL026911REEL IQD Crystal HC49/4HSMX 18.432 MHz ±20ppm 16pF
LFXTAL054555REEL IQD Crystal HC49/4HSMX 25 MHz ±20ppm 20pF
LFXTAL059611RL3K IQD Crystal CFPX-180 13.56 MHz ±20ppm 18pF
LFXTAL054208RL3K IQD Crystal CFPX-180 12 MHz ±10ppm 10pF
LFXTAL035265REEL IQD Crystal CFPX-180 20 MHz ±50ppm 16pF
LFXTAL070868REEL IQD Crystal CFPX-180 12 MHz ±10ppm 18pF
LFXTAL055951REEL IQD Crystal CFPX-180 16 MHz ±30ppm 18pF
LFXTAL035266REEL IQD Crystal CFPX-180 24 MHz ±50ppm 16pF
LFXTAL063321REEL IQD Crystal CFPX-180 25 MHz ±50ppm 18pF
LFXTAL059643REEL IQD Crystal CFPX-180 26 MHz ±20ppm 18pF
LFXTAL059815REEL IQD Crystal CFPX-180 27.12 MHz ±50ppm 10pF
LFXTAL053866REEL IQD Crystal CFPX-180 48 MHz ±20ppm 18pF
LFXTAL058124REEL IQD Crystal CFPX-180 24 MHz ±20ppm 18pF
LFXTAL051068REEL IQD Crystal CFPX-180 25 MHz ±50ppm 9pF
LFXTAL055962REEL IQD Crystal CFPX-180 30 MHz ±10ppm 12pF
LFXTAL071177REEL IQD Crystal CFPX-180 24 MHz ±10ppm 9pF
LFXTAL083408RL3K IQD Crystal CFPX-180 25 MHz ±20ppm 12pF
