C6两脚陶瓷晶振,6035mm小封装晶体,PDI欧美进口晶振,PDI无源晶振,无源SMD晶振,陶瓷谐振器,两脚贴片晶振,SMD crystal,无源晶体,轻薄型晶振,尺寸6.0x3.5mm,频率范围8~200MHZ,高频晶振,低成本晶振,低损耗晶振,高精度晶振,智能音响晶振,笔记本电脑晶振,影音系统晶振,娱乐设备晶振,便携式设备晶振,数码相机晶振.
C6两脚陶瓷晶振,6035mm小封装晶体,PDI欧美进口晶振特点:
陶瓷谐振器2衬垫石英水晶
C6的成本很低
小尺寸晶体
用于紧身板应用.

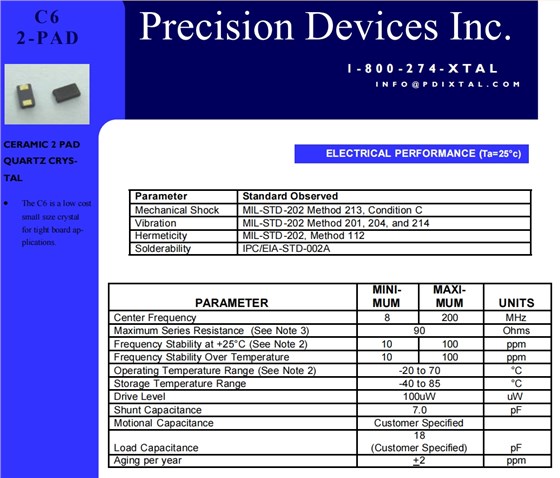

C6两脚陶瓷晶振,6035mm小封装晶体,PDI欧美进口晶振 参数表
| PARAMETER |
MINI- MUM |
MAXI- MUM |
UNITS | |||||
| Center Frequency | 8 | 200 | MHz | |||||
| Maximum Series Resistance(See Note 3) | 90 | Ohms | ||||||
| Frequency Stability at +25°C (See Note 2) | 10 | 100 | ppm | |||||
| Frequency Stability Over Temperature | 10 | 100 | ppm | |||||
| Operating Temperature Range (See Note 2) | -20 to 70 | °C | ||||||
| Storage Temperature Range | -40 to 85 | °C | ||||||
| Drive Level | 100uW | uW | ||||||
| Shunt Capacitance | 7.0 | pF | ||||||
| Motional Capacitance | Customer Specified | |||||||
| Load Capacitance |
18 (Customer Specified) |
pF | ||||||
| Aging per year | +2 | ppm | ||||||

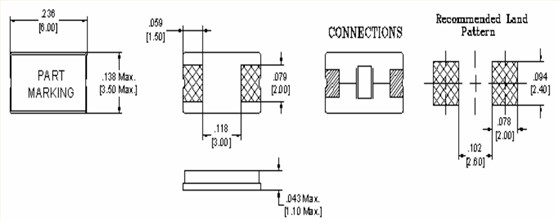

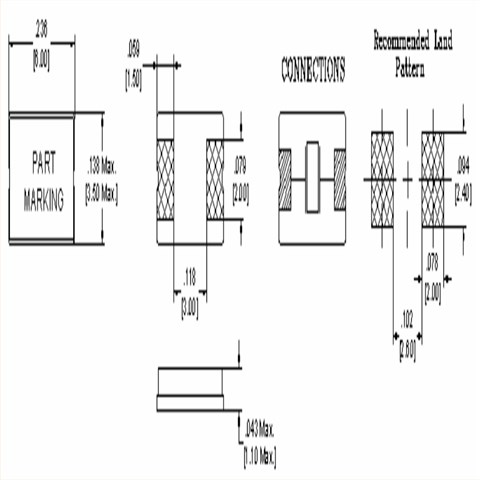

C6两脚陶瓷晶振,6035mm小封装晶体,PDI欧美进口晶振 尺寸图
