FMXMC3S2120FFC-20.000000M-CM,5032mm,FMXMC3S2系列,FMI贴片晶体,美国FMI晶振,陶瓷晶振,20MHZ轻薄型晶振,无源SMD晶体,5032mm两脚贴片晶体,无源晶振,贴片谐振器,尺寸5.0x3.2mm,频率20MHZ,工作温度-40~+85°C,无铅环保晶振,耐高温晶振,高可靠晶振,高性能晶振,低损耗晶振,移动设备晶振,数字视频晶振,测试设备晶振,蜂窝电话晶振,电子设备晶振.

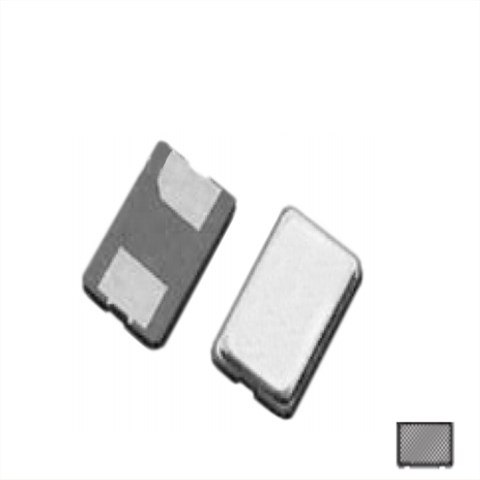

FMXMC3S2120FFC-20.000000M-CM,5032mm,FMXMC3S2系列,FMI贴片晶体特点:
表面贴装陶瓷组件。
Micro 5x3.2，2片/超薄SMD晶振
高可靠性,紧密稳定性.

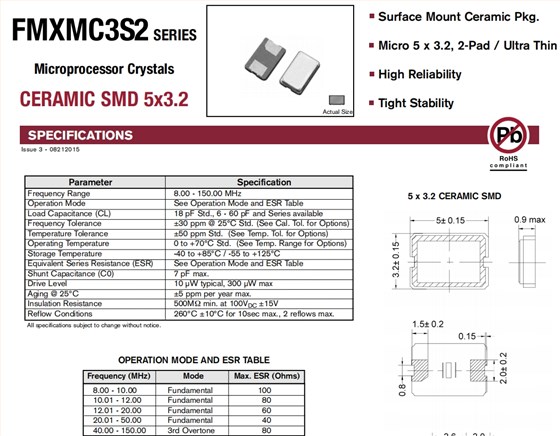

FMXMC3S2120FFC-20.000000M-CM,5032mm,FMXMC3S2系列,FMI贴片晶体 参数表
| Parameter | Specification | |||||||||||||||||||
| Frequency Range | 20.00 MHz | |||||||||||||||||||
| Operation Mode | See Operation Mode and ESR Table | |||||||||||||||||||
| Load Capacitance (CL) | 18 pF Std., 6 - 60 pF and Series available | |||||||||||||||||||
| Frequency Tolerance | ±30 ppm @ 25°C Std. (See Cal. Tol. for Options) | |||||||||||||||||||
| Temperature Tolerance | ±50 ppm Std.(See Temp. Tol. for Options) | |||||||||||||||||||
| Operating Temperature | 0 to +70°C Std.(See Temp. Range for Options) | |||||||||||||||||||
| Storage Temperature | -40 to +85°C / -55 to +125°C | |||||||||||||||||||
| Equivalent Series Resistance (ESR) | See Operation Mode and ESR Table | |||||||||||||||||||
| Shunt Capacitance (C0) | 7 pF max. | |||||||||||||||||||
| Drive Level | 10 µW typical, 300 µW max | |||||||||||||||||||
| Aging @ 25°C | ±5 ppm per year max. | |||||||||||||||||||
| Insulation Resistance | 500MΩ min. at 100VDC±15V | |||||||||||||||||||
| Reflow Conditions | 260°C ±10°C for 10sec max., 2 reflows max. | |||||||||||||||||||

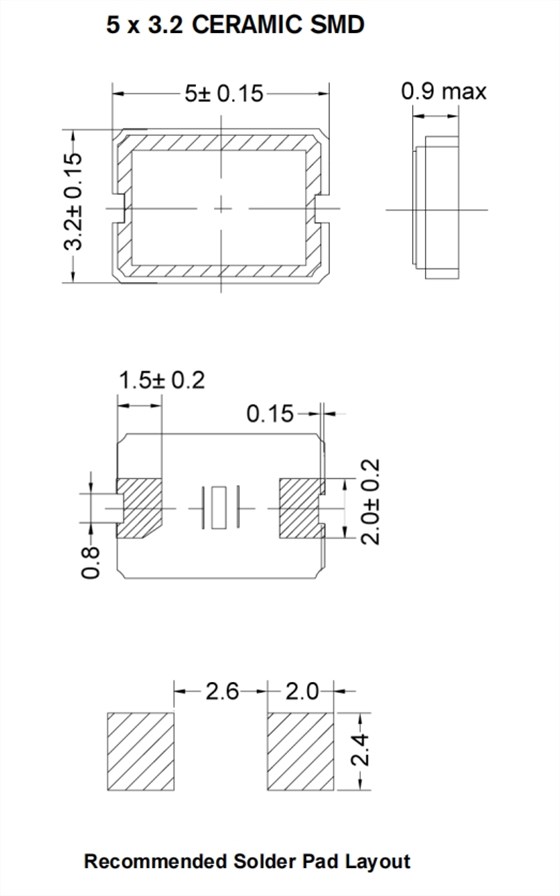

FMXMC3S2120FFC-20.000000M-CM,5032mm,FMXMC3S2系列,FMI贴片晶体 尺寸图
