WC315-32.768KHZ-T,WC315,3215mm,Mmdcomp石英晶振,美国进口晶振,Mmdcomp麦迪康晶振,型号:WC315系列,编码为:WC315-32.768KHZ-T,频率为:32.768KHz,负载:12.5pF,精度:±20ppm,工作温度范围:-40℃至+85℃,小体积晶振尺寸:3.2x1.5x0.9mm,两脚贴片晶振,无源晶振,3215晶振,石英晶体,SMD晶振,石英晶体谐振器。具有超小型,轻薄型,高性能,高品质,耐热及耐环境特点。应用于:移动通讯晶振,钟表电子晶振,仪器仪表设备晶振,无线蓝牙晶振,平板电脑晶振,智能家居晶振,数码电子等应用。
WC315-32.768KHZ-T,WC315,3215mm,Mmdcomp石英晶振,产品特点:
陶瓷SMD音叉晶体
频率:32.768KHz
符合RoHS
提供带卷包装

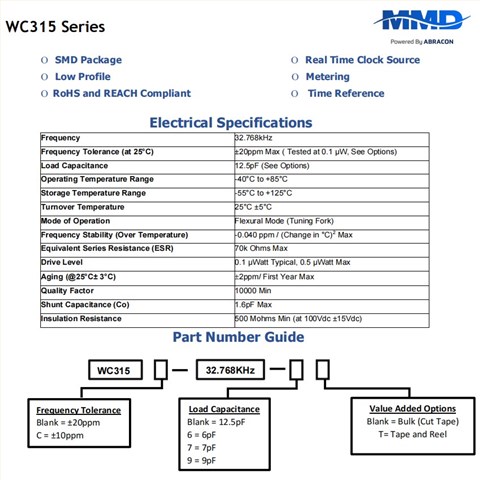

WC315-32.768KHZ-T,WC315,3215mm,Mmdcomp石英晶振,参数表
Frequency
32.768kHz
Frequency Tolerance (at 25°C)
±20ppm Max ( Tested at 0.1 µW, See Options)
Load Capacitance
12.5pF (See Options)
Operating Temperature Range
-40°C to +85°C
Storage Temperature Range
-55°C to +125°C
Turnover Temperature
25°C ±5°C
Mode of Operation
Flexural Mode (Tuning Fork)
Frequency Stability (Over Temperature)
-0.040 ppm / (Change in °C)2Max
Equivalent Series Resistance (ESR)
70k Ohms Max
Drive Level
0.1 µWatt Typical, 0.5 µWatt Max
Aging (@25°C± 3°C)
±2ppm/ First Year Max
Quality Factor
10000 Min
Shunt Capacitance (Co)
1.6pF Max
Insulation Resistance
500 Mohms Min (at 100Vdc ±15Vdc)

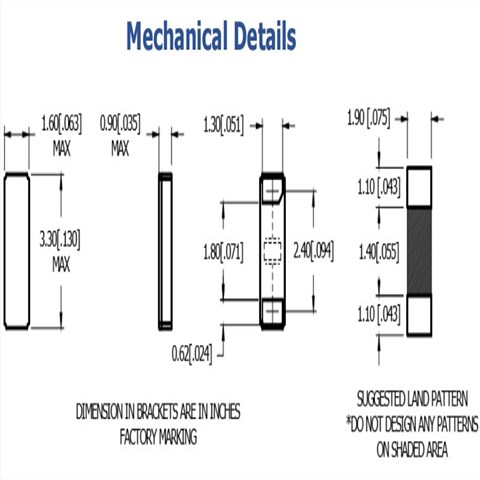

WC315-32.768KHZ-T,WC315,3215mm,Mmdcomp石英晶振,尺寸图
