6035mm,52MHZ,AAV52M000000FLH32H,STD晶体谐振器,美国石英晶体,6032两脚贴片晶振,无源SMD晶振,陶瓷晶振,无源晶振,52MHZ贴片晶振,SMD crystal,水晶振动子,尺寸6.0x3.5mm,频率52MHz,负载32pF,工作温度-20~+70℃,高性能晶振,高精度晶振,低耗能晶振,低老化晶振,耐高温晶振,微处理器晶振,仪器设备晶振,无线网络晶振,视听设备晶振,无线局域网晶振.
6035mm,52MHZ,AAV52M000000FLH32H,STD晶体谐振器特点:
采用薄型封装的谐振器单元
超高的可靠性能，以及稳定性能
符合RoHS标准且无铅

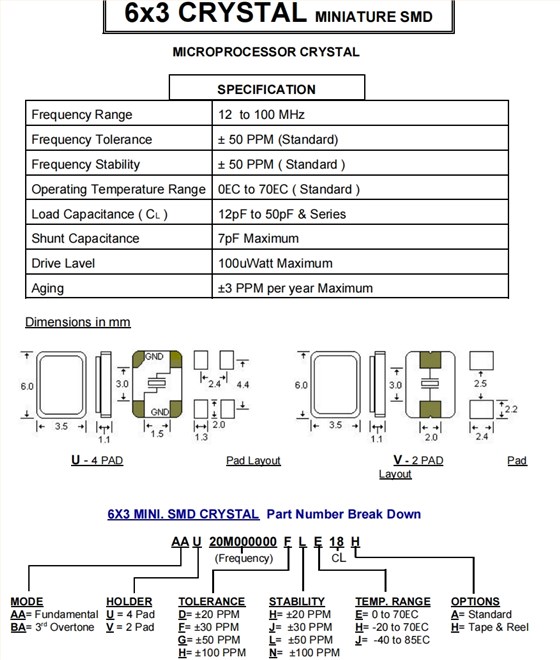

6035mm,52MHZ,AAV52M000000FLH32H,STD晶体谐振器 参数表
| Frequency Range | 52 MHz | |||||||||||
| Frequency Tolerance | ± 50 PPM (Standard) | |||||||||||
| Frequency Stability | ± 50 PPM ( Standard ) | |||||||||||
| Operating Temperature Range | 0EC to 70EC ( Standard ) | |||||||||||
| Load Capacitance ( CL) | 12pF to 50pF & Series | |||||||||||
| Shunt Capacitance | 7pF Maximum | |||||||||||
| Drive Lavel | 100uWatt Maximum | |||||||||||
| Aging | ±3 PPM per year Maximum | |||||||||||

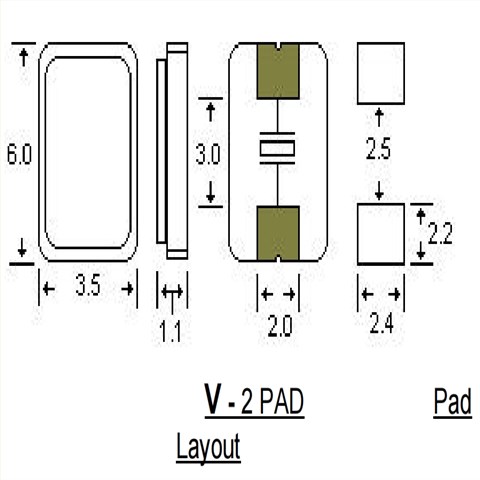

6035mm,52MHZ,AAV52M000000FLH32H,STD晶体谐振器 尺寸图
