Skyworks低功耗振荡器Si515,6G交换机晶振,515CDA8M00000AAGR,尺寸7.0×5.0mm,频率8MHZ,支持输出CMOS,VCXO压控晶振,SMD振荡器,OSC振荡器,压控振荡器,贴片压控晶振,有源压控晶振,有源晶体振荡器,六脚贴片压控振荡器,电信专用压控晶振,7050mm有源晶振,低抖动压控晶振,路由器专用压控晶振,低电压压控晶振,低功耗压控晶振,低抖动压控晶振,数字视频专用压控晶振,高性能压控晶振,低损耗有源晶振,具有超高的可靠性能以及稳定性能。产品常用于低抖动PLL,xDSL,广播视频,电信,交换机/路由器,FPGA/ASIC时钟生成等领域。

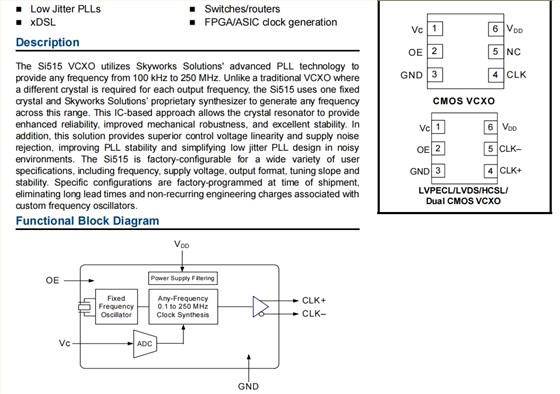

Si515 VCXO晶振利用Skyworks Solutions的先进PLL技术提供从100kHz到250MHz的任何频率。不同于传统的VCXO每个输出频率都需要不同的晶体,Si515使用一个固定的晶体crystal和Skyworks Solutions的专有合成器,可生成任何频率在这个范围内。这种基于IC的方法允许晶体谐振器提供增强的可靠性、改进的机械坚固性和优异的稳定性。Skyworks低功耗振荡器Si515,6G交换机晶振,515CDA8M00000AAGR.
Skyworks低功耗振荡器Si515,6G交换机晶振,515CDA8M00000AAGR 参数表
Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | |||||||||||||||||||
Supply Voltage | VDD | 3.3 V option | 2.97 | 3.3 | 3.63 | V | |||||||||||||||||||
2.5 V option | 2.25 | 2.5 | 2.75 | V | |||||||||||||||||||||
Supply Current | IDD |
CMOS, 100 MHz, single-ended |
— | 24 | 29 | mA | |||||||||||||||||||
LVDS (output enabled) |
— | 22 | 26 | mA | |||||||||||||||||||||
LVPECL (output enabled) |
— | 42 | 46 | mA | |||||||||||||||||||||
HCSL (output enabled) |
— | 44 | 47 | mA | |||||||||||||||||||||
Tristate (output disabled) |
— | — | 22 | mA | |||||||||||||||||||||
OE “1” Setting | VIH | See Note | 0.80 x VDD | — | — | V | |||||||||||||||||||
OE “0” Setting | VIL | See Note | — | — | 0.20 x VDD | V | |||||||||||||||||||
OE Internal Pull-Up/ Pull-Down Resistor* |
RI | — | 45 | — | kΩ | ||||||||||||||||||||
Operating Temperature | TA | –40 | — | 85 | oC |
Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | |||||||||||||||||||
Control Voltage Range | VC | 0.1 x VDD | VDD/2 | 0.9 x VDD | V | ||||||||||||||||||||
Control Voltage Tuning Slope (10 to 90% VDD) |
Kv |
Positive slope, ordering option |
60, 90, 120, 150 | ppm/V | |||||||||||||||||||||
Kv Variation | Kv_var | — | — | ±10 | % | ||||||||||||||||||||
Control Voltage Linearity | LVC | BSL | –5 | ±1 | +5 | % | |||||||||||||||||||
Modulation Bandwidth | BW | — | 10 | — | kHz | ||||||||||||||||||||
Vc Input Impedance | ZVC | — | 100 | — | kΩ |
Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | |||||||||||||||||||
Nominal Frequency | FO | CMOS, Dual CMOS | 0.1 | — | 212.5 | MHz | |||||||||||||||||||
FO | LVDS/LVPECL/HCSL | 0.1 | — | 250 | MHz | ||||||||||||||||||||
Temperature Stability | ST | TA= –40 to +85oC | –20 | — | +20 | ppm | |||||||||||||||||||
Aging | A | Frequency drift over 10 year life | — | — | ±8.5 | ppm | |||||||||||||||||||
Minimum Absolute Pull Range | APR | Ordering option | ±30, ±50,±80, ±100 | ppm | |||||||||||||||||||||
Startup Time | TSU |
Minimum VDDto output fre- quency (FO) within specification |
— | — | 10 | ms | |||||||||||||||||||
Disable Time | TD | FO> 10 MHz | — | — | 5 | µs | |||||||||||||||||||
FO< 10 MHz | 40 | µs | |||||||||||||||||||||||
Enable Time | TE | FO> 10 MHz | — | — | 20 | µs | |||||||||||||||||||
FO< 10 MHz | 60 | µs |

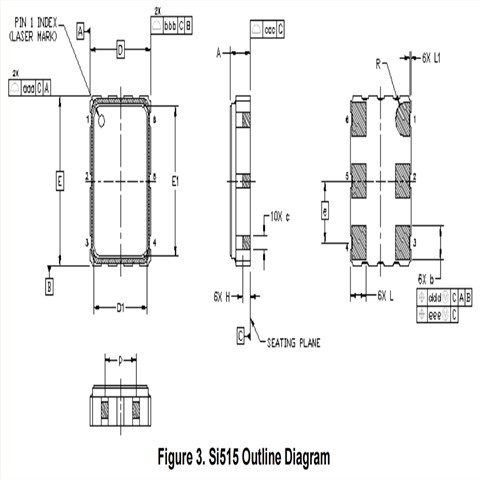

Skyworks低功耗振荡器Si515,6G交换机晶振,515CDA8M00000AAGR 尺寸图

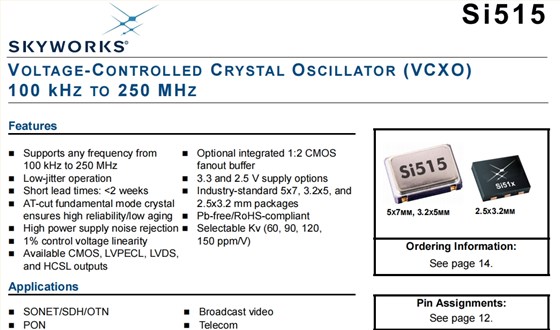

压控晶振产品特性:
支持来自的任何频率100kHz至250MHz
低抖动操作
交付周期短:<2周
AT切基模晶体
确保高可靠性/低老化
高电源噪声抑制
1%控制电压线性
可用CMOS、LVPECL、LVDS和HCSL输出
可选集成1:2 CMOS扇出缓存
3.3和2.5 V电源选项

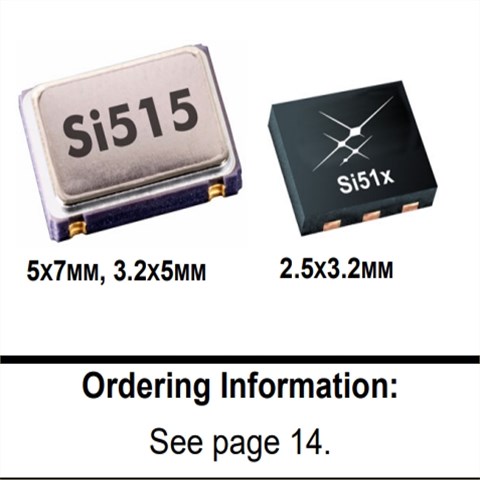

行业标准5x7、3.2x5和2.5x3.2 mm包装
无铅/符合RoHS
可选择的Kv(60、90、120,150 ppm/V)
