NZ2520SEB单反相机晶振,NZ2520SEB-32MHZ-NSC5284B,日本电波SPXO晶振

NZ2520SEB单反相机晶振,NZ2520SEB-32MHZ-NSC5284B,日本电波SPXO晶振NZ2520SEB单反相机晶振,NZ2520SEB-32MHZ-NSC5284B,日本电波SPXO晶振

产品简介

NZ2520SEB单反相机晶振,NZ2520SEB-32MHZ-NSC5284B,日本电波SPXO晶振，尺寸2.5x2.0mm，频率32MHZ，输出逻辑CMOS，日本进口晶振，NDK有源晶振，有源晶体振荡器，石英有源晶振，有源晶体振荡器，CMOS输出晶振，2520mm有源晶振，SPXO有源振荡器，六脚有源晶振，高精度有源晶振，低抖动有源晶振，低电压有源晶振，低相位有源晶振，低相噪有源振荡器，汽车导航有源晶振，汽车音响有源晶振，摄像头有源晶振，单反相机有源晶振，数码相机有源晶振，仪器仪表有源晶振，测试设备有源晶振，娱乐设备有源晶振，具有高精度低电压的特点。

有源石英晶振产品比较常用于汽车导航、汽车音响、摄像头，还广泛适用于数码相机、单反相机，测试设备，仪器仪表等应用。NZ2520SEB单反相机晶振,NZ2520SEB-32MHZ-NSC5284B,日本电波SPXO晶振.

产品详情

Abracon-2

LH-1

NZ2520SEB单反相机晶振,NZ2520SEB-32MHZ-NSC5284B,日本电波SPXO晶振，尺寸2.5x2.0mm，频率32MHZ，输出逻辑CMOS，日本进口晶振，NDK有源晶振，有源晶体振荡器，石英有源晶振，有源晶体振荡器，CMOS输出晶振，2520mm有源晶振，SPXO有源振荡器，六脚有源晶振，高精度有源晶振，低抖动有源晶振，低电压有源晶振，低相位有源晶振，低相噪有源振荡器，汽车导航有源晶振，汽车音响有源晶振，摄像头有源晶振，单反相机有源晶振，数码相机有源晶振，仪器仪表有源晶振，测试设备有源晶振，娱乐设备有源晶振，具有高精度低电压的特点。

有源石英晶振产品比较常用于汽车导航、汽车音响、摄像头，还广泛适用于数码相机、单反相机，测试设备，仪器仪表等应用。NZ2520SEB单反相机晶振,NZ2520SEB-32MHZ-NSC5284B,日本电波SPXO晶振.

LH-2

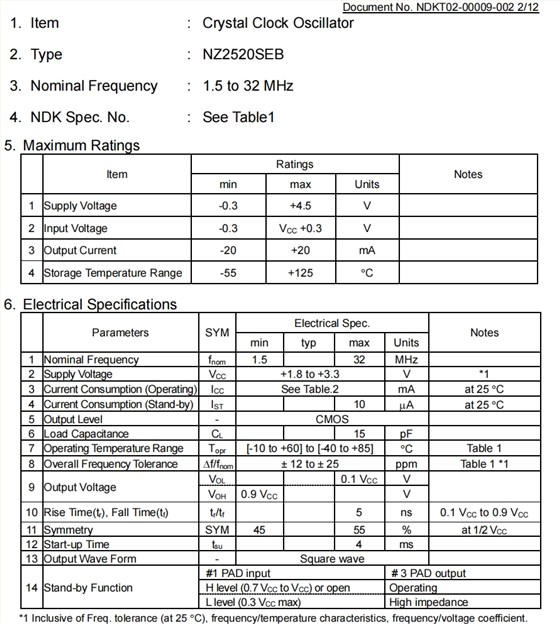

NZ2520SEB单反相机晶振,NZ2520SEB-32MHZ-NSC5284B,日本电波SPXO晶振参数表

Item Ratings Notes
min max Units
Supply Voltage -0.3 +4.5 V
Input Voltage -0.3 VCC+0.3 V
Output Current -20 +20 mA
Storage Temperature Range -55 +125 。C
Parameters SYM Electrical Spec. Notes
min typ max Units
Nominal Frequency fnom
32
MHz
Supply Voltage VCC +1.8 to +3.3 V *1
Current Consumption (Operating) ICC See Table.2 mA at 25。C
Current Consumption (Stand-by) IST 10 μA at 25。C
Output Level - CMOS
Load Capacitance CL 15 pF
Operating Temperature Range Topr [- 10 to +60] to [-40 to +85] 。C Table 1
Overall Frequency Tolerance Δf/fnom ± 12 to ± 25 ppm Table 1 *1
Output Voltage VOL 0.1 VCC V
VOH 0.9 VCC V
Rise Time(tr), Fall Time(tf) tr/tf 5 ns 0.1 VCCto 0.9 VCC
Symmetry SYM 45 55 % at 1/2 VCC
Start-up Time tsu 4 ms
Output Wave Form - Square wave
Stand-by Function #1 PAD input # 3 PAD output
H level (0.7 VCCto VCC) or open Operating
L level (0.3 VCCmax) High impedance
LH-3

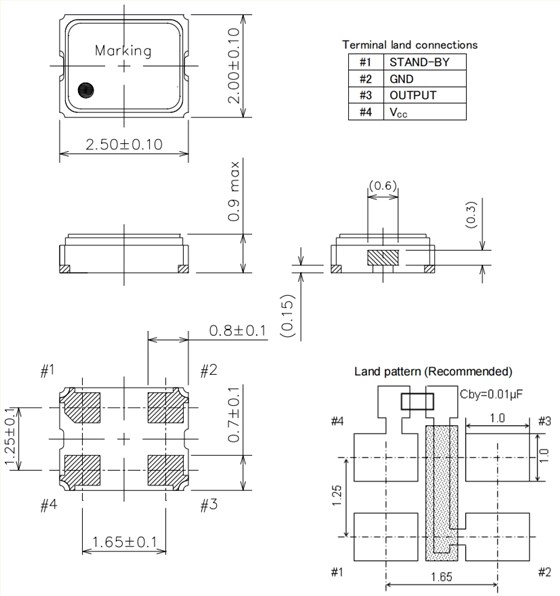

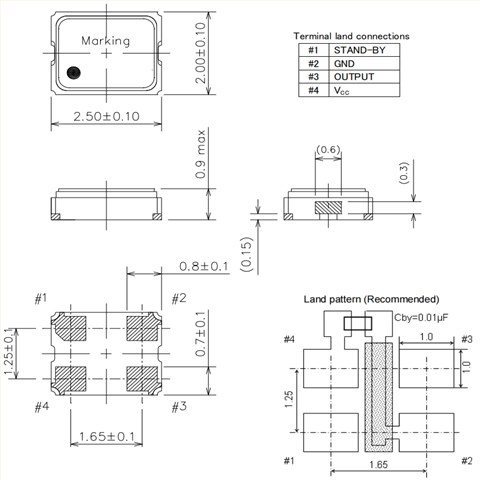

NZ2520SEB单反相机晶振,NZ2520SEB-32MHZ-NSC5284B,日本电波SPXO晶振 尺寸图

NZ2520SEB

NZ2520SEB单反相机晶振,NZ2520SEB-32MHZ-NSC5284B,日本电波SPXO晶振

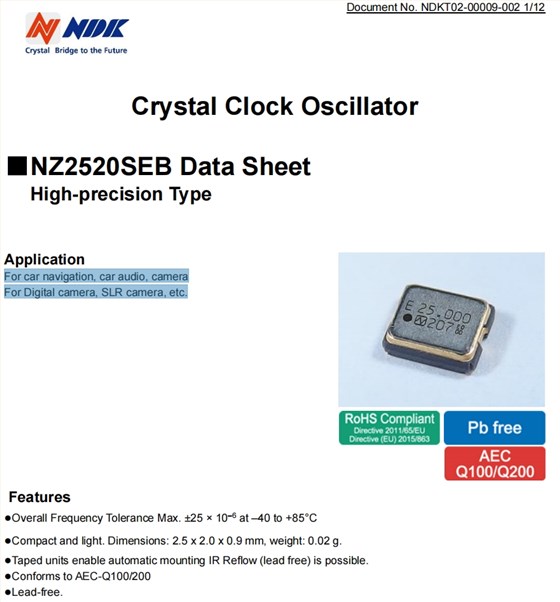

OSC晶振产品特点:

在–40至+85°C时，总体频率公差最大值为±25×10–6

小巧轻便。尺寸：2.5 x 2.0 x 0.9毫米，重量：0.02克。

磁带装置可实现自动安装IR回流（无铅）。

符合AEC-Q100/200

无铅。

NZ2520SEB 1

NZ2520SEB 2

Model Nominal frequency[MHz] Specification number 晶振厂家 Package size(LxW)[mm] Output specification Operating temperature rang[℃]
NZ2520SEB 25MHZ NSC5283D NDK晶振 2.5x2.0 CMOS -20~+70
NZ2520SEB 26MHZ NSC5283D NDK晶振 2.5x2.0 CMOS -20~+70
NZ2520SEB 32MHZ NSC5283D NDK晶振 2.5x2.0 CMOS -20~+70
NZ2520SEB 8MHZ NSC5284A NDK晶振 2.5x2.0 CMOS -10~+60
NZ2520SEB 12MHZ NSC5284A NDK晶振 2.5x2.0 CMOS -10~+60
NZ2520SEB 12.288MHZ NSC5284A NDK晶振 2.5x2.0 CMOS -10~+60
NZ2520SEB 15.625MHZ NSC5284A NDK晶振 2.5x2.0 CMOS -10~+60
NZ2520SEB 16MHZ NSC5284A NDK晶振 2.5x2.0 CMOS -10~+60
NZ2520SEB 24MHZ NSC5284A NDK晶振 2.5x2.0 CMOS -10~+60
NZ2520SEB 25MHZ NSC5284A NDK晶振 2.5x2.0 CMOS -10~+60
NZ2520SEB 26MHZ NSC5284A NDK晶振 2.5x2.0 CMOS -10~+60
NZ2520SEB 32MHZ NSC5284A NDK晶振 2.5x2.0 CMOS -10~+60
NZ2520SEB 8MHZ NSC5284B NDK晶振 2.5x2.0 CMOS -10~+60
NZ2520SEB 12MHZ NSC5284B NDK晶振 2.5x2.0 CMOS -10~+60
NZ2520SEB 12.288MHZ NSC5284B NDK晶振 2.5x2.0 CMOS -10~+60
NZ2520SEB 15.625MHZ NSC5284B NDK晶振 2.5x2.0 CMOS -10~+60
NZ2520SEB 16MHZ NSC5284B NDK晶振 2.5x2.0 CMOS -10~+60
NZ2520SEB 24MHZ NSC5284B NDK晶振 2.5x2.0 CMOS -10~+60
NZ2520SEB 25MHZ NSC5284B NDK晶振 2.5x2.0 CMOS -10~+60
NZ2520SEB 26MHZ NSC5284B NDK晶振 2.5x2.0 CMOS -10~+60
NZ2520SEB 32MHZ NSC5284B NDK晶振 2.5x2.0 CMOS -10~+60
NZ2520SEB 8MHZ NSC5284C NDK晶振 2.5x2.0 CMOS -10~+60
NZ2520SEB 12MHZ NSC5284C NDK晶振 2.5x2.0 CMOS -10~+60
NZ2520SEB 12.288MHZ NSC5284C NDK晶振 2.5x2.0 CMOS -10~+60
NZ2520SEB 15.625MHZ NSC5284C NDK晶振 2.5x2.0 CMOS -10~+60
NZ2520SEB 16MHZ NSC5284C NDK晶振 2.5x2.0 CMOS -10~+60
NZ2520SEB 24MHZ NSC5284C NDK晶振 2.5x2.0 CMOS -10~+60
NZ2520SEB 25MHZ NSC5284C NDK晶振 2.5x2.0 CMOS -10~+60
NZ2520SEB 26MHZ NSC5284C NDK晶振 2.5x2.0 CMOS -10~+60
NZ2520SEB 32MHZ NSC5284C NDK晶振 2.5x2.0 CMOS -10~+60
NZ2520SEB 8MHZ NSC5284D NDK晶振 2.5x2.0 CMOS -10~+60
NZ2520SEB 12MHZ NSC5284D NDK晶振 2.5x2.0 CMOS -10~+60
NZ2520SEB 12.288MHZ NSC5284D NDK晶振 2.5x2.0 CMOS -10~+60
NZ2520SEB 15.625MHZ NSC5284D NDK晶振 2.5x2.0 CMOS -10~+60
NZ2520SEB 16MHZ NSC5284D NDK晶振 2.5x2.0 CMOS -10~+60
NZ2520SEB 24MHZ NSC5284D NDK晶振 2.5x2.0 CMOS -10~+60
NZ2520SEB 25MHZ NSC5284D NDK晶振 2.5x2.0 CMOS -10~+60
NZ2520SEB 26MHZ NSC5284D NDK晶振 2.5x2.0 CMOS -10~+60
NZ2520SEB 32MHZ NSC5284D NDK晶振 2.5x2.0 CMOS -10~+60
NZ2520SDA 22.5792MHZ NSC5083A NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SDA 24MHZ NSC5083A NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SDA 24.576MHZ NSC5083A NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SDA 25MHZ NSC5083A NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SDA 27MHZ NSC5083A NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SDA 45.1584MHZ NSC5083A NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SDA 48MHZ NSC5083A NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SDA 49.152MHZ NSC5083A NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SDA 50MHZ NSC5083A NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SDA 22.5792MHZ NSC5083B NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SDA 24MHZ NSC5083B NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SDA 24.576MHZ NSC5083B NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SDA 25MHZ NSC5083B NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SDA 27MHZ NSC5083B NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SDA 45.1584MHZ NSC5083B NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SDA 48MHZ NSC5083B NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SDA 49.152MHZ NSC5083B NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SDA 50MHZ NSC5083B NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SDA 22.5792MHZ NSC5083C NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SDA 24MHZ NSC5083C NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SDA 24.576MHZ NSC5083C NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SDA 25MHZ NSC5083C NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SDA 27MHZ NSC5083C NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SDA 45.1584MHZ NSC5083C NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SDA 48MHZ NSC5083C NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SDA 49.152MHZ NSC5083C NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SDA 50MHZ NSC5083C NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SDA 22.5792MHZ NSC5083D NDK晶振 2.5x2.0 CMOS -40~+85
