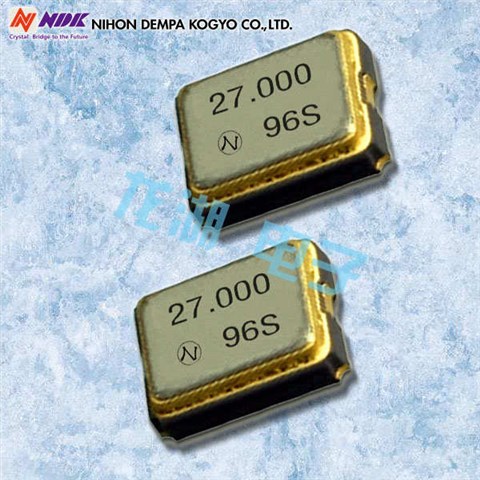

OSC晶振产品非常适合用于移动通信晶振,便携式设备,笔记本电脑,可视化设备,智能穿戴,游戏设备,娱乐设备等应用场景.NZ2520SF-33MHZ-NSA3468C,NDK便携式设备晶振,NZ2520SF时钟振荡器.

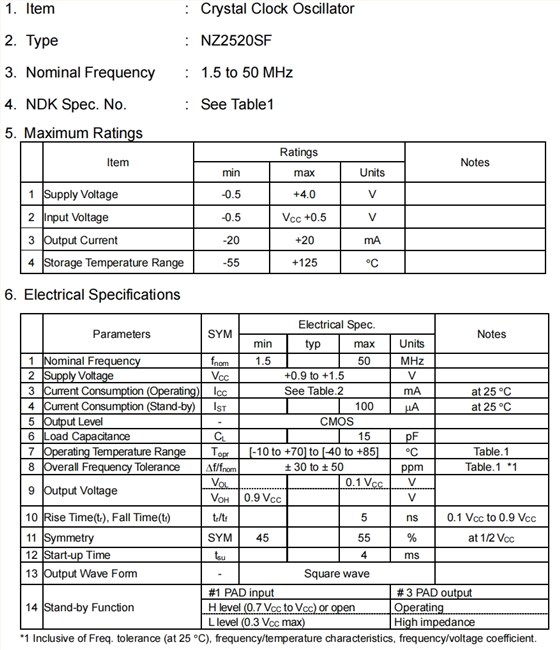

NZ2520SF-33MHZ-NSA3468C,NDK便携式设备晶振,NZ2520SF时钟振荡器参数表
Item | Ratings | Notes | |||||||||||||||||||
min | max | Units | |||||||||||||||||||
Supply Voltage | -0.5 | +4.0 | V | ||||||||||||||||||
Input Voltage | -0.5 | VCC+0.5 | V | ||||||||||||||||||
Output Current | -20 | +20 | mA | ||||||||||||||||||
Storage Temperature Range | -55 | +125 | 。C |
Parameters | SYM | Electrical Spec. | Notes | ||||||||||||||||||
min | typ | max | Units | ||||||||||||||||||
Nominal Frequency | fnom |
|
33 |
|
MHz | ||||||||||||||||
Supply Voltage | VCC | +0.9 to +1.5 | V | ||||||||||||||||||
Current Consumption (Operating) | ICC | See Table.2 | mA | at 25。C | |||||||||||||||||
Current Consumption (Stand-by) | IST | 100 | μA | at 25。C | |||||||||||||||||
Output Level | - | CMOS | |||||||||||||||||||
Load Capacitance | CL | 15 | pF | ||||||||||||||||||
Operating Temperature Range | Topr | [- 10 to +70] to [-40 to +85] | 。C | Table.1 | |||||||||||||||||
Overall Frequency Tolerance | Δf/fnom | ± 30 to ± 50 | ppm | Table.1* 1 | |||||||||||||||||
Output Voltage | VOL | 0.1 VCC | V | ||||||||||||||||||
VOH | 0.9 VCC | V | |||||||||||||||||||
Rise Time(tr), Fall Time(tf) | tr/tf | 5 | ns | 0.1 VCCto 0.9 VCC | |||||||||||||||||
Symmetry | SYM | 45 | 55 | % | at 1/2 VCC | ||||||||||||||||
Start-up Time | tsu | 4 | ms | ||||||||||||||||||
Output Wave Form | - | Square wave | |||||||||||||||||||
Stand-by Function | #1 PAD input | # 3 PAD output | |||||||||||||||||||
H level (0.7 VCCto VCC) or open | Operating | ||||||||||||||||||||
L level (0.3 VCCmax) | High impedance |

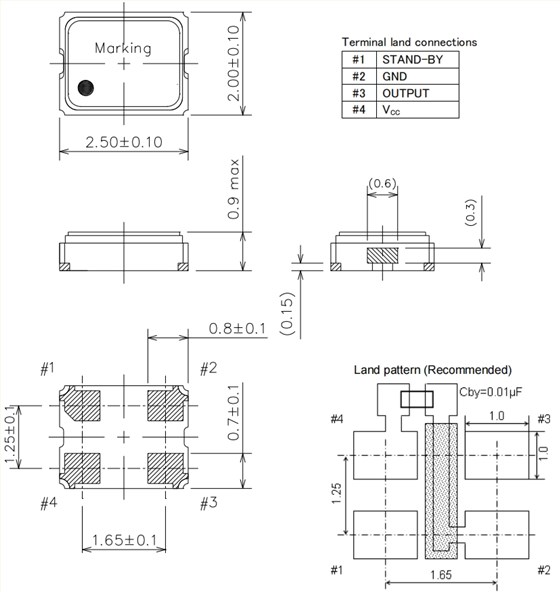

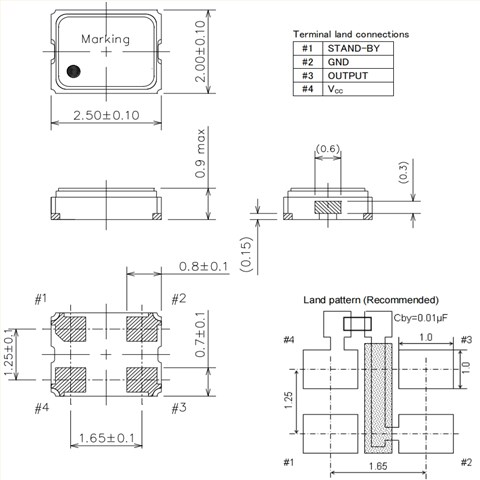

NZ2520SF-33MHZ-NSA3468C,NDK便携式设备晶振,NZ2520SF时钟振荡器 尺寸图
NZ2520SF-33MHZ-NSA3468C,NDK便携式设备晶振,NZ2520SF时钟振荡器

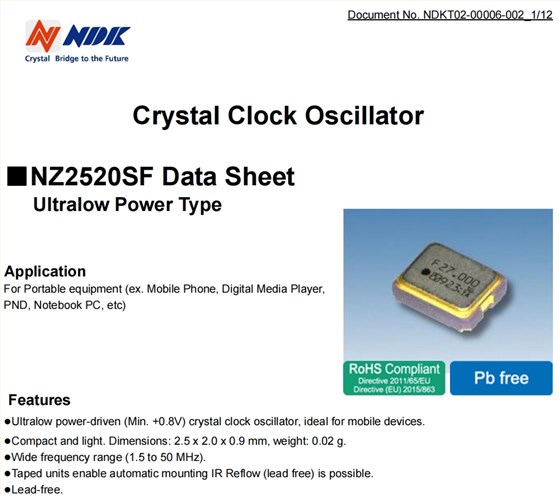

产品特点:
超低功率驱动(最小+0.8V)石英晶体振荡器,非常适合移动设备。
小巧轻便。尺寸:2.5 x 2.0 x 0.9毫米,重量:0.02克。
宽频率范围(1.5至50 MHz)。
磁带装置可实现自动安装IR回流(无铅)。
进口晶振型号 | Nominal frequency[MHz] | Specification number | Manufacturer | Package size(LxW)[mm] | Output specification | Operating temperature rang[℃] |
NZ2520SDA | 24MHZ | NSC5083D | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SDA | 24.576MHZ | NSC5083D | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SDA | 25MHZ | NSC5083D | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SDA | 27MHZ | NSC5083D | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SDA | 45.1584MHZ | NSC5083D | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SDA | 48MHZ | NSC5083D | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SDA | 49.152MHZ | NSC5083D | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SDA | 50MHZ | NSC5083D | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SF | 24MHZ | NSA3468E | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SF | 24.54MHZ | NSA3468E | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SF | 25MHZ | NSA3468E | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SF | 26MHZ | NSA3468E | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SF | 27MHZ | NSA3468E | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SF | 33MHZ | NSA3468E | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SF | 33.33MHZ | NSA3468E | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SF | 38.4MHZ | NSA3468E | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SF | 50MHZ | NSA3468E | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SF | 24MHZ | NSA3477E | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SF | 24.54MHZ | NSA3477E | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SF | 25MHZ | NSA3477E | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SF | 26MHZ | NSA3477E | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SF | 27MHZ | NSA3477E | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SF | 33MHZ | NSA3477E | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SF | 33.33MHZ | NSA3477E | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SF | 38.4MHZ | NSA3477E | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SF | 50MHZ | NSA3477E | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SF | 24MHZ | NSA3469E | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SF | 24.54MHZ | NSA3469E | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SF | 25MHZ | NSA3469E | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SF | 26MHZ | NSA3469E | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SF | 27MHZ | NSA3469E | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SF | 33MHZ | NSA3469E | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SF | 33.33MHZ | NSA3469E | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SF | 38.4MHZ | NSA3469E | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SF | 50MHZ | NSA3469E | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
NZ2520SF | 24MHZ | NSA3468C | NDK晶振 | 2.5x2.0 | CMOS | -10~+70 |
NZ2520SF | 24.54MHZ | NSA3468C | NDK晶振 | 2.5x2.0 | CMOS | -10~+70 |
NZ2520SF | 25MHZ | NSA3468C | NDK晶振 | 2.5x2.0 | CMOS | -10~+70 |
NZ2520SF | 26MHZ | NSA3468C | NDK晶振 | 2.5x2.0 | CMOS | -10~+70 |
NZ2520SF | 27MHZ | NSA3468C | NDK晶振 | 2.5x2.0 | CMOS | -10~+70 |
NZ2520SF | 33MHZ | NSA3468C | NDK晶振 | 2.5x2.0 | CMOS | -10~+70 |
NZ2520SF | 33.33MHZ | NSA3468C | NDK晶振 | 2.5x2.0 | CMOS | -10~+70 |
NZ2520SF | 38.4MHZ | NSA3468C | NDK晶振 | 2.5x2.0 | CMOS | -10~+70 |
NZ2520SF | 50MHZ | NSA3468C | NDK晶振 | 2.5x2.0 | CMOS | -10~+70 |
NZ2520SF | 24MHZ | NSA3477C | NDK晶振 | 2.5x2.0 | CMOS | -10~+70 |
NZ2520SF | 24.54MHZ | NSA3477C | NDK晶振 | 2.5x2.0 | CMOS | -10~+70 |
NZ2520SF | 25MHZ | NSA3477C | NDK晶振 | 2.5x2.0 | CMOS | -10~+70 |
NZ2520SF | 26MHZ | NSA3477C | NDK晶振 | 2.5x2.0 | CMOS | -10~+70 |
NZ2520SF | 27MHZ | NSA3477C | NDK晶振 | 2.5x2.0 | CMOS | -10~+70 |
NZ2520SF | 33MHZ | NSA3477C | NDK晶振 | 2.5x2.0 | CMOS | -10~+70 |
NZ2520SF | 33.33MHZ | NSA3477C | NDK晶振 | 2.5x2.0 | CMOS | -10~+70 |
NZ2520SF | 38.4MHZ | NSA3477C | NDK晶振 | 2.5x2.0 | CMOS | -10~+70 |
NZ2520SF | 50MHZ | NSA3477C | NDK晶振 | 2.5x2.0 | CMOS | -10~+70 |
NZ2520SF | 24MHZ | NSA3469C | NDK晶振 | 2.5x2.0 | CMOS | -10~+70 |
NZ2520SF | 24.54MHZ | NSA3469C | NDK晶振 | 2.5x2.0 | CMOS | -10~+70 |
NZ2520SF | 25MHZ | NSA3469C | NDK晶振 | 2.5x2.0 | CMOS | -10~+70 |
NZ2520SF | 26MHZ | NSA3469C | NDK晶振 | 2.5x2.0 | CMOS | -10~+70 |
NZ2520SF | 27MHZ | NSA3469C | NDK晶振 | 2.5x2.0 | CMOS | -10~+70 |
NZ2520SF | 33MHZ | NSA3469C | NDK晶振 | 2.5x2.0 | CMOS | -10~+70 |
NZ2520SF | 33.33MHZ | NSA3469C | NDK晶振 | 2.5x2.0 | CMOS | -10~+70 |
NZ2520SF | 38.4MHZ | NSA3469C | NDK晶振 | 2.5x2.0 | CMOS | -10~+70 |
NZ2520SF | 50MHZ | NSA3469C | NDK晶振 | 2.5x2.0 | CMOS | -10~+70 |
2725T | 4.096MHZ | NSA6293A | NDK晶振 | 5.0x3.2 | CMOS | -20~+70 |
2725T | 10MHZ | NSA6293A | NDK晶振 | 5.0x3.2 | CMOS | -20~+70 |
2725T | 12MHZ | NSA6293A | NDK晶振 | 5.0x3.2 | CMOS | -20~+70 |
2725T | 12.5MHZ | NSA6293A | NDK晶振 | 5.0x3.2 | CMOS | -20~+70 |
2725T | 16MHZ | NSA6293A | NDK晶振 | 5.0x3.2 | CMOS | -20~+70 |
2725T | 24MHZ | NSA6293A | NDK晶振 | 5.0x3.2 | CMOS | -20~+70 |
2725T | 25MHZ | NSA6293A | NDK晶振 | 5.0x3.2 | CMOS | -20~+70 |
2725T | 33MHZ | NSA6293A | NDK晶振 | 5.0x3.2 | CMOS | -20~+70 |
2725T | 50MHZ | NSA6293A | NDK晶振 | 5.0x3.2 | CMOS | -20~+70 |
2725T | 66.66MHZ | NSA6293A | NDK晶振 | 5.0x3.2 | CMOS | -20~+70 |
2725T | 74.25MHZ | NSA6293A | NDK晶振 | 5.0x3.2 | CMOS | -20~+70 |
2725T | 100MHZ | NSA6293A | NDK晶振 | 5.0x3.2 | CMOS | -20~+70 |
2725T | 125MHZ | NSA6293A | NDK晶振 | 5.0x3.2 | CMOS | -20~+70 |
2725T | 4.096MHZ | NSA6293B | NDK晶振 | 5.0x3.2 | CMOS | -10~+70 |
2725T | 10MHZ | NSA6293B | NDK晶振 | 5.0x3.2 | CMOS | -10~+70 |
2725T | 12MHZ | NSA6293B | NDK晶振 | 5.0x3.2 | CMOS | -10~+70 |
2725T | 12.5MHZ | NSA6293B | NDK晶振 | 5.0x3.2 | CMOS | -10~+70 |
2725T | 16MHZ | NSA6293B | NDK晶振 | 5.0x3.2 | CMOS | -10~+70 |
2725T | 24MHZ | NSA6293B | NDK晶振 | 5.0x3.2 | CMOS | -10~+70 |
2725T | 25MHZ | NSA6293B | NDK晶振 | 5.0x3.2 | CMOS | -10~+70 |
2725T | 33MHZ | NSA6293B | NDK晶振 | 5.0x3.2 | CMOS | -10~+70 |
2725T | 50MHZ | NSA6293B | NDK晶振 | 5.0x3.2 | CMOS | -10~+70 |
2725T | 66.66MHZ | NSA6293B | NDK晶振 | 5.0x3.2 | CMOS | -10~+70 |
2725T | 74.25MHZ | NSA6293B | NDK晶振 | 5.0x3.2 | CMOS | -10~+70 |
2725T | 100MHZ | NSA6293B | NDK晶振 | 5.0x3.2 | CMOS | -10~+70 |
2725T | 125MHZ | NSA6293B | NDK晶振 | 5.0x3.2 | CMOS | -10~+70 |
2725T | 4.096MHZ | NSA6293F | NDK晶振 | 5.0x3.2 | CMOS | -40~+105 |
2725T | 10MHZ | NSA6293F | NDK晶振 | 5.0x3.2 | CMOS | -40~+105 |
2725T | 12MHZ | NSA6293F | NDK晶振 | 5.0x3.2 | CMOS | -40~+105 |
2725T | 12.5MHZ | NSA6293F | NDK晶振 | 5.0x3.2 | CMOS | -40~+105 |
2725T | 16MHZ | NSA6293F | NDK晶振 | 5.0x3.2 | CMOS | -40~+105 |
2725T | 24MHZ | NSA6293F | NDK晶振 | 5.0x3.2 | CMOS | -40~+105 |
2725T | 25MHZ | NSA6293F | NDK晶振 | 5.0x3.2 | CMOS | -40~+105 |
2725T | 33MHZ | NSA6293F | NDK晶振 | 5.0x3.2 | CMOS | -40~+105 |
2725T | 50MHZ | NSA6293F | NDK晶振 | 5.0x3.2 | CMOS | -40~+105 |
2725T | 66.66MHZ | NSA6293F | NDK晶振 | 5.0x3.2 | CMOS | -40~+105 |
2725T | 74.25MHZ | NSA6293F | NDK晶振 | 5.0x3.2 | CMOS | -40~+105 |
2725T | 4.096MHZ | NSA6293D | NDK晶振 | 5.0x3.2 | CMOS | -40~+85 |
2725T | 10MHZ | NSA6293D | NDK晶振 | 5.0x3.2 | CMOS | -40~+85 |
2725T | 12MHZ | NSA6293D | NDK晶振 | 5.0x3.2 | CMOS | -40~+85 |
2725T | 12.5MHZ | NSA6293D | NDK晶振 | 5.0x3.2 | CMOS | -40~+85 |
2725T | 16MHZ | NSA6293D | NDK晶振 | 5.0x3.2 | CMOS | -40~+85 |
