SMD100.3C(E/D)-12.000MHz,SMD100.3系列,7050mm,12MHZ,GED数字设备晶振特点:
表面安装HCMOS/TTL兼容振荡器
HCMOS/TTL输出
3.3V电源电压
7050晶振陶瓷SMD封装
可用于磁带和卷轴

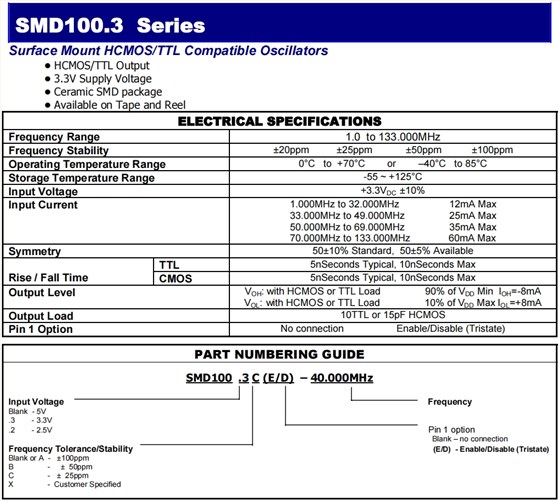

SMD100.3C(E/D)-12.000MHz,SMD100.3系列,7050mm,12MHZ,GED数字设备晶振 参数表
ELECTRICAL SPECIFICATIONS | ||||||
Frequency Range | 12.000MHz | |||||
Frequency Stability | ±20ppm±25ppm±50ppm±100ppm | |||||
Operating Temperature Range | 0°Cto+70°Cor–40°Cto 85°C | |||||
Storage Temperature Range | -55 ~ +125°C | |||||
Input Voltage | +3.3VDC±10% | |||||
Input Current |
1.000MHz to 32.000MHz 33.000MHz to 49.000MHz 50.000MHz to 69.000MHz 70.000MHz to 133.000MHz |
12mA Max 25mA Max 35mA Max 60mA Max |
||||
Symmetry | 50±10% Standard,50±5% Available | |||||
Rise / Fall Time | TTL | 5nSeconds Typical, 10nSeconds Max | ||||
CMOS | 5nSeconds Typical, 10nSeconds Max | |||||
Output Level |
VOH: with HCMOS or TTL Load VOL: with HCMOS or TTL Load |
90% of VDDMinIOH=-8mA 10% of VDDMax IOL=+8mA |
||||
Output Load | 10TTL or 15pF HCMOS | |||||
Pin 1 Option | No connectionEnable/Disable (Tristate) |

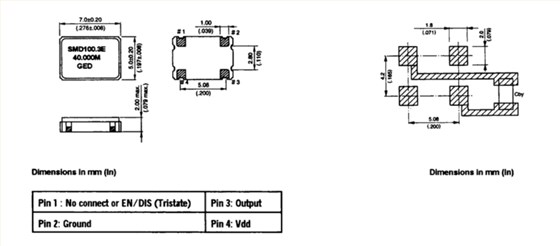

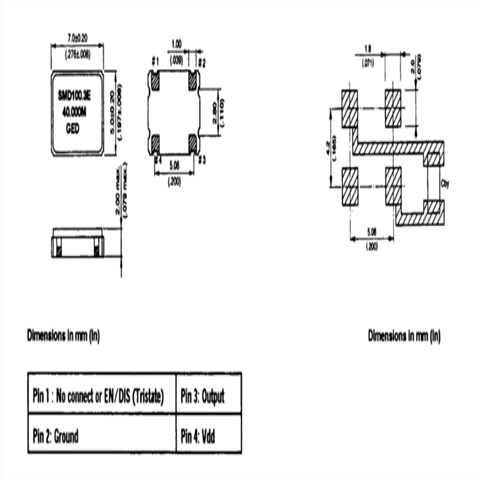

SMD100.3C(E/D)-12.000MHz,SMD100.3系列,7050mm,12MHZ,GED数字设备晶振 尺寸图
