HC49U-12M000-1A50D16,12MHZ,HC49U系列插件晶体,Fortiming大尺寸晶振

HC49U-12M000-1A50D16,12MHZ,HC49U系列插件晶体,Fortiming大尺寸晶振HC49U-12M000-1A50D16,12MHZ,HC49U系列插件晶体,Fortiming大尺寸晶振

产品简介

HC49U-12M000-1A50D16,12MHZ,HC49U系列插件晶体,Fortiming大尺寸晶振,富通石英晶体,欧美进口晶振,无源石英晶振,大尺寸晶振,12MHZ无源谐振器,石英晶振,石英插件晶振,水晶振动子,尺寸11.0*4.6mm,频率12MHZ,低成本晶振,无铅晶振,低损耗晶振,微处理器晶体,电话机晶振,数字视频晶振,移动设备晶振,电子设备晶振.

产品详情

LH-1

CTS-1

HC49U-12M000-1A50D16,12MHZ,HC49U系列插件晶体,Fortiming大尺寸晶振,富通石英晶体,欧美进口晶振,无源石英晶振,大尺寸晶振,12MHZ无源谐振器,石英晶振,石英插件晶振,水晶振动子,尺寸11.0*4.6mm,频率12MHZ,低成本晶振,无铅晶振,低损耗晶振,微处理器晶体,电话机晶振,数字视频晶振,移动设备晶振,电子设备晶振.

HC49U-12M000-1A50D16,12MHZ,HC49U系列插件晶体,Fortiming大尺寸晶振特点:

符合RoHS标准(无铅),可提供宽频率范围

AT切割插件晶振,出色的时效性,扩展的温度范围

工业标准封装,低成本,微处理器晶体

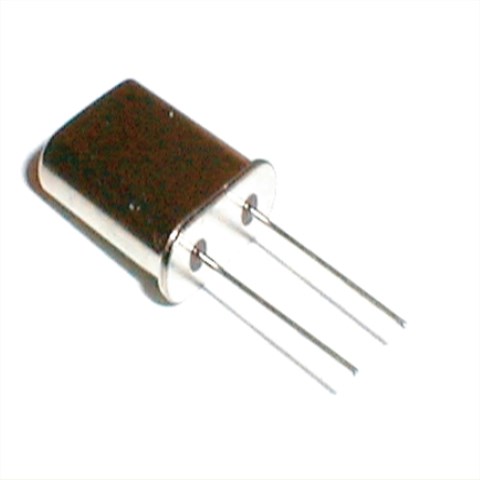

选项:顶部焊接第三根引线;乙烯基套筒;绝缘子接线片;SMT成型引线

LH-2

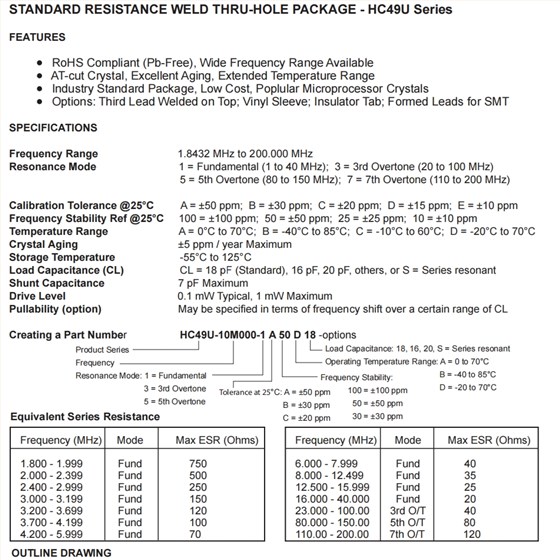

CTS-2HC49U-12M000-1A50D16,12MHZ,HC49U系列插件晶体,Fortiming大尺寸晶振 参数表

Frequency Range 12.000 MHz
Resonance Mode 1 = Fundamental (1 to 40 MHz);3 = 3rd Overtone (20 to 100 MHz)
5 = 5th Overtone (80 to 150 MHz);7 = 7th Overtone (110 to 200 MHz)
Calibration Tolerance @25°C A = ±50 ppm;B = ±30 ppm;C = ±20 ppm;D = ±15 ppm;E = ±10 ppm
Frequency Stability Ref @25°C 100 = ±100 ppm;50 = ±50 ppm;25 = ±25 ppm;10 = ±10 ppm
Temperature Range A = 0°C to 70°C;B = -40°C to 85°C;C = -10°C to 60°C;D = -20°C to 70°C
Crystal Aging ±5 ppm / year Maximum
Storage Temperature -55°C to 125°C
Load Capacitance (CL) CL = 18 pF (Standard), 16 pF, 20 pF, others, or S = Series resonant
Shunt Capacitance 7 pF Maximum
Drive Level 0.1 mW Typical, 1 mW Maximum
Pullability (option) May be specified in terms of frequency shift over a certain range of CL
LH-3

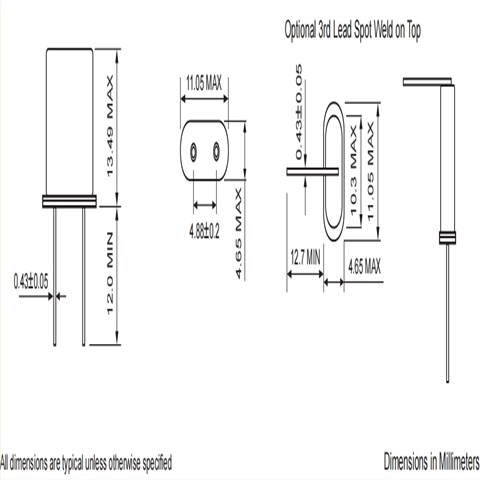

ECS-1HC49U-12M000-1A50D16,12MHZ,HC49U系列插件晶体,Fortiming大尺寸晶振 尺寸图

HC49U HC49U 1

HC49U LH-6

ECS-2
