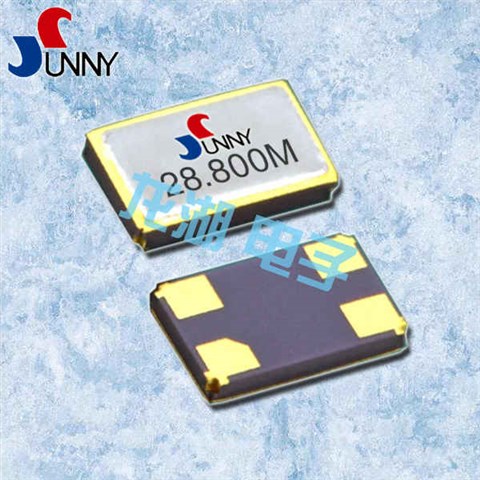

SO18130M7-48.00000-T&R,Sunny三呢晶振,SX-A8晶体,5032mm

SO18130M7-48.00000-T&R,Sunny三呢晶振,SX-A8晶体,5032mmSO18130M7-48.00000-T&R,Sunny三呢晶振,SX-A8晶体,5032mm

产品简介

SO18130M7-48.00000-T&R,Sunny三呢晶振,SX-A8晶体,5032mm,韩国进口晶振,三呢晶体谐振器,SMD晶振,石英无源晶振,48MHZ轻薄型晶振,5032mm贴片晶体,石英振动子,四脚贴片晶振,石英晶振,尺寸5.0x3.2mm,频率为48MHZ,无铅晶振,高频晶振,高性能晶振,智能手机晶振,视听设备晶振,测试测量晶振,仪器仪表晶振,小型设备晶振.

产品详情

LH-1

CTS-1

SO18130M7-48.00000-T&R,Sunny三呢晶振,SX-A8晶体,5032mm,韩国进口晶振,三呢晶体谐振器,SMD晶振,石英无源晶振,48MHZ轻薄型晶振,5032mm贴片晶体,石英振动子,四脚贴片晶振,石英晶振,尺寸5.0x3.2mm,频率为48MHZ,无铅晶振,高频晶振,高性能晶振,智能手机晶振,视听设备晶振,测试测量晶振,仪器仪表晶振,小型设备晶振.

SO18130M7-48.00000-T&R,Sunny三呢晶振,SX-A8晶体,5032mm特点:

接缝密封,卓越的可焊性

石英晶体卓越的抗振性和抗冲击性,高频稳定性

出色的热滞后,TTS-16949认证

无铅和RoHS合规,AAEC-Q200合格

LH-2

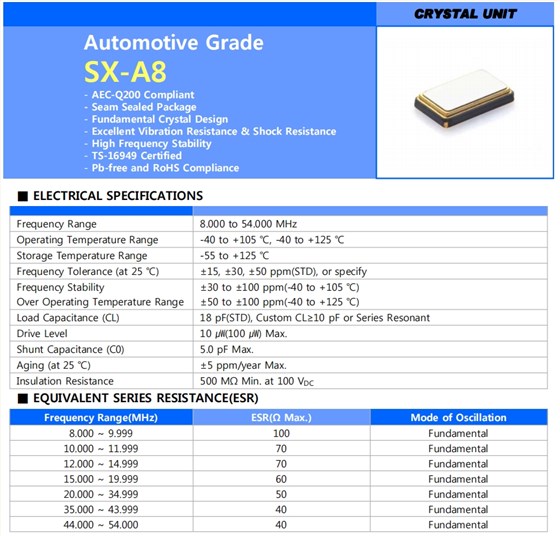

CTS-2SO18130M7-48.00000-T&R,Sunny三呢晶振,SX-A8晶体,5032mm 参数表

Frequency Range 48.000 MHz
Operating Temperature Range -40 to +105 ℃, -40 to +125 ℃
Storage Temperature Range -55 to +125 ℃
Frequency Tolerance (at 25 ℃) ±15, ±30, ±50 ppm(STD), or specify
Frequency Stability
Over Operating Temperature Range
±30 to ±100 ppm(-40 to +105 ℃)
±50 to ±100 ppm(-40 to +125 ℃)
Load Capacitance (CL) 18 pF(STD), Custom CL≥10 pF or Series Resonant
Drive Level 10 μw(100 μw) Max.
Shunt Capacitance (C0) 5.0 pF Max.
Aging (at 25 ℃) ±5 ppm/year Max.
Insulation Resistance 500 MΩ Min. at 100 VDC

LH-3

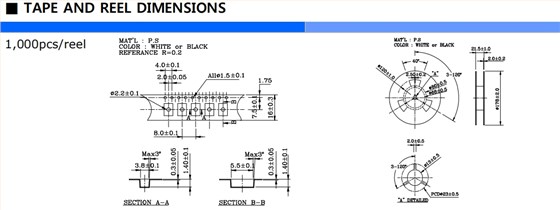

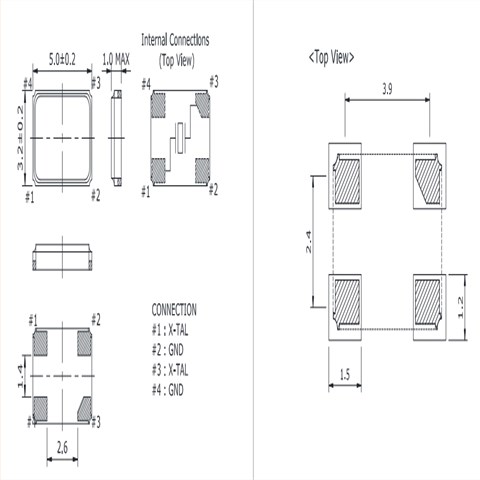

ECS-1SO18130M7-48.00000-T&R,Sunny三呢晶振,SX-A8晶体,5032mm尺寸图

SX-A8 SX-A8 1

SX-A8

SX-A8 3

SX-A8 4
