CPPLC4-B6-16.896TS,16.896MHz,Cardinal晶振,CPPL4系列时钟振荡器

LH-1

CTS-1

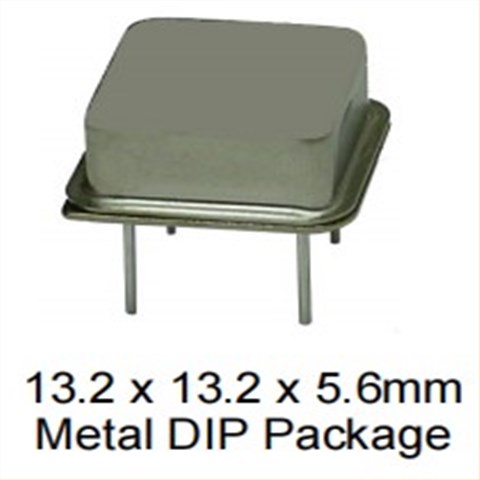

CPPLC4-B6-16.896TS,16.896MHz,Cardinal晶振,CPPL4系列时钟振荡器，美国进口晶振，Cardinal晶振，卡迪纳尔晶振，型号：CPPL4系列，编码为CPPLC4-B6-16.896TS，电压：5.0V，频率为：16.896MHz，工作温度范围：0℃至+70℃，频率稳定性：±100ppm，CMOS输出晶振，尺寸为：13.2x13.2x5.6mm金属DIP封装，有源晶振，石英晶振，石英晶体振荡器，时钟振荡器。应用程序：驱动A/D，D/As，FPGAs，数字视频，以太网，GbE，医疗设备，存储区域网络，COTS，宽带接入，SONET/SDH/DWDM，测试和测量。

CPPLC4-B6-16.896TS,16.896MHz,Cardinal晶振,CPPL4系列时钟振荡器，产品特点：

•CMOS输出（将与TTL设备接口）

•启用/禁用功能（可选待机功能）

•3.3V或5.0V标称电源电压

•半DIP封装

•工厂编程

LH-2

CTS-2

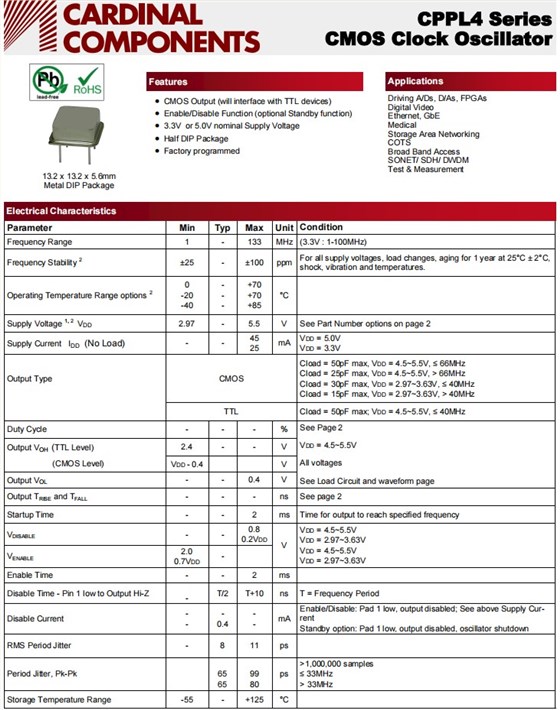

CPPLC4-B6-16.896TS,16.896MHz,Cardinal晶振,CPPL4系列时钟振荡器,参数表

Electrical Characteristics CPPL4参数说明
Parameter			Min	Typ	Max	Unit	Condition
Frequency Range				16.896		MHz	(3.3V : 1-100MHz)
Frequency Stability	2		±25	-	±100	ppm	For all supply voltages, load changes, aging for 1 year at 25°C ± 2°C, shock, vibration and temperatures.
			0	-	70
Operating Temperature Range options		2	-20	-	70	°C
			-40	-	85
Supply Voltage1, 2VDD			2.97	-	5.5	V	See Part Number options on page 2
Supply Current IDD(No Load)			-	-	45	mA	VDD= 5.0V
Supply Current IDD(No Load)			-	-	25	mA	VDD= 3.3V
							Cload = 50pF max, VDD= 4.5~5.5V, ≤ 66MHz
Output Type			CMOS				Cload = 25pF max, VDD= 4.5~5.5V, > 66MHz
							Cload = 30pF max, VDD= 2.97~3.63V, ≤ 40MHz
							Cload = 15pF max, VDD= 2.97~3.63V, > 40MHz
			TTL				Cload = 50pF max; VDD= 4.5~5.5V, ≤ 40MHz
Duty Cycle			-	-	-	%	See Page 2
Output VOH(TTL Level)			2.4	-	-	V	VDD= 4.5~5.5V
(CMOS Level)			VDD- 0.4			V	All voltages
Output VOL			-	-	0.4	V	See Load Circuit and waveform page
Output TRISEand TFALL			-	-	-	ns	See page 2
Startup Time			-	-	2	ms	Time for output to reach specified frequency
VDISABLE			-	-	0.8 0.2VDD		VDD= 4.5~5.5V
						V	VDD= 2.97~3.63V
							VDD= 4.5~5.5V
VENABLE			2.0 0.7VDD	-			VDD= 2.97~3.63V
Enable Time			-	-	2	ms
Disable Time - Pin 1 low to Output Hi-Z				T/2	T+10	ns	T = Frequency Period
Disable Time - Pin 1 low to Output Hi-Z			-	T/2	T+10	ns	T = Frequency Period
Disable Current			-	-	-	mA	Enable/Disable: Pad 1 low, output disabled; See above Supply Cur- rent
Disable Current			-	0.4	-	mA	Standby option: Pad 1 low, output disabled, oscillator shutdown
RMS Period Jitter			-	8	11	ps
Period Jitter, Pk-Pk				65	99	ps	>1,000,000 samples
				65	80		≤ 33MHz
							> 33MHz
Storage Temperature Range			-55	-	125	°C

LH-3

ECS-1

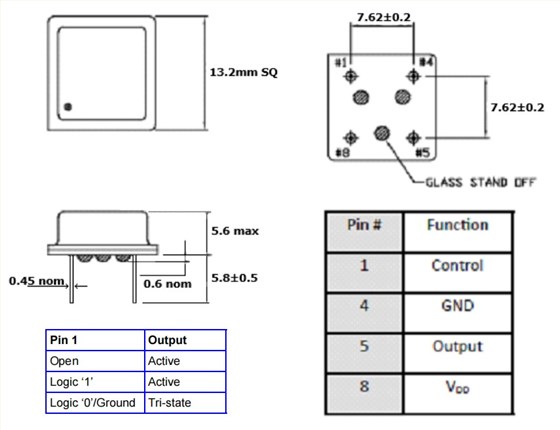

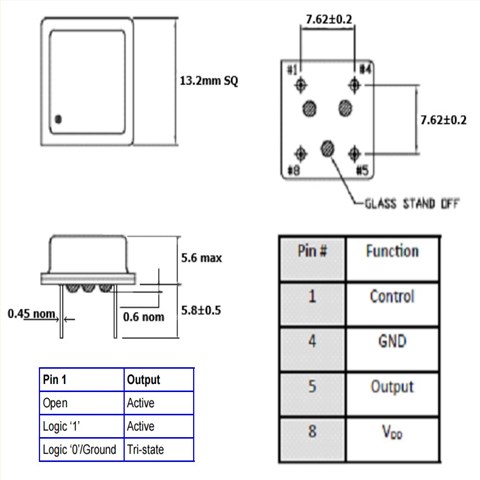

CPPLC4-B6-16.896TS,16.896MHz,Cardinal晶振,CPPL4系列时钟振荡器,尺寸图

石英晶体振荡器	品牌	系列	频率	Description描述
CPPLC5-A7BR-19.6608PD	Cardinal晶振	FIPO™ CPPL	19.6608MHz	OSC XO 19.6608MHZ CMOS SMD
CPPLC5-A7BR-25.6TS	Cardinal晶振	FIPO™ CPPL	25.6MHz	OSC XO 25.60MHZ CMOS SMD
CPPLC5L-A5B6-66.666TS	Cardinal晶振	FIPO™ CPPL	66.666MHz	OSC XO 66.666MHZ CMOS SMD
CPPLC5L-A5BP-125.0TS	Cardinal晶振	FIPO™ CPPL	125MHz	OSC XO 125.000MHZ CMOS SMD
CPPLC5L-A7BP-28.9767TS	Cardinal晶振	FIPO™ CPPL	28.9767MHz	OSC XO 28.9767MHZ CMOS SMD
CPPLC5L-A7BR-100.0TS	Cardinal晶振	FIPO™ CPPL	100MHz	OSC XO 100.000MHZ CMOS SMD
CPPLC5L-A7BR-27.0TS	Cardinal晶振	FIPO™ CPPL	27MHz	OSC XO 27.000MHZ CMOS SMD
CPPLC5L-A7BR-34.4064TS	Cardinal晶振	FIPO™ CPPL	34.4064MHz	OSC XO 34.4064MHZ CMOS SMD
CPPLC5LT-A5B6-120.0TS	Cardinal晶振	FIPO™ CPPL	120MHz	OSC XO 120.000MHZ CMOS SMD
CPPLC5LZ-A7BP-20.0TS	Cardinal晶振	FIPO™ CPPL	20MHz	OSC XO 20.000MHZ CMOS SMD
CPPLC5LZ-A7BR-16.0TS	Cardinal晶振	FIPO™ CPPL	16MHz	OSC XO 16.000MHZ CMOS SMD
CPPLC5-A7BD-27.0TS	Cardinal晶振	FIPO™ CPPL	27MHz	OSC XO 27.000MHZ CMOS SMD
CPPLC1-B6-24.0TS	Cardinal晶振	FIPO™ CPPL	24MHz	OSC XO 24.000MHZ CMOS PC PIN
CPPLC1-BP-155.52PD	Cardinal晶振	FIPO™ CPPL	155.52MHz	OSC XO 155.52MHZ CMOS PC PIN
CPPLC1L-A5BR-13.56TS	Cardinal晶振	FIPO™ CPPL	13.56MHz	OSC XO 13.56MHZ CMOS PC PIN
CPPLC4-B6-16.896TS	Cardinal晶振	FIPO™ CPPL	16.896MHz	OSC XO 16.896MHZ CMOS PC PIN
CPPLC4-B6-3.6864TS	Cardinal晶振	FIPO™ CPPL	3.6864MHz	OSC XO 3.6864MHZ CMOS PC PIN
CPPLC4L-B6-100.0TS	Cardinal晶振	FIPO™ CPPL	100MHz	OSC XO 100.000MHZ CMOS PC PIN
CPPLC4L-BR-37.5TS	Cardinal晶振	FIPO™ CPPL	37.5MHz	OSC XO 37.50MHZ CMOS PC PIN
CPPLC4T-A7BR-10.6656TS	Cardinal晶振	FIPO™ CPPL	10.6656MHz	OSC XO 10.6656MHZ CMOS PC PIN
