奥斯康利插件晶振,151-25.000M-SR-20HS-VS,25MHZ,151系列谐振器,美国Oscilent晶振,欧美进口晶振,石英晶振,无源插件晶振,大尺寸晶振,石英插件晶振,石英晶体谐振器,水晶振动子,尺寸11.0*3.8mm,频率25MHZ,工作温度-20~+70℃,无铅晶振,高可靠晶振,高性能晶振,低老化晶振,小家电晶振,影音系统晶振,摄像头晶振,游戏机晶振,数码电子晶振.
奥斯康利插件晶振,151-25.000M-SR-20HS-VS,25MHZ,151系列谐振器特点:
石英晶体行业标准套装,宽频率范围
低调,卓越的可靠性/老化
“AT Strip”坯料技术,经济高效
RoHs/无铅合规
奥斯康利插件晶振,151-25.000M-SR-20HS-VS,25MHZ,151系列谐振器 参数表
| Parameter | Conditions | Characteristics | Units | |||||||||||||||||
| Frequency Range | fO | 25.00 | MHz | |||||||||||||||||
| Frequency Tolerance | Ref @ +25°C | ±30 std. (±5 ~ ±100 avail.) | PPM | |||||||||||||||||

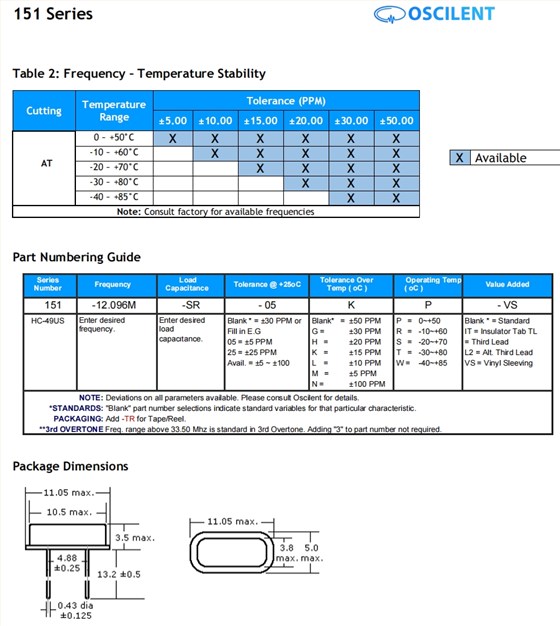

| Temperature Stability | TL | ±50 std. (See Table 2) | PPM | |||||||||||||||||
| Operating Temperature | TOPR | -10 ~ +60 std. (See Table 2) | °C | |||||||||||||||||
| Storage Temperature | TSTG | -55 ~ +125 | °C | |||||||||||||||||
| Resistance | ESR | (See Table 1) | Ohms | |||||||||||||||||
| Mode of Operation | (See Table 1) | |||||||||||||||||||
| Shunt Capacitance | CO | 7.0 max. | pF | |||||||||||||||||
| Load Capacitance | CL | 20 std. (8 ~ 50 and Series avail.) | pF | |||||||||||||||||
| Drive Level | DL | 0.1 ~ 1.0 | mW | |||||||||||||||||
| Aging (First Year) | @ +25°C | ±5.0 | PPM/Y | |||||||||||||||||
| Insulation Resistance | IR | 500 (DC100 ±10V) min. | Mohm | |||||||||||||||||

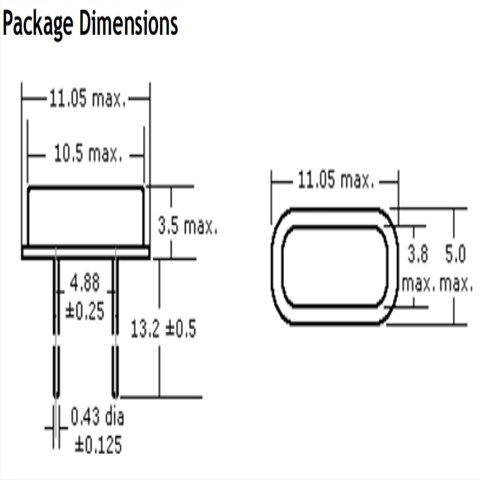

奥斯康利插件晶振,151-25.000M-SR-20HS-VS,25MHZ,151系列谐振器 尺寸图
