AXE3225WT,AXE3225WT‐50‐4G-75.000MHz,AXTAL物联网晶振,3225mm

AXE3225WT,AXE3225WT‐50‐4G-75.000MHz,AXTAL物联网晶振,3225mm

产品简介

AXE3225WT,AXE3225WT‐50‐4G-75.000MHz,AXTAL物联网晶振,3225mm,AXTAL石英振荡器,德国进口晶振,SPXO晶体振荡器,有源贴片晶振,OSC晶振,有源振荡器,3225mm振荡器,75MHZ晶振,尺寸3.2x2.5mm,频率75MHZ,输出HCMOS,低功耗晶振,低电压晶振,通信模块晶振,便携式设备晶振,无线局域网晶振,航空电子晶振.

产品详情

LH-1

CTS-1

AXE3225WT,AXE3225WT‐50‐4G-75.000MHz,AXTAL物联网晶振,3225mm,AXTAL石英振荡器,德国进口晶振,SPXO晶体振荡器,有源贴片晶振,OSC晶振,有源振荡器,3225mm振荡器,75MHZ晶振,尺寸3.2x2.5mm,频率75MHZ,输出HCMOS,低功耗晶振,低电压晶振,通信模块晶振,便携式设备晶振,无线局域网晶振,航空电子晶振.

AXE3225WT,AXE3225WT‐50‐4G-75.000MHz,AXTAL物联网晶振,3225mm特点:

SMD SPXO有源振荡器,带HCMOS输出,3.2x2.5 mm封装

宽工作温度范围-55°C至+125°C

低损耗低电压

LH-2

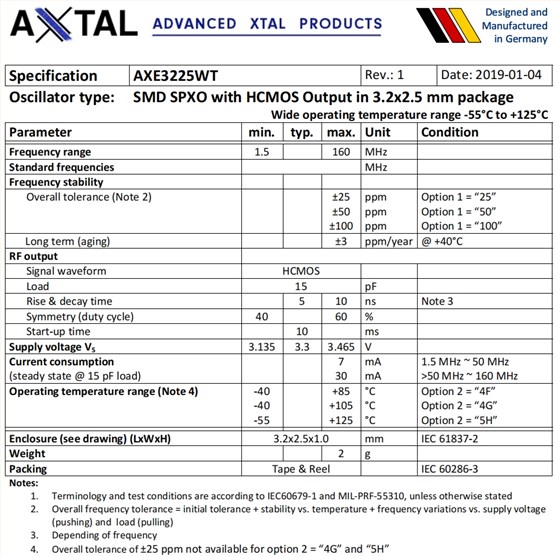

CTS-2AXE3225WT,AXE3225WT‐50‐4G-75.000MHz,AXTAL物联网晶振,3225mm 参数表

Parameter min. typ. max. Unit Condition
Frequency range
75
MHz
Standard frequencies MHz
Frequency stability
Overall tolerance (Note 2) ±25
±50
±100
ppm
ppm
ppm
Option 1 = “25”
Option 1 = “50”
Option 1 = “100”
Long term (aging) ±3 ppm/year @ +40°C
RF output
Signal waveform HCMOS
Load 15 pF
Rise & decay time 5 10 ns Note 3
Symmetry (duty cycle) 40 60 %
Start-up time 10 ms
Supply voltage VS 3.135 3.3 3.465 V
Current consumption
(steady state @ 15 pF load)
7
30
mA
mA
1.5 MHz ~ 50 MHz
>50 MHz ~ 160 MHz
Operating temperature range (Note 4) -40
-40
-55
+85
+105
+125
°C
°C
°C
Option 2 = “4F”
Option 2 = “4G”
Option 2 = “5H”
Enclosure (see drawing) (LxWxH) 3.2x2.5x1.0 mm IEC 61837-2
Weight 2 g
Packing Tape & Reel IEC 60286-3
LH-3

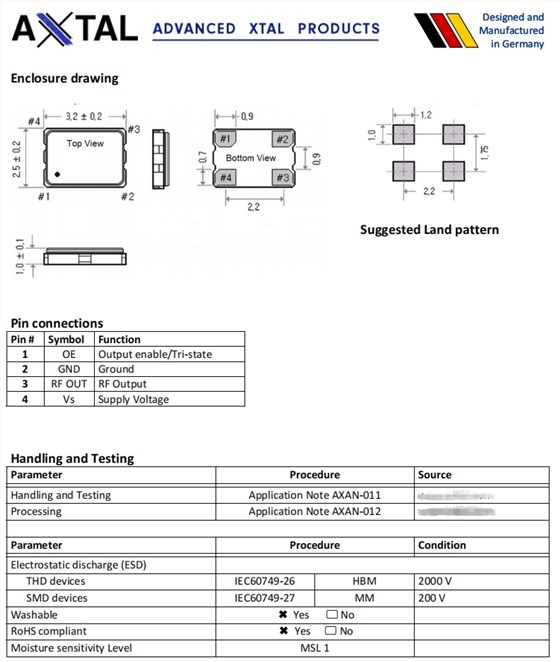

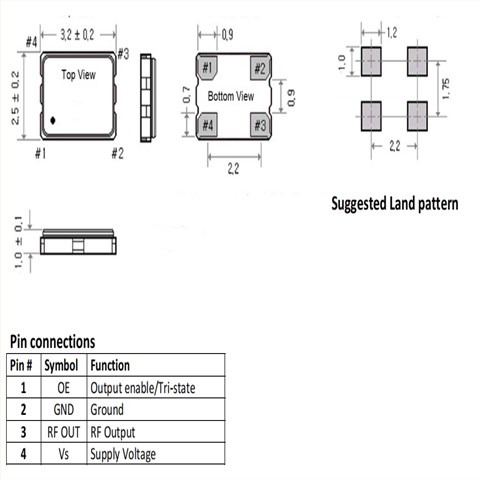

ECS-1AXE3225WT,AXE3225WT‐50‐4G-75.000MHz,AXTAL物联网晶振,3225mm 尺寸图

AXE3225WT AXE3225WT 1

AXE3225WT 2

AXE3225WT 3
