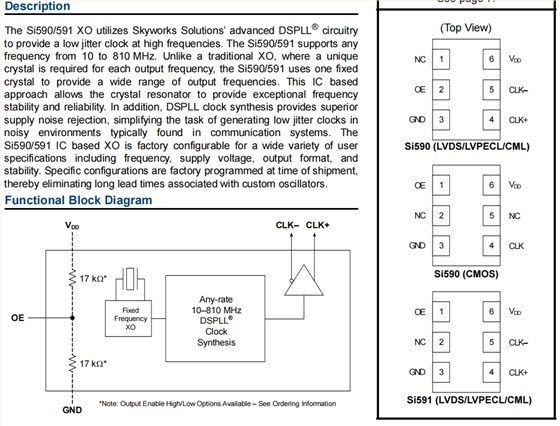

Si590/591 XO石英晶体振荡器采用Skyworks Solutions的先进DSPLL®电路以提供高频下的低抖动时钟。Si590/591支持任何频率为10至810MHz。不同于传统的XO每个输出频率都需要晶体,Si590/591使用一个固定的晶体,以提供宽范围的输出频率。此IC基于这种方法允许晶体谐振器提供特殊的频率稳定性和可靠性。此外,DSPLL时钟合成提供了卓越的性能电源噪声抑制,简化了在通信系统中常见的噪声环境.Si590低相位晶振,6GWIFI晶振,590CD26M0000DGR,思佳讯差分振荡器.
Si590低相位晶振,6GWIFI晶振,590CD26M0000DGR,思佳讯差分振荡器参数表
Parameter | Symbol | Test Condition | Min | Typ | Max | Units | ||||||||||||||||||||
Supply Voltage1 | VDD | 3.3 V option | 2.97 | 3.3 | 3.63 | V | ||||||||||||||||||||
2.5 V option | 2.25 | 2.5 | 2.75 | |||||||||||||||||||||||
1.8 V option | 1.71 | 1.8 | 1.89 | |||||||||||||||||||||||
Supply Current | IDD |
Output enabled LVPECL CML LVDS CMOS |
— — — — |
110 100 90 80 |
125 110 100 90 |
mA | ||||||||||||||||||||
Tristate mode | — | 60 | 75 | |||||||||||||||||||||||
Output Enable (OE)2 | VIH | 0.75 x VDD | — | — | V | |||||||||||||||||||||
VIL | — | — | 0.5 | |||||||||||||||||||||||
Operating Temperature Range | TA | –40 | — | 85 | ºC |
Parameter | Symbol | Test Condition | Min | Typ | Max | Units | ||||||||||||||||||||
Nominal Frequency1,2 | fO | LVPECL/LVDS/CML | 10 | — | 810 | MHz | ||||||||||||||||||||
CMOS | 10 | — | 160 | |||||||||||||||||||||||
Initial Accuracy | fi |
Measured at +25 °C at time of shipping |
— | ±1.5 | — | ppm | ||||||||||||||||||||
Total Stability | Note 3, second option code “D” | ±20 | ppm | |||||||||||||||||||||||
Note 3, second option code “C” | ±30 | ppm | ||||||||||||||||||||||||
Note 4, second option code “B” | — | — | ±50 | ppm | ||||||||||||||||||||||
Note 4, second option code “A” | — | — | ±100 | ppm | ||||||||||||||||||||||
Temperature Stability | second option code “D” | — | — | ±7 | ppm | |||||||||||||||||||||
second option code “C” | ±20 | ppm | ||||||||||||||||||||||||
second option code “B” | ±25 | ppm | ||||||||||||||||||||||||
second option code “A” | — | — | ±50 | ppm | ||||||||||||||||||||||
Powerup Time5 | tOSC | — | — | 10 | ms |
Parameter | Symbol | Test Condition | Min | Typ | Max | Units | ||||||||||||||||||||
LVPECL Output Option1 | VO | mid-level | VDD– 1.42 | VDD– 1.25 | V | |||||||||||||||||||||
VOD | swing (diff) | 1.1 | 1.9 | VPP | ||||||||||||||||||||||
VSE | swing (single-ended) | 0.55 | 0.95 | VPP | ||||||||||||||||||||||
LVDS Output Option2 | VO | mid-level | 1.125 | 1.20 | 1.275 | V | ||||||||||||||||||||
VOD | swing (diff) | 0.5 | 0.7 | 0.9 | VPP | |||||||||||||||||||||
CML Output Option2 | VO | 2.5/3.3 V option mid-level | — | VDD– 1.30 | — | V | ||||||||||||||||||||
1.8 V option mid-level | — | VDD– 0.36 | — | |||||||||||||||||||||||
VOD | 2.5/3.3 V option swing (diff) | 1.10 | 1.50 | 1.90 | VPP | |||||||||||||||||||||
1.8 V option swing (diff) | 0.35 | 0.425 | 0.50 | |||||||||||||||||||||||
CMOS Output Option3 | VOH | 0.8 x VDD | — | VDD | V | |||||||||||||||||||||
VOL | — | — | 0.4 | |||||||||||||||||||||||
Rise/Fall time (20/80%) | tR,tF | LVPECL/LVDS/CML | — | — | 350 | ps | ||||||||||||||||||||
CMOS with CL= 15 pF | — | 2 | — | ns | ||||||||||||||||||||||
Symmetry (duty cycle) | SYM |
LVPECL:VDD– 1.3 V (diff) LVDS:1.25 V (diff) CMOS:VDD/2 |
45 | — | 55 | % |
Si590低相位晶振,6GWIFI晶振,590CD26M0000DGR,思佳讯差分振荡器 尺寸图

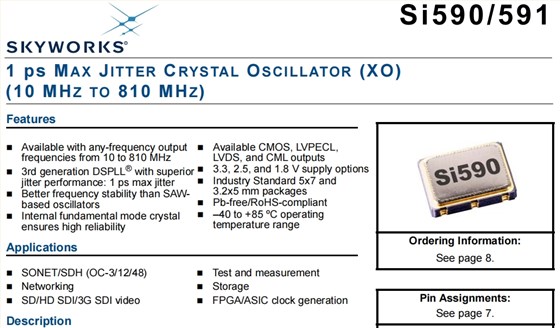

低耗能晶振产品特点:
可用于任何频率输出
频率从10到810兆赫
具有卓越性能的第三代DSPLL®
抖动性能:最大抖动1ps
比SAW振荡器具有更好的频率稳定性
内部基模晶体
确保高可靠性
可用的CMOS、LVPECL、LVDS和CML输出
3.3、2.5和1.8 V电源选项
行业标准5x7和3.2x5mm包装
无铅/符合RoHS
–40至+85ºC运行温度范围
