X1G006131000,日本爱普生晶振,6G光模块晶振,SG2016EGN差分有源振荡器，尺寸为2.00x1.60x0.73mm，频率为156.25MHz，输出逻辑LV-PECL，LV-PECL差分晶振，差分晶振，LV-PECL差分振荡器，低电压差分振荡器，低抖动差分晶振，低耗能差分晶振，低电流差分晶振，路由器差分晶振，数据中心应用差分晶振，高速转换器差分晶振，仪器设备差分晶振，6G光模块差分晶振，无线网络差分振荡器，网络设备专用差分晶振，有源石英晶振产品比较适合用于网络设备(路由器、交换机、光模块等)，测试和测量设备，工厂自动化，数据中心以及高速转换器，如ADC和DAC等领域。

6G将使网络通信流量呈指数级增长。6G通信网络要求高速宽频带，同时最大限度地减少噪音。这将实现与高频率，低抖动用于通信设备的参考时钟，其中将使用小尺寸光模块。SG2016EGN/SG2520EGN有源振荡器是非常受欢迎的SG3225EEN系列的下一代产品，提供相同的功能具有广泛的可用频率范围，低抖动和改进的频率容限的功能组合由于在更小的封装中使用了带有温度补偿的内部设计IC，因此性能更好。X1G006131000,日本爱普生晶振,6G光模块晶振,SG2016EGN差分有源振荡器.

LH-2

X1G006131000,日本爱普生晶振,6G光模块晶振,SG2016EGN差分有源振荡器参数表

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Maximum supply voltage

VCC

-0.3

4.0

Input voltage

Vin

-0.3

VCC+ 0.5

OE/terminal

Storage temperature range

T_stg

-55

+125

°C

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Supply voltage

VCC

2.375

2.5

2.625

Suffix: D

3.135

3.3

3.465

Suffix: C

Supply voltage

GND

0.0

Operating temperature range

T_use

-40

+25

+85

°C

Suffix: G

-40

+25

+105

°C

Suffix: H

ECL load condition

L_ECL

Terminated to VCC- 2.0 V

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Output frequency *1

156.25

MHz

Frequency tolerance *2

f_tol

-25

+25

×10-6

Suffix: D

-50

+50

×10-6

Suffix: J

Parameter	Symbol	Specification			Unit	Conditions
		Min.	Typ.	Max.
Startup time	t_str	-	-	10	ms	t = 0 at 90 % VCC
Current consumption	ICC	-	-	60	mA
Disable current	I_dis	-	-	35	mA	OE = GND
Stand-by current	I_std	-	-	30	μA	= GND, T_use Max. = +85 °C
		-	-	60	μA	= GND, T_use Max. = +105 °C
Rise time / Fall time	tr / tf	-	-	0.35	ns	20 % - 80 % of (VOH- VOL)
Symmetry	SYM	45	50	55	%	At output crossing point
Output voltage	VOH	VCC- 1.1	-	-	V	DC level
	VOL	-	-	VCC- 1.5	V
Differential swing	VSW	800	-	2 000	mV
Input voltage	VIH	70 % VCC	-	-	V	OE/terminal
	VIL	-	-	30 % VCC	V
Output disable time (OE)	tstp_oe	-	-	100	ns	Measured from the time OE pin crosses 30 % VCC
Output disable time (ST)	tstp_st	-	-	100	ns	Measured from the time pin crosses 30 % VCC
Output enable time (OE)	tsta_oe	-	-	500	ns	Measured from the time OE pin crosses 70 % VCC
Output enable time (ST)	tsta_st	-	-	10	ms	Measured from the time pin crosses 70 % VCC
Phase jitter Offset frequency fo < 50 MHz: 12 kHz to 5 MHz fo≥50 MHz: 12 kHz to 20 MHz	tPJ	-	-	250	fs	fo < 100 MHz
		-	-	90	fs	100 MHz≤fo≤156 MHz
		-	-	70	fs	156 MHz < fo≤212 MHz
		-	-	60	fs	212 MHz < fo≤391 MHz
		-	-	50	fs	fo > 391 MHz

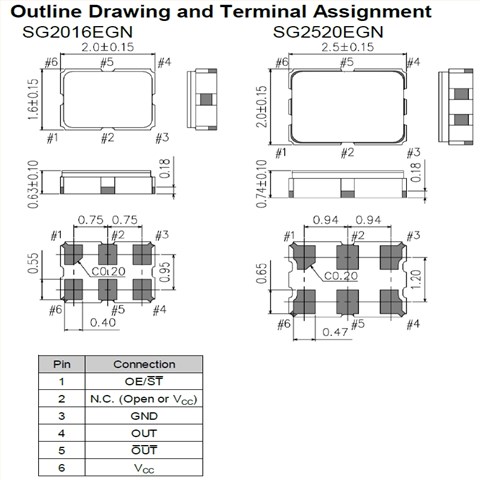

X1G006131000,日本爱普生晶振,6G光模块晶振,SG2016EGN差分有源振荡器 尺寸图

产品特性：

有源晶体振荡器(SPXO)

频率范围(fo): 25MHz至500MHz

输出:LVPECL

供电电压:2.5 V。/ 3.3 V类型

工作温度:-40℃~ +105℃

低相位抖动:44fs(fo = 156.25MHz)更多相关日本爱普生晶振型号
