6G路由器晶振,瑞萨LVDS振荡器4MA,4MA150000Z4AACTGI8,尺寸5.0x3.2mm,频率150MHZ,输出逻辑LVDS,5032mm差分晶振,差分有源晶振,LVDS输出晶振,LVDS差分振荡器,贴片差分晶振,OSC差分晶振,低电压差分晶振,低损耗差分振荡器,低抖动差分晶振,低功耗差分振荡器,低抖动差分晶振,低相位差分晶振,高品质差分晶振,高性能差分振荡器,6G路由器专用差分晶振,智能家居晶振,光模块差分晶振,通讯模块差分振荡器,通信设备差分晶振,具有低抖动高性能的特点.
OSC晶振产品被广泛应用智能家居,6G路由器,通信设备,还可广泛用于光模块,仪器设备,无线网络,小型设备等领域。6G路由器晶振,瑞萨LVDS振荡器4MA,4MA150000Z4AACTGI8.

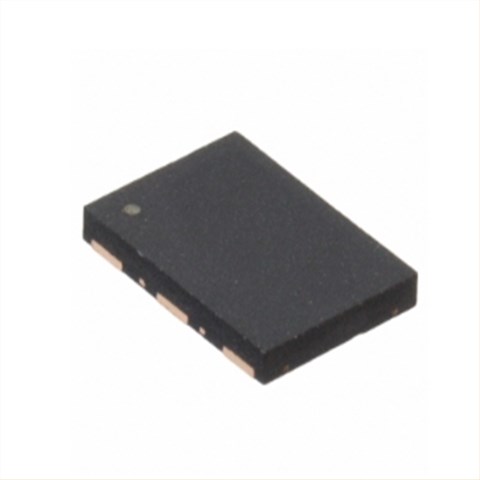

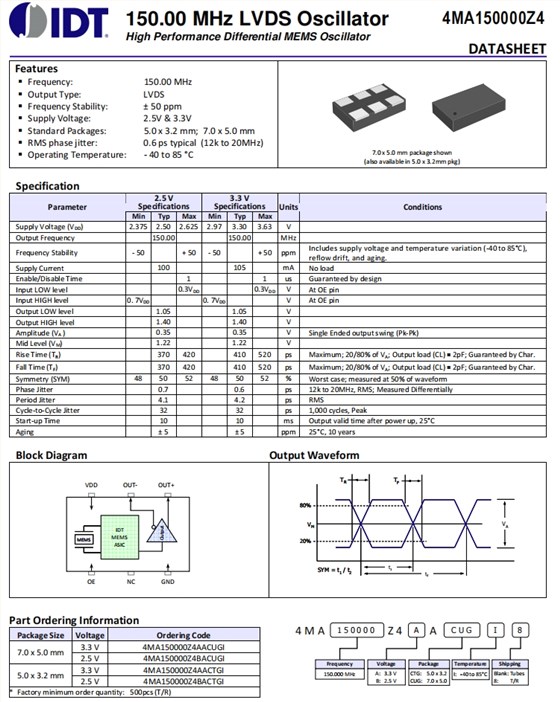

6G路由器晶振,瑞萨LVDS振荡器4MA,4MA150000Z4AACTGI8参数表
Parameter |
2.5 V Specifications |
3.3 V Specifications |
Units | Conditions | |||||||||||||||||||||||||||||||||||||||||||
Min | Typ | Max | Min | Typ | Max | ||||||||||||||||||||||||||||||||||||||||||
Supply Voltage (VDD) | 2.375 | 2.50 | 2.625 | 2.97 | 3.30 | 3.63 | V | ||||||||||||||||||||||||||||||||||||||||
Output Frequency | 150.00 | 150.00 | MHz | ||||||||||||||||||||||||||||||||||||||||||||
Frequency Stability | - 50 | + 50 | - 50 | + 50 | ppm |
Includes supply voltage and temperature variation (-40 to 85°C), reflow drift, and aging. |
|||||||||||||||||||||||||||||||||||||||||
Supply Current | 100 | 105 | mA | No load | |||||||||||||||||||||||||||||||||||||||||||
Enable/Disable Time | 1 | 1 | us | Guaranteed by design | |||||||||||||||||||||||||||||||||||||||||||
Input LOW level | 0.3VDD | 0.3VDD | V | At OE pin | |||||||||||||||||||||||||||||||||||||||||||
Input HIGH level | 0. 7VDD | 0. 7VDD | V | At OE pin | |||||||||||||||||||||||||||||||||||||||||||
Output LOW level | 1.05 | 1.05 | V | ||||||||||||||||||||||||||||||||||||||||||||
Output HIGH level | 1.40 | 1.40 | V | ||||||||||||||||||||||||||||||||||||||||||||
Amplitude (VA) | 0.35 | 0.35 | V | Single Ended output swing (Pk-Pk) | |||||||||||||||||||||||||||||||||||||||||||
Mid Level (VM) | 1.22 | 1.22 | V | ||||||||||||||||||||||||||||||||||||||||||||
Rise Time (TR) | 370 | 420 | 410 | 520 | ps | Maximum; 20/80% of VA; Output load (CL) = 2pF; Guaranteed by Char. | |||||||||||||||||||||||||||||||||||||||||
Fall Time (TF) | 370 | 420 | 410 | 520 | ps | Maximum; 20/80% of VA; Output load (CL) = 2pF; Guaranteed by Char. | |||||||||||||||||||||||||||||||||||||||||
Symmetry (SYM) | 48 | 50 | 52 | 48 | 50 | 52 | % | Worst case; measured at 50% of waveform | |||||||||||||||||||||||||||||||||||||||
Phase Jitter | 0.7 | 0.6 | ps | 12k to 20MHz, RMS; Measured Differentially | |||||||||||||||||||||||||||||||||||||||||||
Period Jitter | 4.1 | 4.2 | ps | RMS | |||||||||||||||||||||||||||||||||||||||||||
Cycle-to-Cycle Jitter | 32 | 32 | ps | 1,000 cycles, Peak | |||||||||||||||||||||||||||||||||||||||||||
Start-up Time | 10 | 10 | ms | Output valid time after power up, 25°C | |||||||||||||||||||||||||||||||||||||||||||
Aging | ± 5 | ± 5 | ppm | 25°C, 10 years |

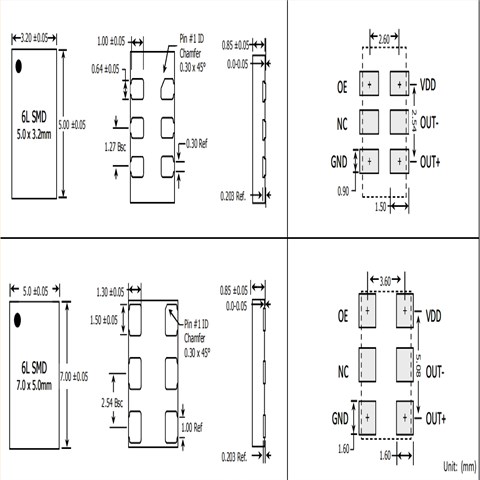

6G路由器晶振,瑞萨LVDS振荡器4MA,4MA150000Z4AACTGI8 尺寸图产品特性:
频率:150.00MHz
输出类型:LVDS差分晶振
频率稳定性:±50ppm
电源电压:2.5V和3.3V
标准包装:5.0x3.2mm;7.0x5.0毫米
RMS相位抖动:典型值为0.6 ps(12k至20MHz)
工作温度:-40至85°C
