思佳讯低抖动晶振-591AD150M000DG-Si591差分晶振-6G网络晶振,尺寸7.0×5.0mm,频率125MHZ,输出逻辑LVPECL,电压3.3V,7050mm差分晶振,贴片差分振荡器,有源差分晶体振荡器,LVPECL输出振荡器,LVPECL差分晶振,OSC差分晶振,SMD差分晶振,智能家居差分晶振,物联网专用差分晶振,娱乐设备差分晶振,人工智能差分晶振,航空电子专用差分晶振,6G电信差分晶振,测试测量差分晶振,路由器差分晶振,高质量差分晶振,高性能差分晶振,低抖动差分晶振,低功耗差分晶振,低电压差分晶振,具有高性能低抖动低电压的特点.
思佳讯低抖动晶振-591AD150M000DG-Si591差分晶振-6G网络晶振 参数表
Parameter | Symbol | Test Condition | Min | Typ | Max | Units | ||||||||||||||||||||
Supply Voltage1 | VDD | 3.3 V option | 2.97 | 3.3 | 3.63 | V | ||||||||||||||||||||
2.5 V option | 2.25 | 2.5 | 2.75 | |||||||||||||||||||||||
1.8 V option | 1.71 | 1.8 | 1.89 | |||||||||||||||||||||||
Supply Current | IDD |
Output enabled LVPECL CML LVDS CMOS |
— — — — |
110 100 90 80 |
125 110 100 90 |
mA | ||||||||||||||||||||
Tristate mode | — | 60 | 75 | |||||||||||||||||||||||
Output Enable (OE)2 | VIH | 0.75 x VDD | — | — | V | |||||||||||||||||||||
VIL | — | — | 0.5 | |||||||||||||||||||||||
Operating Temperature Range | TA | –40 | — | 85 | ºC |
Parameter | Symbol | Test Condition | Min | Typ | Max | Units | ||||||||||||||||||||
Nominal Frequency1,2 | fO | LVPECL/LVDS/CML | 10 | — | 810 | MHz | ||||||||||||||||||||
CMOS | 10 | — | 160 | |||||||||||||||||||||||
Initial Accuracy | fi |
Measured at +25 °C at time of shipping |
— | ±1.5 | — | ppm | ||||||||||||||||||||
Total Stability | Note 3, second option code “D” | ±20 | ppm | |||||||||||||||||||||||
Note 3, second option code “C” | ±30 | ppm | ||||||||||||||||||||||||
Note 4, second option code “B” | — | — | ±50 | ppm | ||||||||||||||||||||||
Note 4, second option code “A” | — | — | ±100 | ppm | ||||||||||||||||||||||
Temperature Stability | second option code “D” | — | — | ±7 | ppm | |||||||||||||||||||||
second option code “C” | ±20 | ppm | ||||||||||||||||||||||||
second option code “B” | ±25 | ppm | ||||||||||||||||||||||||
second option code “A” | — | — | ±50 | ppm | ||||||||||||||||||||||
Powerup Time5 | tOSC | — | — | 10 | ms |

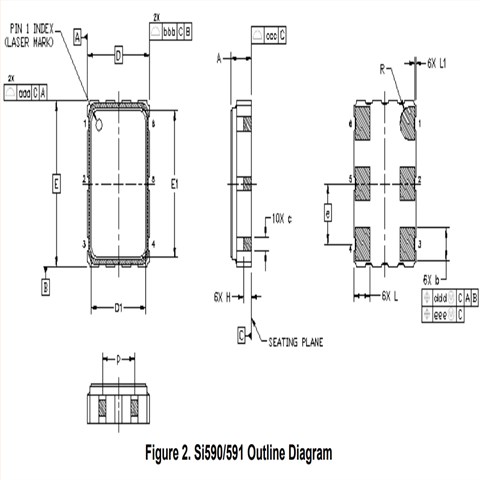

思佳讯低抖动晶振-591AD150M000DG-Si591差分晶振-6G网络晶振尺寸图

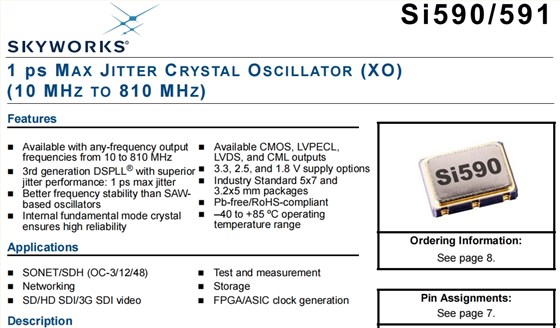

有源晶体振荡器产品特性:
可用于任何频率输出频率从10到810兆赫
具有卓越性能的第三代DSPLL®抖动性能:最大抖动1ps
比SAW振荡器具有更好的频率稳定性
内部基模晶体确保高可靠性
可用的CMOS、LVPECL、LVDS和CML输出
3.3、2.5和1.8 V电源选项
行业标准5x7和3.2x5 mm包装
无铅/符合RoHS
–40至+85ºC运行温度范围
