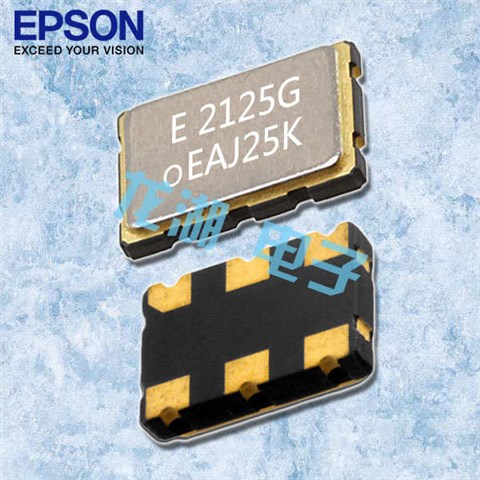

EPSON差分贴片晶振SG3225HBN,6G放大器晶振,X1G0051410005，尺寸为3.2*2.5mm,频率为125MHZ,输出逻辑HCSL，差分晶体振荡器，进口有源差分晶振，OSC差分晶振，HCSL差分输出晶振，交换机差分振荡器，低电压差分晶振，低相位差分振荡器，低抖动差分晶振，6G放大器差分晶振，6G模块差分振荡器，通信产品差分晶振，125MHZ差分晶振，产品具备高质量低抖动低电压的特点。

差分贴片晶振是目前行业中公认高技术，高要求的一款晶体振荡器，是指输出差分信号使用2种相位彼此完全相反的信号,从而消除了共模噪声,并产生一个更高性能的系统。差分晶振一般为六脚贴片，输出类型分为好几种,LVDS,LV-PECL，HCSL具有低电平,低抖动，低功耗，低功耗等特性。EPSON差分贴片晶振SG3225HBN,6G放大器晶振,X1G0051410005.

LH-2

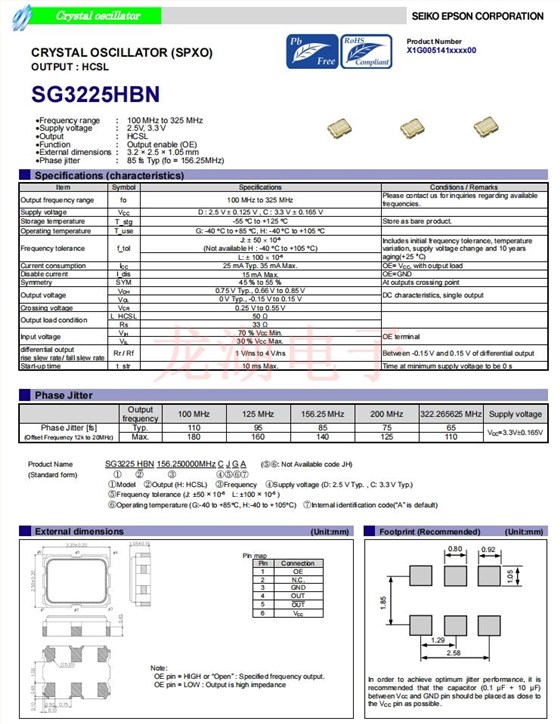

EPSON差分贴片晶振SG3225HBN,6G放大器晶振,X1G0051410005参数表

Specifications (characteristics)

Item

Symbol

Specifications

Conditions / Remarks

Output frequency range

125MHz

Please contact us for inquiries regarding available
frequencies.

Supply voltage

VCC

D : 2.5 V±0.125 V , C : 3.3 V±0.165 V

Storage temperature

T_stg

-55°C to +125°C

Store as bare product.

Operating temperature

T_use

G: -40°C to +85°C , H: -40°C to +105°C

Frequency tolerance

f_tol

J:±50×10-6
(Not available H : -40°C to +105°C)

Includes initial frequency tolerance, temperature
variation, supply voltage change and 10 years
aging(+25 °C)

L:±100×10-6

Current consumption

ICC

25 mATyp. 35 mA Max.

OE= VCC, with output load

Disable current

I_dis

15 mA Max.

OE=GND

Symmetry

SYM

45 % to 55 %

At outputs crossing point

Output voltage

VOH

0.75 V Typ., 0.66 V to 0.85 V

DC characteristics, single output

VOL

0 V Typ., -0.15 V to 0.15 V

Crossing voltage

VCR

0.25 V to 0.55 V

Output load condition

L_HCSL

50 Ω

33 Ω

Input voltage

VIH

70 % VCCMin.

OE terminal

VIL

30 % VCCMax.

differential output
rise slew rate/ fall slew rate

Rr / Rf

1 V/ns to 4 V/ns

Between -0.15 V and 0.15 V of differential output

Start-up time

t_str

10 ms Max.

Time at minimum supply voltage to be 0 s

Phase Jitter

Output
frequency

100 MHz

125 MHz

156.25 MHz

200 MHz

322.265625 MHz

Supply voltage

Phase Jitter [fs]
(Offset Frequency 12k to 20MHz)

Typ.

110

VCC=3.3V±0.165V

Max.

180

160

140

125

110

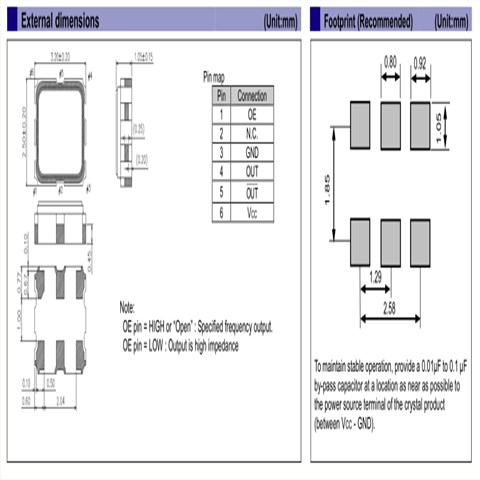

EPSON差分贴片晶振SG3225HBN,6G放大器晶振,X1G0051410005 尺寸图

有源晶振产品特性：

频率范围:100mhz至325mhz

电源电压:2.5V, 3.3 V

输出:HCSL

功能:输出使能(OE)

外部尺寸:3.2×2.5×1.05mm

相位抖动:85 fs类型(fo = 156.25MHz)
