Renesas高性能晶振,XLQ725148.500000I,LVPECL输出低功耗晶振,进口晶振,Renesas瑞萨电子晶振,XL系列晶振,编码为:XLQ725148.500000I,频率为:148.500MHz,小体积晶振尺寸:7.0x5.0mm,LVPECL输出差分晶振,六脚贴片晶振,石英晶振,有源晶振,石英晶体振荡器。Renesas XL设备(XO和VCXO选项)是超精密晶体振荡器,具有超过12 kHz到20MHz带宽的典型750到890fs相位抖动。XL系列晶体振荡器从0.750MHz到1350MHz到1350MHz,采用一系列专有的asic,重点关注降噪技术。三阶西格玛调制器将噪声降低到可与传统的散装石英和锯纹波振荡器相媲美的水平。XL设备具有短、低成本、低噪声、频率范围广、优异的环境性能,是传统技术的优良选择。XL(XO选项)设备的稳定性紧密为±20ppm,而XL(VCXO选项)设备的±为50ppmAPR。任何一种选项都可以为标准频率和自定义频率提供非常快速的交付。广泛应用于:通讯设备,机顶盒、光端机、安防设备、路由器/交换机、仪器仪表、航空航天电子,光纤通信,10G以太网等应用。
Renesas高性能晶振,XLQ725148.500000I,LVPECL输出低功耗晶振,参数表
Parameter
Symbol
Condition
Min
Typ
Max
Units
Output Frequency Range
FOUTR
148.5
MHz
Frequency Stability
Temperature = -20°C to +70°C
±20
±100
ppm
Temperature = -40°C to +85°C
±25
±100
ppm
Aging (1styear)
Ta = 25°C
3
Aging (10 years)
Ta = 25°C
10
Output Load
TOVDD- 2.0V
50
Ohms
Start-up Time
TST
Output valid time after VDD meets
minimum specified level
10
ms
Output Rise Time
20% to 80% VPP
400
ps
Output Fall Time
80% to 20% VPP
400
ps
Output Clock Duty Cycle
TDTCY
50%VP-P
45
55
%
Output Enable/ Disable Time
TOE
100
ns
Period Jitter, RMS
JPER
Frequency = 156.25MHz
5.80
ps
Random Jitter
RJ
Frequency = 156.25MHz
Per MJSQ spec (Methodologies for
Jitter and Signal Quality specifications)
1.29
ps
Deterministic Jitter
DJ
9.3
ps
Total Jitter
TJ
27.7
ps
Phase Jitter (12kHz – 20MHz)
φJITTER
Common Frequencies
860
fs
Phase Noise Performance
Frequency = 156.25MHz
φNOISE
100Hz of Carrier
-80
dBc/Hz
1kHz of Carrier
-115
dBc/Hz
10kHz of Carrier
-117
dBc/Hz
100kHz of Carrier
-121
dBc/Hz
1MHz of Carrier
-142
dBc/Hz
10MHz of Carrier
-150
dBc/Hz
Output Frequency (Common)
FOUT
100MHz, 106.25MHz, 1258MHz, 150MHz, 155.52MHz, 156.25MHz, 200MHz,212.5MHz, 250MHz, 300MHz, 312.5MHZ, 400MHz,(Contact IDT for additional frequencies)

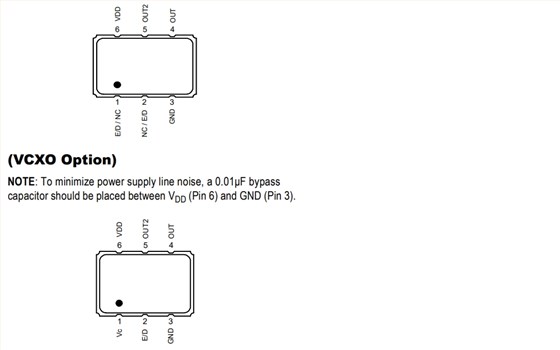

Renesas高性能晶振,XLQ725148.500000I,LVPECL输出低功耗晶振,尺寸图
Renesas高性能晶振,XLQ725148.500000I,LVPECL输出低功耗晶振
产品特性:
输出类型:LVDS、LVPECL、LVCMOS
相位抖动(12kHz至20MHz):典型750fs至890fs
电源电压:2.5V或3.3V
程序包选项:
3.2×2.5×1.0 mm(不适用于VCXO)
5.0×3.2×1.2毫米
7.0×5.0×1.3毫米
工作温度:-20°C至+70°C
频率稳定性选项:±20、±25、±50或±100ppm(仅限XO)
±50ppm APR(仅限VCXO)
工作温度:-40°C至+85°C
频率稳定性选项:±25、±50或±100ppm(仅限XO)
±50ppm APR(仅限VCXO)石英晶体振荡器
工作温度:-40°C至+105°C(仅限XO)
频率稳定性选项:±50或±100ppm
从0.5VDC到VDD(仅限VCXO)的85ppm/V的kV
Vc范围的线性度优于±10%
