6G路由器晶振,NP2520SAB-156.25MHZ-NSC5326A,NDK有源LVPECL晶振

LH-1

6G路由器晶振,NP2520SAB-156.25MHZ-NSC5326A,NDK有源LVPECL晶振，尺寸为2.5*2.0mm,频率156.25MHZ，输出逻辑LVPECL，差分输出信号LV-PECL，LVPECL差分振荡器，差分贴片晶振，低电压差分振荡器，低功耗差分晶振，低抖动差分晶振，低耗能差分晶振，低相位差分振荡器，低相噪差分晶振，高频差分晶振，156.25MHZ差分振荡器，仪器设备差分晶振，6G光模块差分晶振，无线网络差分振荡器，网络专用差分晶振，6G路由器专用差分晶振，小型设备专用差分晶振，有源振荡器产品具有低电压低抖动低功耗的特点，非常适合用于6G兼容设备，光通信、光收发器，WDM设备，可视化智能家居，娱乐设备，数字视频，仪器仪表以及光模块等领域。6G路由器晶振,NP2520SAB-156.25MHZ-NSC5326A,NDK有源LVPECL晶振.

LH-2

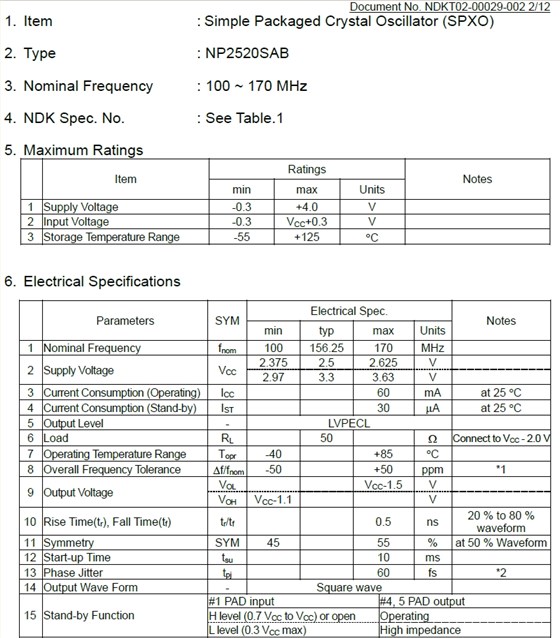

6G路由器晶振,NP2520SAB-156.25MHZ-NSC5326A,NDK有源LVPECL晶振参数表

Item

Ratings

Notes

min

max

Units

Supply Voltage

-0.3

+4.0

Input Voltage

-0.3

VCC+0.3

Storage Temperature Range

-55

+125

。C

Parameters

SYM

Electrical Spec.

Notes

min

typ

max

Units

Nominal Frequency

fnom

156.25

MHz

Supply Voltage

VCC

2.375

2.5

2.625

2.97

3.3

3.63

Current Consumption (Operating)

ICC

at 25。C

Current Consumption (Stand-by)

IST

μA

at 25。C

Output Level

LVPECL

Load

Connect to VCC- 2.0 V

Operating Temperature Range

Topr

-40

+85

。C

Overall Frequency Tolerance

Δf/fnom

-50

+50

ppm

Output Voltage

VOL

VCC- 1.5

VOH

VCC- 1.1

Rise Time(tr), Fall Time(tf)

tr/tf

0.5

20 % to 80 %
waveform

Symmetry

SYM

at 50 % Waveform

Start-up Time

tsu

Phase Jitter

tpj

Output Wave Form

Square wave

Stand-by Function

#1 PAD input

#4, 5 PAD output

H level (0.7 VCCto VCC) or open

Operating

L level (0.3 VCCmax)

High impedance

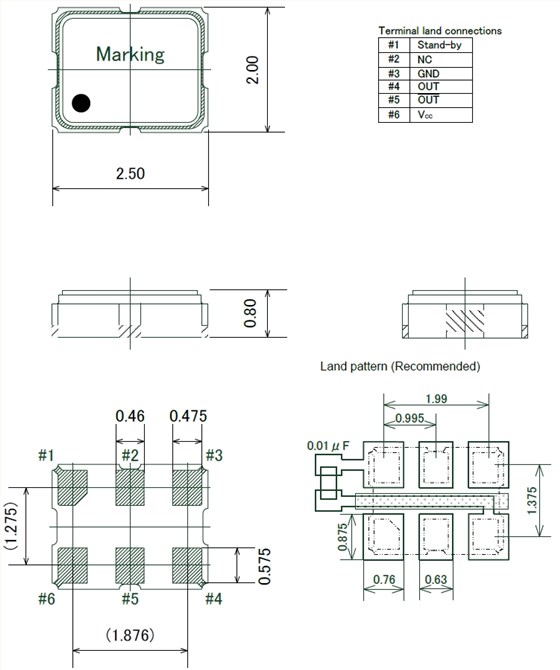

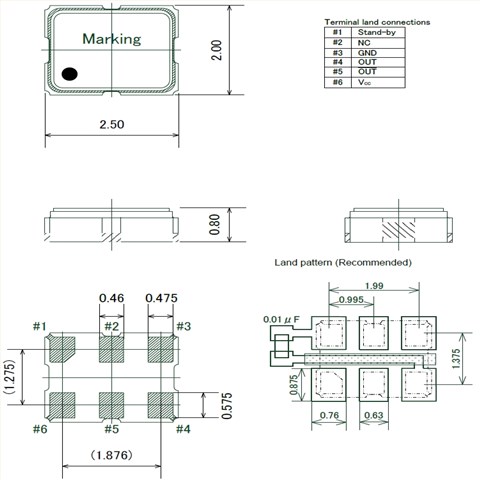

6G路由器晶振,NP2520SAB-156.25MHZ-NSC5326A,NDK有源LVPECL晶振 尺寸图

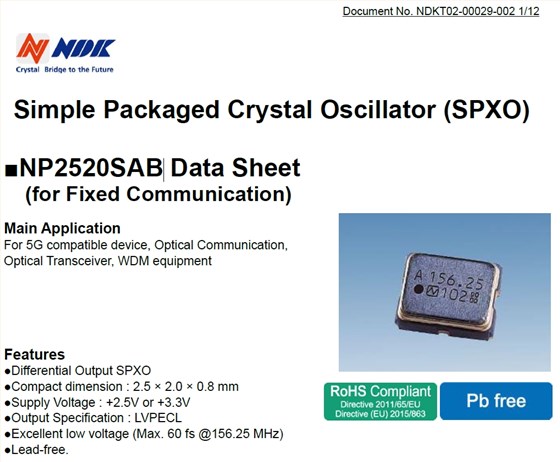

产品特性：

LVPECL差分输出SPXO有源晶振

紧凑:2.5 x 2.0 x 0.8毫米

电源电压:+2.5V或者+3.3V

低相位抖动:典型。156.25MHz时60fs

无铅

更多相关日本NDK晶振型号

Model	Nominal frequency[MHz]	Specification number	Manufacturer	Package size(LxW)[mm]	Output specification	Operating temperature rang[℃]	Storage temperature range[℃]	Supply voltage[V]
NP2520SB	156.25MHZ	NSC5301A	NDK晶振	2.5x2.0	LVDS	-40~+85	-55~+125	+2.5±0.125
NP2520SB	156.25MHZ	NSC5301B	NDK晶振	2.5x2.0	LVDS	-40~+85	-55~+125	+3.3±0.33
NP2520SAB	156.25MHZ	NSC5326A	NDK晶振	2.5x2.0	LVPECL	-40~+85	-55~+125	+2.5±0.125
NP2520SAB	156.25MHZ	NSC5326B	NDK晶振	2.5x2.0	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP2520SBB	156.25MHZ	NSC5327A	NDK晶振	2.5x2.0	LVDS	-40~+85	-55~+125	+2.5±0.125
NP2520SBB	156.25MHZ	NSC5327B	NDK晶振	2.5x2.0	LVDS	-40~+85	-55~+125	+3.3±0.33
NP3225SA	100MHZ	NSC5080A	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+2.5±0.125
NP3225SA	122.88MHZ	NSC5080A	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+2.5±0.125
NP3225SA	125MHZ	NSC5080A	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+2.5±0.125
NP3225SA	156.25MHZ	NSC5080A	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+2.5±0.125
NP3225SA	175MHZ	NSC5080A	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+2.5±0.125
NP3225SA	100MHZ	NSC5341B	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP3225SA	122.88MHZ	NSC5341B	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP3225SA	125MHZ	NSC5341B	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP3225SA	156.25MHZ	NSC5341B	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP3225SA	175MHZ	NSC5341B	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP3225SA	100MHZ	NSC5189A	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+2.5±0.125
NP3225SA	122.88MHZ	NSC5189A	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+2.5±0.125
NP3225SA	125MHZ	NSC5189A	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+2.5±0.125
NP3225SA	156.25MHZ	NSC5189A	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+2.5±0.125
NP3225SA	175MHZ	NSC5189A	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+2.5±0.125
NP3225SA	100MHZ	NSC5342B	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+3.3±0.33
NP3225SA	122.88MHZ	NSC5342B	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+3.3±0.33
NP3225SA	125MHZ	NSC5342B	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+3.3±0.33
NP3225SA	156.25MHZ	NSC5342B	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+3.3±0.33
NP3225SA	175MHZ	NSC5342B	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+3.3±0.33
NP3225SA	200MHZ	NSC5235A	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+2.5±0.125
NP3225SA	212.5MHZ	NSC5235A	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+2.5±0.125
NP3225SA	200MHZ	NSC5235B	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP3225SA	212.5MHZ	NSC5235B	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP3225SA	200MHZ	NSC5237A	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+2.5±0.125
NP3225SA	212.5MHZ	NSC5237A	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+2.5±0.125
NP3225SA	200MHZ	NSC5237B	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+3.3±0.33
NP3225SA	212.5MHZ	NSC5237B	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+3.3±0.33
NP3225SB	50MHZ	NSC5343A	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+2.5±0.125
NP3225SB	100MHZ	NSC5343A	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+2.5±0.125
NP3225SB	125MHZ	NSC5343A	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+2.5±0.125
NP3225SB	135MHZ	NSC5343A	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+2.5±0.125
NP3225SB	148MHZ	NSC5343A	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+2.5±0.125
NP3225SB	156.25MHZ	NSC5343A	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+2.5±0.125
NP3225SB	200MHZ	NSC5236A	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+2.5±0.125
NP3225SB	50MHZ	NSC5343B	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+3.3±0.33
NP3225SB	100MHZ	NSC5343B	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+3.3±0.33
NP3225SB	125MHZ	NSC5343B	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+3.3±0.33
NP3225SB	135MHZ	NSC5343B	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+3.3±0.33
NP3225SB	148MHZ	NSC5343B	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+3.3±0.33
NP3225SB	156.25MHZ	NSC5343B	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+3.3±0.33
NP3225SB	200MHZ	NSC5236B	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+3.3±0.33
NP3225SB	50MHZ	NSC5344A	NDK晶振	3.2x2.5	LVDS	-40~+105	-55~+125	+2.5±0.125
NP3225SB	100MHZ	NSC5344A	NDK晶振	3.2x2.5	LVDS	-40~+105	-55~+125	+2.5±0.125
NP3225SB	125MHZ	NSC5344A	NDK晶振	3.2x2.5	LVDS	-40~+105	-55~+125	+2.5±0.125
NP3225SB	135MHZ	NSC5344A	NDK晶振	3.2x2.5	LVDS	-40~+105	-55~+125	+2.5±0.125
