6G网络差分晶振,爱普生SPXO振荡器MG7050HAN,X1M0004310011，尺寸为7.00x5.00x1.60mm，频率为156.25MHz，输出逻辑HCSL，HCSL输出差分晶振，有源差分晶振，日本进口差分晶振，HCSL差分晶体振荡器，高频差分晶振，低抖动差分晶振，低相噪差分晶振，低相位差分晶振，低功耗差分晶振，6G无线设备差分晶振，低电压差分晶振，网络设备差分晶振，7050mm差分晶振，产品具备低抖动低相位低电压的特点，可满足各大应用程序的需求，好比参考时钟包括服务器，网络等领域。

产品为HCSL高频石英晶体振荡器使用SAW的基本振荡输出谐振器。这样实现了低抖动和低抖动噪声频率在100 ~ 200mhz，且适用参考时钟包括服务器、存储和网络，以及仪器仪表等。6G网络差分晶振,爱普生SPXO振荡器MG7050HAN,X1M0004310011.

LH-2

6G网络差分晶振,爱普生SPXO振荡器MG7050HAN,X1M0004310011参数表

Item	Symbol	Specifications		Conditions / Remarks
Output frequency range	f0	156.25 MHz		Please contact us about available frequencies.
Output frequency range	f0	100MHz , 125MHz , 156.25MHz , 200MHz		Standard frequency
Supply voltage	VCC	D : 2.5V ± 0.125V	C : 3.3V ± 0.33V	VCC1 and VCC2 need same voltage
Storage temperature	T_stg	-55°C to +125°C		Store as bare product after packing
Operating temperature	T_use	A : 0°C to +70°C B : -20°C to +70°C D : -5°C to +85°C
Frequency tolerance *1	f_tol	J : ± 50 × 10-6 L : ±100 × 10-6
Current consumption	ICC	55 mA Typ. 84 mA Max.	60 mA Typ. 90 mA Max.	2-outputs	OE = VCC with L_HCSL
Current consumption	ICC	95 mA Typ. 128 mA Max.	100 mA Typ. 136 mA Max.	4-outputs	OE = VCC with L_HCSL
Disable current	I_dis	11 mA Typ. 23 mA Max.	12 mA Typ. 25 mA Max.	2-outputs	OE = GND
Disable current	I_dis	15 mA Typ. 28 mA Max.	16 mA Typ. 30 mA Max.	4-outputs	OE = GND
Symmetry	SYM	45%to 55%		At outputs crossing point
Output voltage	VOH	0.66 V to 0.85 mV		DC characteristics
Output voltage	VOL	-0.15 V to 0.15 V		DC characteristics
Output load condition	L_HCSL	50Ω or 42.2Ω, with CL = 2pF, Rs = 33Ω or 27Ω
Input voltage	VIH	70% VCCMin.		OE and ZSEL terminals
Input voltage	VIL	30% VCCMax.		OE and ZSEL terminals
Rise time / Fall time	Rr / Rf	1 V/ns to 4 V/ns		Between -0.15 V and 0.15 V of differential output.
Start-up time	t_str	5 ms Typ., 10 ms Max.		Time at minimum supply voltage to be 0 s
Phase Jitter	tPJ	0.19 ps Typ.	0.16 ps Typ.	f0= 100MHz	Offset frequency: 12kHz to 20MHz
		0.18 ps Typ.	0.15 ps Typ.	f0= 125MHz
		0.16 ps Typ.	0.13 ps Typ.	f0= 156.25MHz
		0.14 ps Typ.	0.12 ps Typ.	f0= 200MHz
		0.3 ps Max.
Skew	t_skew	20ps Typ. 50ps Max.		FSEL = H
Aging	f_aging	N : ± 10 × 10-6/ year Max.		First year		+25°C, VCC= 2.5V , 3.3V
Aging	f_aging	A : Included in Frequency tolerance *2		10 years		+25°C, VCC= 2.5V , 3.3V

6G网络差分晶振,爱普生SPXO振荡器MG7050HAN,X1M0004310011 尺寸图

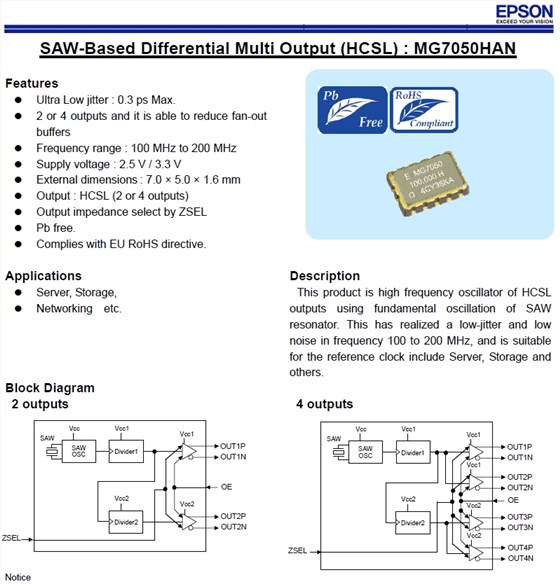

有源晶体振荡器产品特性：

超低抖动:0.3 ps最大值。

2路或4路输出，能够减少扇出

缓冲区

频率范围:100mhz ~ 200mhz

供电电压:2.5 V / 3.3 V

外形尺寸:7.0 × 5.0 × 1.6 mm

输出:HCSL(2或4个输出)

输出阻抗由ZSEL选择

无铅。

符合欧盟RoHS指令。
