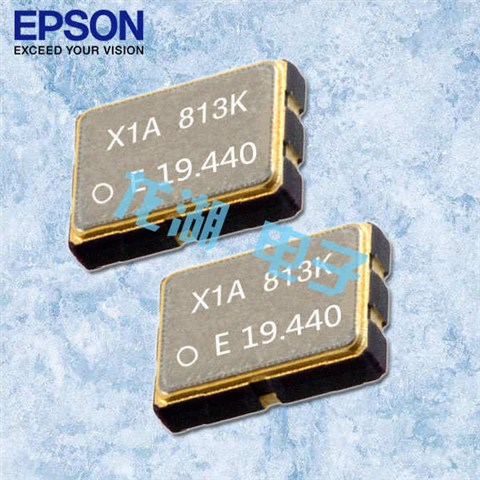

爱普生LVDS晶振SG3225VEN,X1G0053510011,6G基站晶振

LH-1

爱普生LVDS晶振SG3225VEN,X1G0053510011,6G基站晶振，尺寸为3.2*2.5mm，频率为100MHZ，输出逻辑LVDS，LVDS输出晶振，贴片差分晶振，低相噪差分晶振，低抖动差分晶振，100MHZ差分晶振，有源差分晶振，5G将使通信流量呈指数级增长。5G通信网络要求高速宽频带，同时把噪音降到最低。这可以通过高频率实现用于通信设备的低抖动参考时钟。使用上面的XO，客户可以输入一个高频率参考(高达500mhz)与极低的相位抖动和功率，从一个基本模式晶体实现极好的相位噪声。

OSC晶振产品常常用于网络设备(路由器、交换机、光模块等)，数据中心，测试和测量设备，工厂自动化，高速转换器，如ADC和DAC，以及通信产品等领域。爱普生LVDS晶振SG3225VEN,X1G0053510011,6G基站晶振.

LH-2

爱普生LVDS晶振SG3225VEN,X1G0053510011,6G基站晶振 参数表

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Maximum supply voltage

VCC

-0.5

fo≤200 MHz

-0.5

fo > 200 MHz

Input voltage

Vin

-0.5

VCC+ 0.5

OE terminal

Storage temperature range

T_stg

-55

125

ºC

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Supply voltage

VCC

2.375

2.5

2.625

Suffix: D

3.135

3.3

3.465

Suffix: C

Supply voltage

GND

0.0

Operating temperature range

T_use

-40

+25

+85

ºC

Suffix: G

-40

+25

+105

ºC

Suffix: H

LVDS load condition

L_LVDS

100

Connected between
OUT and

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Output frequency *1

100

MHz

SG3225VEN / SG7050VEN

MHz

SG5032VEN

Frequency tolerance

f_tol

-25

+25

×10-6

*2
Suffix: D
fo≤200 MHz, T_use: G

-50

+50

×10-6

*3
Suffix: J
T_use: G

*3
Suffix: J
fo≤200 MHz, T_use: H

-100

+100

×10-6

*3
Suffix: L
T_use: H

Parameter	Symbol	Specification			Unit	Conditions
		Min.	Typ.	Max.
Startup time	t_str	-	-	10	ms	t = 0 at 90 %VCC
Current consumption	ICC	-	-	25	mA
Disable current	I_dis	-	-	15	mA	OE = GND
Rise time / Fall time	tr / tf	-	-	0.3	ns	20 % - 80 % of differential output peak to peak voltage
Symmetry	SYM	45	50	55	%	At output crossing point
Output voltage	VOD	250	350	450	mV	DC characteristics
	dVOD	-	-	50	mV
	VOS	1.15	1.25	1.35	V
	dVOS	-	-	50	mV
Input voltage	VIH	70 % VCC	-	-	V	OE terminal
	VIL	-	-	30 % VCC	V
Output disable time	tstp_oe	-	-	100	ns	OE terminal HIGH → LOW
Output enable time	tsta_oe	-	-	200	ns	fo ≤ 200 MHz, OE terminal LOW → HIGH
		-	-	500	ns	fo > 200 MHz, OE terminal LOW → HIGH
Phase jitter(fo = 25 MHz)	tPJ	-	164.8	-	fs	Offset frequency 12 kHz to 5 MHz
Phase jitter(fo = 50 MHz)	tPJ	-	183.1	-	fs	Offset frequency 12 kHz to 20 MHz
Phase jitter(fo = 100 MHz)	tPJ	-	96.1	150	fs
Phase jitter(fo = 125 MHz)	tPJ	-	71.1	110	fs
Phase jitter(fo = 156.25 MHz)	tPJ	-	59.6	90	fs
Phase jitter(fo = 212.5 MHz)	tPJ	-	36.2	80	fs
Phase jitter(fo = 312.5 MHz)	tPJ	-	37.0	80	fs
Phase jitter(fo = 491.52 MHz)	tPJ	-	29.2	60	fs

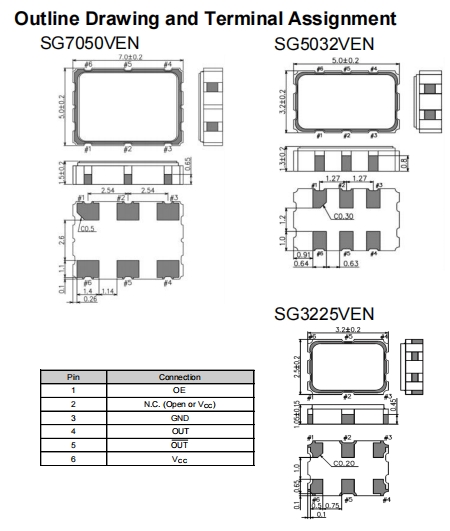

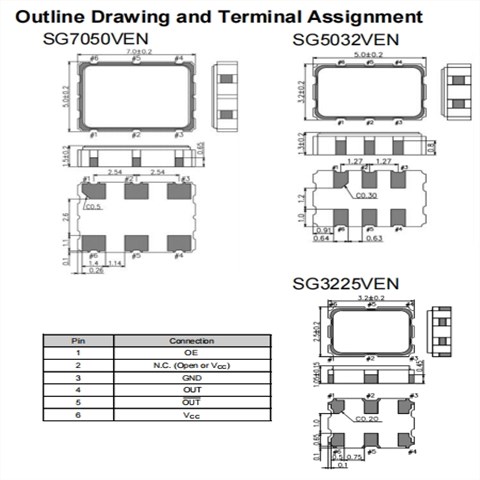

爱普生LVDS晶振SG3225VEN,X1G0053510011,6G基站晶振 尺寸图

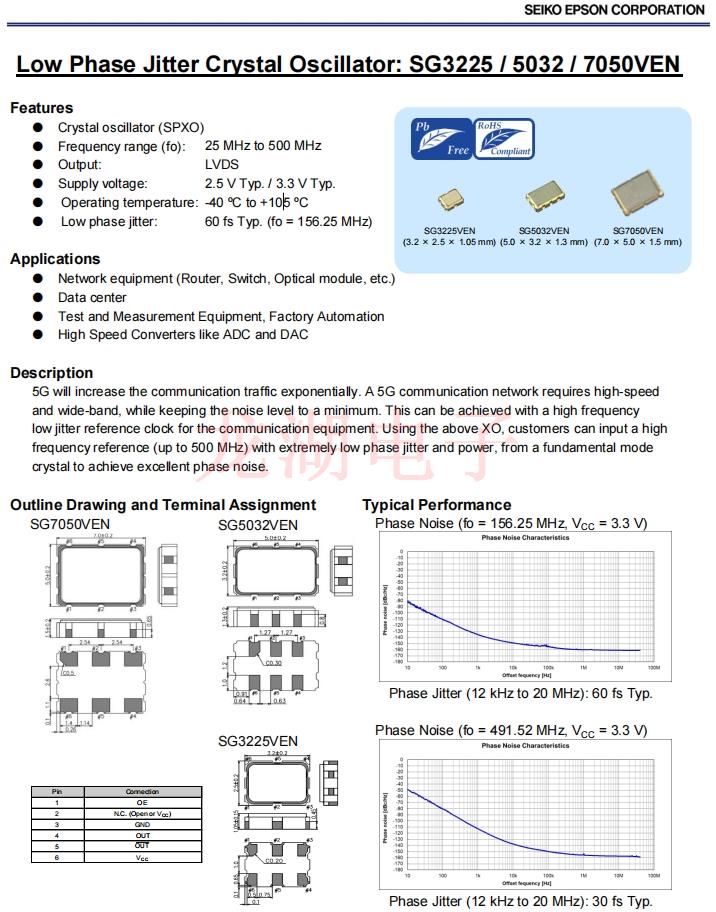

产品特性：

有源晶体振荡器(SPXO)

频率范围(fo): 25MHz至500MHz

输出:LVDS

供电电压:2.5 V。/ 3.3 V类型

工作温度:-40℃至+105℃

低相位抖动:60fs(fo = 156.25 MHz)

更多相关日本爱普生晶振型号

编码	品牌	型号	频率	尺寸	输出方式	电源电压	工作温度
X1G0042410001	爱普生晶振	SG3225VAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410002	爱普生晶振	SG3225VAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410004	爱普生晶振	SG3225VAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410005	爱普生晶振	SG3225VAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410006	爱普生晶振	SG3225VAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410007	爱普生晶振	SG3225VAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410008	爱普生晶振	SG3225VAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410009	爱普生晶振	SG3225VAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410010	爱普生晶振	SG3225VAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410011	爱普生晶振	SG3225VAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410012	爱普生晶振	SG3225VAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410014	爱普生晶振	SG3225VAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410015	爱普生晶振	SG3225VAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410016	爱普生晶振	SG3225VAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410017	爱普生晶振	SG3225VAN	161.132800 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410020	爱普生晶振	SG3225VAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410021	爱普生晶振	SG3225VAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410023	爱普生晶振	SG3225VAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410024	爱普生晶振	SG3225VAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410025	爱普生晶振	SG3225VAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410026	爱普生晶振	SG3225VAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410027	爱普生晶振	SG3225VAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410028	爱普生晶振	SG3225VAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410029	爱普生晶振	SG3225VAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410030	爱普生晶振	SG3225VAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410031	爱普生晶振	SG3225VAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410033	爱普生晶振	SG3225VAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410034	爱普生晶振	SG3225VAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410035	爱普生晶振	SG3225VAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410036	爱普生晶振	SG3225VAN	161.132800 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410039	爱普生晶振	SG3225VAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410040	爱普生晶振	SG3225VAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410042	爱普生晶振	SG3225VAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410043	爱普生晶振	SG3225VAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410044	爱普生晶振	SG3225VAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410045	爱普生晶振	SG3225VAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410046	爱普生晶振	SG3225VAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410047	爱普生晶振	SG3225VAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410048	爱普生晶振	SG3225VAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410049	爱普生晶振	SG3225VAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410050	爱普生晶振	SG3225VAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410052	爱普生晶振	SG3225VAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410053	爱普生晶振	SG3225VAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410054	爱普生晶振	SG3225VAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410055	爱普生晶振	SG3225VAN	161.132800 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410058	爱普生晶振	SG3225VAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410059	爱普生晶振	SG3225VAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410061	爱普生晶振	SG3225VAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410062	爱普生晶振	SG3225VAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410063	爱普生晶振	SG3225VAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410064	爱普生晶振	SG3225VAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410065	爱普生晶振	SG3225VAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410066	爱普生晶振	SG3225VAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410067	爱普生晶振	SG3225VAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410068	爱普生晶振	SG3225VAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410069	爱普生晶振	SG3225VAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410071	爱普生晶振	SG3225VAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410072	爱普生晶振	SG3225VAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410073	爱普生晶振	SG3225VAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
