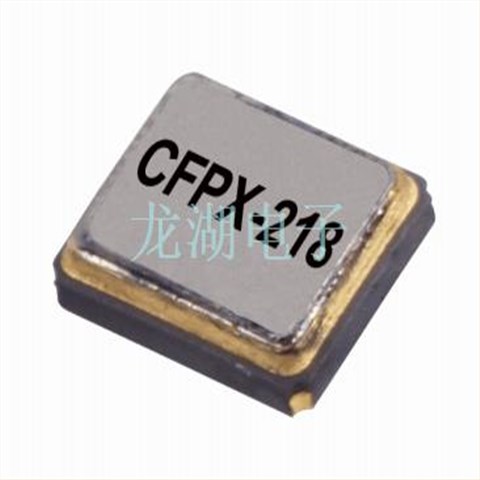

LFXTAL069395RL3K,伊克德高频晶振,CFPX-218,数码产品
| 原厂编码 | LFXTAL069395RL3K |
| 频率 | 16.384MHz |
| 厂家 | IQD晶振 |
| 型号 | CFPX-218 |
| 频率偏差 | ±20ppm |
| 负载电容 | 10pF |
| 工作温度 | -40°C至85°C |

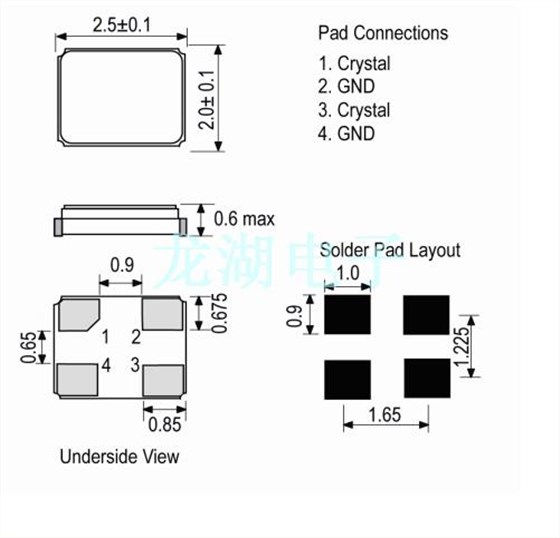

| 尺寸 | 2.5*2.0mm |
| Mfr Part # | Mfr | Series | Frequency | Frequency Tolerance | Load Capacitance |
| LFXTAL071952RL3K | IQD 进口晶振 | CFPX-218 | 12 MHz | ±20ppm | 10pF |
| LFXTAL081865RL3K | IQD 进口晶振 | CFPX-218 | 26 MHz | ±10ppm | 10pF |
| LFXTAL082080RL3K | IQD 进口晶振 | CFPX-218 | 19.2 MHz | ±10ppm | 10pF |
| LFXTAL078207RL3K | IQD 进口晶振 | CFPX-218 | 32 MHz | ±10ppm | 10pF |
| LFXTAL072844RL3K | IQD 进口晶振 | CFPX-218 | 30 MHz | ±10ppm | 10pF |
| LFXTAL082084RL3K | IQD 进口晶振 | CFPX-218 | - | ±10ppm | 10pF |
| LFXTAL082081RL3K | IQD 进口晶振 | CFPX-218 | - | ±10ppm | 10pF |
| LFXTAL078719RL3K | IQD 进口晶振 | CFPX-218 | - | ±10ppm | 10pF |
| LFXTAL082082RL3K | IQD 进口晶振 | CFPX-218 | 24 MHz | ±10ppm | 10pF |
| LFXTAL082087RL3K | IQD 进口晶振 | CFPX-218 | 40 MHz | ±10ppm | 10pF |
| LFXTAL082088RL3K | IQD 进口晶振 | CFPX-218 | 50 MHz | ±10ppm | 10pF |
| LFXTAL069400REEL | IQD 进口晶振 | CFPX-218 | 18.432 MHz | ±20ppm | 18pF |
| LFXTAL050991REEL | IQD 进口晶振 | CFPX-218 | 26 MHz | ±20ppm | 10pF |
| LFXTAL069387REEL | IQD 进口晶振 | CFPX-218 | 24.576 MHz | ±20ppm | 10pF |
| LFXTAL069390REEL | IQD 进口晶振 | CFPX-218 | 32 MHz | ±20ppm | 10pF |
| LFXTAL069404REEL | IQD 进口晶振 | CFPX-218 | 19.2 MHz | ±20ppm | 10pF |
| LFXTAL071952REEL | IQD 进口晶振 | CFPX-218 | 12 MHz | ±20ppm | 10pF |
| LFXTAL082084CUTT | IQD 进口晶振 | CFPX-218 | 27 MHz | ±10ppm | 10pF |
| LFXTAL082087CUTT | IQD 进口晶振 | CFPX-218 | 40 MHz | ±10ppm | 10pF |
| LFXTAL082081CUTT | IQD 进口晶振 | CFPX-218 | 20 MHz | ±10ppm | 10pF |
| LFXTAL078207REEL | IQD 进口晶振 | CFPX-218 | 32 MHz | ±10ppm | 10pF |
| LFXTAL081865CUTT | IQD 进口晶振 | CFPX-218 | 26 MHz | ±10ppm | 10pF |
| LFXTAL082088CUTT | IQD 进口晶振 | CFPX-218 | 50 MHz | ±10ppm | 10pF |
| LFXTAL072844CUTT | IQD 进口晶振 | CFPX-218 | 30 MHz | ±10ppm | 10pF |
| LFXTAL082080REEL | IQD 进口晶振 | CFPX-218 | 19.2 MHz | ±10ppm | 10pF |
| LFXTAL078719CUTT | IQD 进口晶振 | CFPX-218 | 25 MHz | ±10ppm | 10pF |
