Microchip振荡器,DSC1001CI1-019.2000T,6G以太网晶振,尺寸3.2*2.5mm,频率19.2MHZ,欧美进口晶振,有源晶体振荡器,进口有源晶振,四脚有源晶振,CMOS输出振荡器,3225有源晶振,OSC晶振,DSC1001/3/4是一种基于硅MEMS的CMOS振荡器系列,提供出色的抖动和在广泛供应范围内的稳定性性能电压和温度。设备从1MHz至150MHz,电源电压在1.8至3.3伏,温度范围高达-40°C至105°C。
DSC1001/3/4包含一个铝硅谐振器它非常强健,几乎不会受到压力的影响相关断裂,常见于基于晶体的振荡器。在不牺牲性能和稳定性的情况下当今系统所需的无水晶设计允许更高级别的可靠性,使DSC1001/3/4是坚固耐用、工业和便携式的理想选择应力、冲击和振动损坏基于石英晶体的系统。
有源晶体振荡器产品适合用于移动应用程序,消费类电子产品,便携式电子设备,DVR、CCTV、监控摄像头,低姿态应用,工业应用等领域。Microchip振荡器,DSC1001CI1-019.2000T,6G以太网晶振.

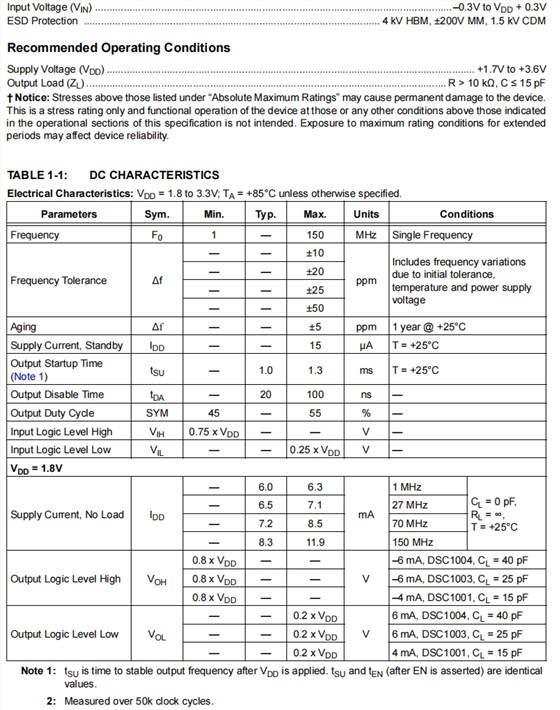

Microchip振荡器,DSC1001CI1-019.2000T,6G以太网晶振参数表
Parameters | Sym. | Min. | Typ. | Max. | Units | Conditions | ||||||||||
Frequency | F0 |
|
— | 19.2 | MHz | Single Frequency | ||||||||||
Frequency Tolerance | Δf | ±10 | ppm |
Includes frequency variations due to initial tolerance, temperature and power supply voltage |
||||||||||||
±20 | ||||||||||||||||
— | — | ±25 | ||||||||||||||
±50 | ||||||||||||||||
Aging | Δf | ±5 | ppm | 1 year @ +25°C | ||||||||||||
Supply Current, Standby | IDD | — | — | 15 | µA | T = +25°C | ||||||||||
Output Startup Time (Note 1) |
tSU | — | 1.0 | 1.3 | ms | T = +25°C | ||||||||||
Output Disable Time | tDA | 20 | 100 | ns | ||||||||||||
Output Duty Cycle | SYM | 45 | 55 | % | ||||||||||||
Input Logic Level High | VIH | 0.75 x VDD | — | — | V | — | ||||||||||
Input Logic Level Low | VIL | 0.25 x VDD | V | |||||||||||||
VDD= 1.8V | ||||||||||||||||
Supply Current, No Load | IDD | — | 6.0 | 6.3 | mA | 1 MHz |
CL= 0 pF, RL= ∞ , T = +25°C |
|||||||||
6.5 | 7.1 | 27 MHz | ||||||||||||||
7.2 | 8.5 | 70 MHz | ||||||||||||||
— | 8.3 | 11.9 | 150 MHz | |||||||||||||
Output Logic Level High | VOH | 0.8 x VDD | V | –6 mA, DSC1004, CL= 40 pF | ||||||||||||
0.8 x VDD | –6 mA, DSC1003, CL= 25 pF | |||||||||||||||
0.8 x VDD | — | — | –4 mA, DSC1001, CL= 15 pF | |||||||||||||
Output Logic Level Low | VOL | — | — | 0.2 x VDD | V | 6 mA, DSC1004, CL= 40 pF | ||||||||||
0.2 x VDD | 6 mA, DSC1003, CL= 25 pF | |||||||||||||||
— | — | 0.2 x VDD | 4 mA, DSC1001, CL= 15 pF |

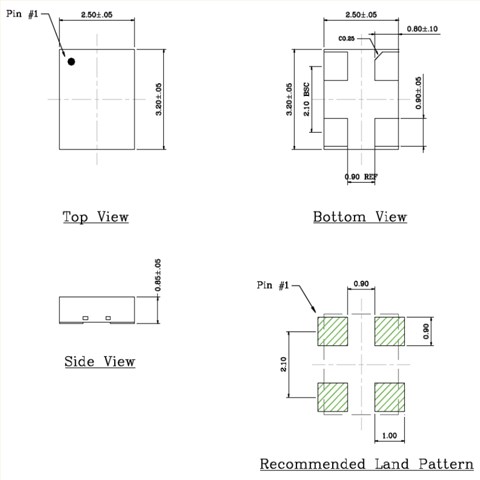

Microchip振荡器,DSC1001CI1-019.2000T,6G以太网晶振 尺寸图

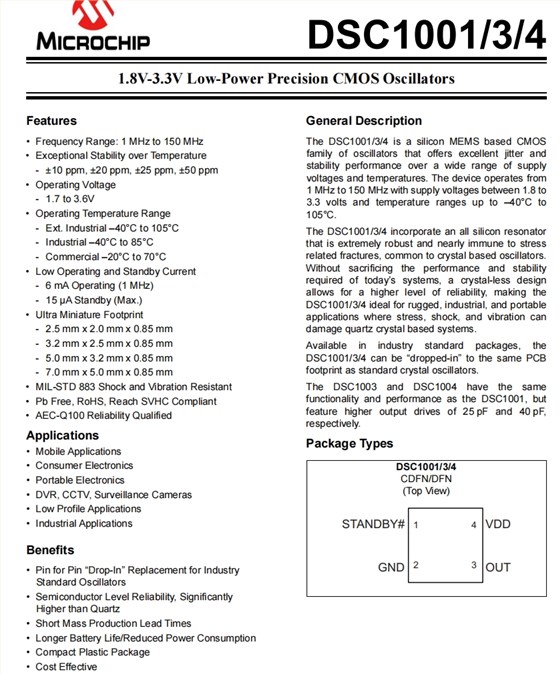

OSC晶振产品特性:
频率范围:1MHz至150MHz
卓越的温度稳定性
-±10 ppm、±20ppm、±25ppm、±50ppm
工作电压-1.7至3.6伏
工作温度范围
外部工业–40°C至105°C
工业–40°C至85°C
商用–20°C至70°C
低工作和备用电流
-6 mA工作(1MHz)
-15μA备用(最大)
超小型占地面积
-2.5毫米x 2.0毫米x 0.85毫米
-3.2毫米x 2.5毫米x 0.85毫米
-5.0毫米x 3.2毫米x 0.85毫米
-7.0毫米x 5.0毫米x 0.85毫米
MIL-STD 883抗冲击和振动
无铅,RoHS,达到SVHC标准
AEC-Q100可靠性合格
