FMXMC2S18HJA-36.000000M-CM,FMXMC2S系列,3225mm,36MHZ,FMI水晶振动子特点:
表面贴装陶瓷组件。
Micro 3.2 x 2.5/超薄石英晶体
高可靠性,紧密稳定性.

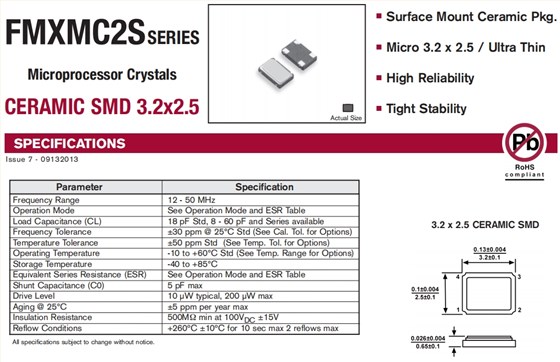

FMXMC2S18HJA-36.000000M-CM,FMXMC2S系列,3225mm,36MHZ,FMI水晶振动子 参数表
Parameter | Specification | ||||||||||||||
Frequency Range | 36 MHz | ||||||||||||||
Operation Mode | See Operation Mode and ESR Table | ||||||||||||||
Load Capacitance (CL) | 18 pF Std, 8 - 60 pF and Series available | ||||||||||||||
Frequency Tolerance | ±30 ppm @ 25°C Std (See Cal. Tol. for Options) | ||||||||||||||
Temperature Tolerance | ±50 ppm Std(See Temp. Tol. for Options) | ||||||||||||||
Operating Temperature | -10 to +60°C Std (See Temp. Range for Options) | ||||||||||||||
Storage Temperature | -40 to +85°C | ||||||||||||||
Equivalent Series Resistance (ESR) | See Operation Mode and ESR Table | ||||||||||||||
Shunt Capacitance (C0) | 5 pF max | ||||||||||||||
Drive Level | 10 µWtypical, 200 µW max | ||||||||||||||
Aging @ 25°C | ±5 ppm per year max | ||||||||||||||
Insulation Resistance | 500MΩ min at 100VDC±15V | ||||||||||||||
Reflow Conditions | +260ºC ±10ºC for 10 sec max 2 reflows max |

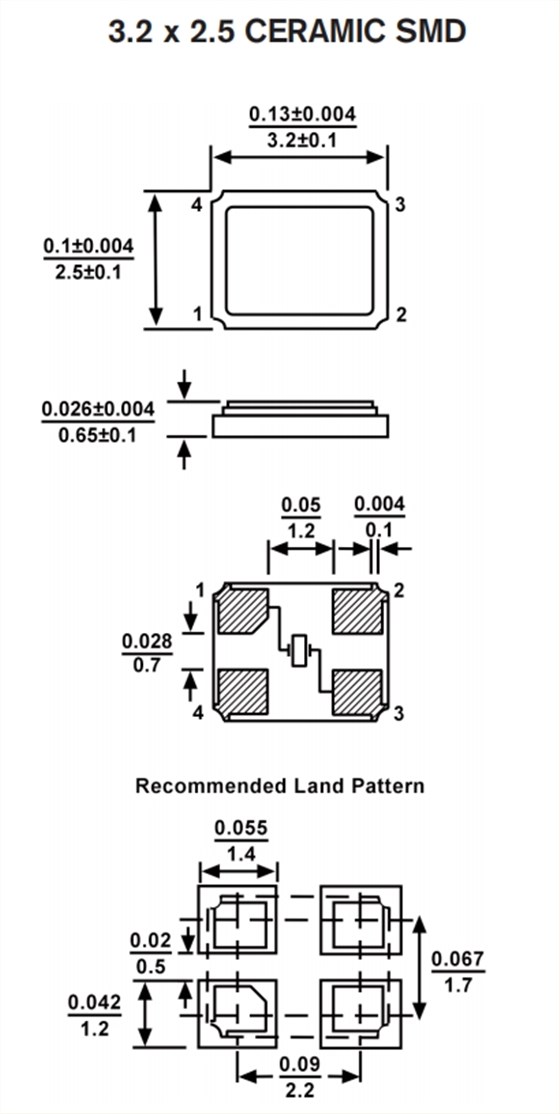

FMXMC2S18HJA-36.000000M-CM,FMXMC2S系列,3225mm,36MHZ,FMI水晶振动子 尺寸图
