BC59,2012mm,BC59CCD112.5-32.768K,Bomar32.768K时钟晶振，尺寸2.0x1.2mm，频率32.768KHZ，两脚贴片晶振，陶瓷SMD晶体，无源贴片晶振，贴片陶瓷晶振，2012mm音叉晶体，欧美无源晶振，32.768KHZ无源晶振，轻薄型晶振，两脚贴片晶振，32.768KHZ陶瓷谐振器，超小型SMD晶体，无源晶振，移动通信晶振，实时实时晶振，娱乐设备晶振，小型设备晶振，低损耗晶振，低功耗晶振，低成本晶振，高质量晶振，高性能晶振，具有高质量高性能的特点。
BC59系列是一种超小型陶瓷SMD晶体，高度为0.6毫米。非常适合最小的电路空间可能的应用包括移动通信、芯片卡、实时时钟和无线通信。BC59,2012mm,BC59CCD112.5-32.768K,Bomar32.768K时钟晶振.

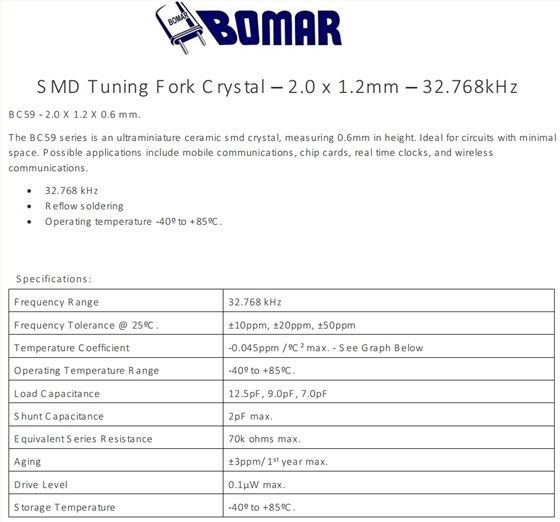

BC59,2012mm,BC59CCD112.5-32.768K,Bomar32.768K时钟晶振 参数表
| Frequency Range | 32.768 kHz | |||||||||
| Frequency Tolerance @ 25ºC. | ±10ppm, ±20ppm, ±50ppm | |||||||||
| Temperature Coefficient | -0.045ppm / ºC² max. - See Graph Below | |||||||||
| Operating Temperature Range | -40º to +85ºC. | |||||||||
| Load Capacitance | 12.5pF, 9.0pF, 7.0pF | |||||||||
| Shunt Capacitance | 2pF max. | |||||||||
| Equivalent Series Resistance | 70k ohms max. | |||||||||
| Aging | ±3ppm/ 1styear max. | |||||||||
| Drive Level | 0.1µW max. | |||||||||
| Storage Temperature | -40º to +85ºC. | |||||||||

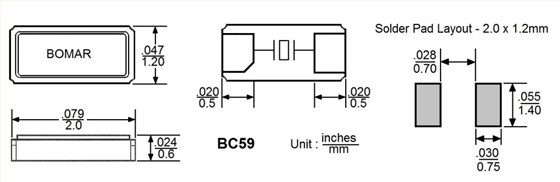

BC59,2012mm,BC59CCD112.5-32.768K,Bomar32.768K时钟晶振 尺寸图

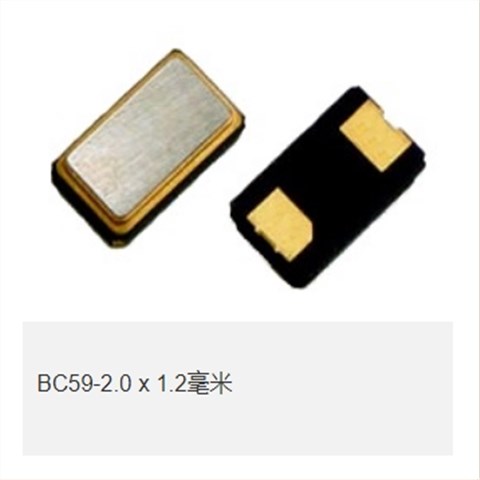

BC59,2012mm,BC59CCD112.5-32.768K,Bomar32.768K时钟晶振
进口音叉晶振产品特点:
尺寸2.0x1.2mm
32.768千赫
回流焊接
工作温度-40º至+85ºC
