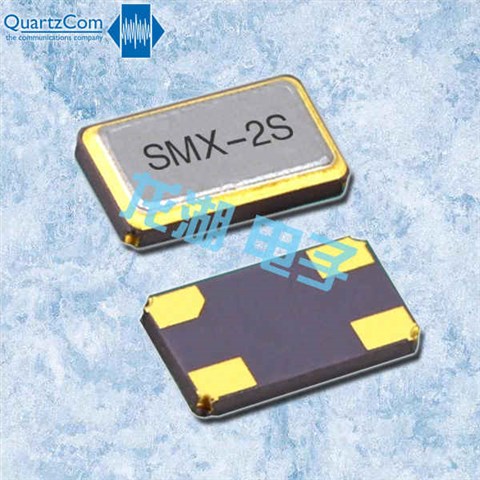

Quartzcom电信晶振,SMX-2S,52MHZ贴片晶体,6035mm晶振,石英通无源晶体,瑞士进口晶振,石英晶体谐振器,无源贴片晶振,QuartzcomCrystal,SMD晶体,无源石英晶体,6035mm小体积晶振,四脚贴片晶振,尺寸6.0x3.5mm,频率范围8~240MHZ,高频晶振,高性能晶振,高质量晶振,低损耗晶振,数字音频晶振,电信设备晶振,导航定位晶振,汽车音响晶振.
Quartzcom电信晶振,SMX-2S,52MHZ贴片晶体,6035mm晶振特点:
宽频率范围:8至240MHz石英晶振
高冲击和振动电阻率
回流焊@260°C

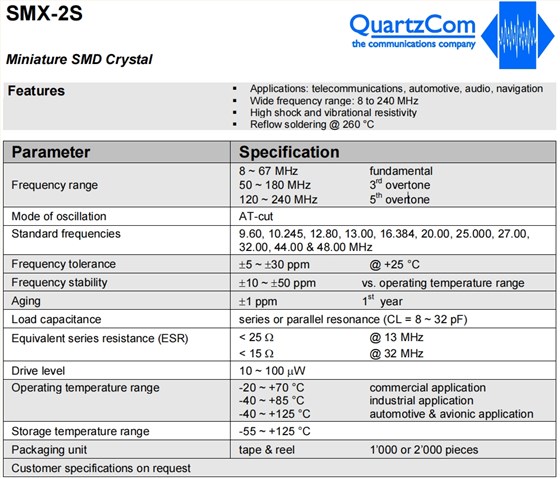

Quartzcom电信晶振,SMX-2S,52MHZ贴片晶体,6035mm晶振 参数表
Parameter | Specification | ||||||||
Frequency range |
8 ~ 67 MHz 50 ~ 180 MHz 120 ~ 240 MHz |
fundamental 3rdovertone 5thovertone |
|||||||
Mode of oscillation | AT-cut | ||||||||
Standard frequencies |
9.60, 10.245, 12.80, 13.00, 16.384, 20.00, 25.000, 27.00, 32.00, 44.00 & 48.00 MHz |
||||||||
Frequency tolerance | 土5 ~土30 ppm@ +25 °C | ||||||||
Frequency stability | 土10 ~土50 ppmvs. operating temperature range | ||||||||
Aging | 土1 ppm | 1st | year | ||||||
Load capacitance | series or parallel resonance (CL = 8 ~ 32 pF) | ||||||||
Equivalent series resistance (ESR) |
< 25Ω < 15Ω |
@ 13 MHz @ 32 MHz |
|||||||
Drive level | 10 ~ 100μW | ||||||||
Operating temperature range |
-20 ~ +70 °C -40 ~ +85 °C -40 ~ +125 °C |
commercial application industrial application automotive & avionic application |
|||||||
Storage temperature range | -55 ~ +125 °C | ||||||||
Packaging unit | tape & reel1’000 or 2’000 pieces | ||||||||
Customer specifications on request |

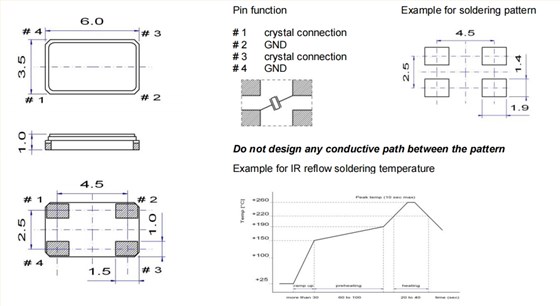

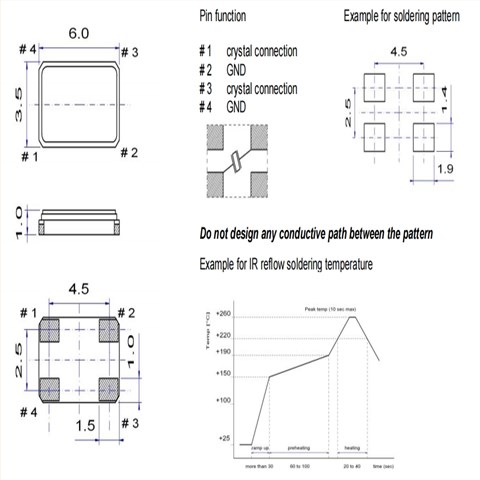

Quartzcom电信晶振,SMX-2S,52MHZ贴片晶体,6035mm晶振 尺寸图
