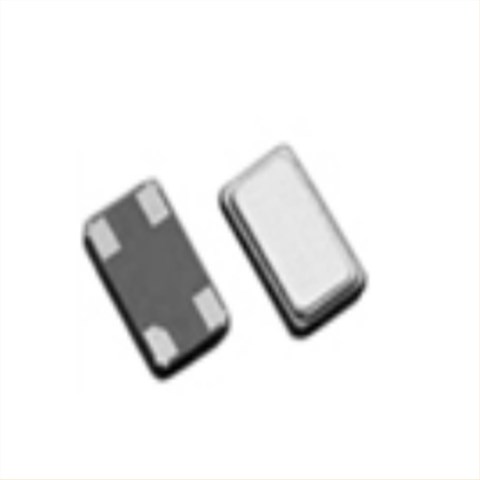

FMI石英振动子,FMXMC6S122FDB-54.000000M-CM,6035mm,FMXMC6S系列,欧美石英晶振,无源谐振器,四脚贴片晶体,54MHZ欧美晶振,6035mm石英晶体谐振器,水晶振动子,无源贴片晶振,SMD晶振,尺寸6.0x3.5mm,频率54MHZ,负载22pF,工作温度-20~+70 °C,低损耗晶振,轻薄型晶振,高品质晶振,电子设备晶振,便携式设备晶振,家庭影院晶振,音频专用晶振,无线应用晶振.
FMI石英振动子,FMXMC6S122FDB-54.000000M-CM,6035mm,FMXMC6S系列特点:
表面贴装陶瓷组件。
微型4焊盘/超薄SMD crystal
高可靠性
紧密稳定性

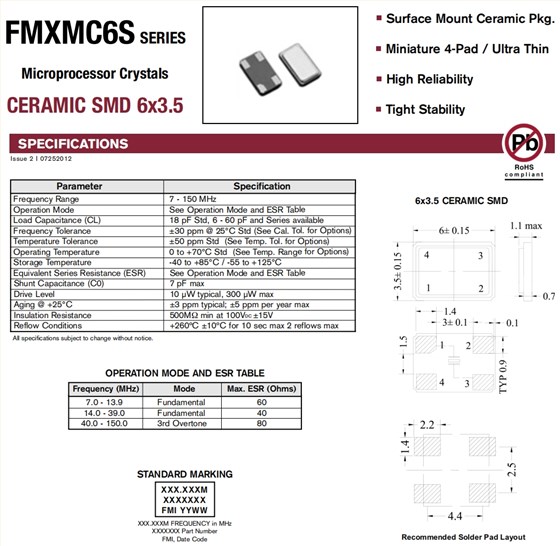

FMI石英振动子,FMXMC6S122FDB-54.000000M-CM,6035mm,FMXMC6S系列 参数表
Parameter | Specification | ||||||||||||||||||
Frequency Range | 54 MHz | ||||||||||||||||||
Operation Mode | See Operation Mode and ESR Table | ||||||||||||||||||
Load Capacitance (CL) | 18 pF Std, 6 - 60 pF and Series available | ||||||||||||||||||
Frequency Tolerance | ±30 ppm @ 25°C Std (See Cal. Tol. for Options) | ||||||||||||||||||
Temperature Tolerance | ±50 ppm Std(See Temp. Tol. for Options) | ||||||||||||||||||
Operating Temperature | 0 to +70°C Std(See Temp. Range for Options) | ||||||||||||||||||
Storage Temperature | -40 to +85°C / -55 to +125°C | ||||||||||||||||||
Equivalent Series Resistance (ESR) | See Operation Mode and ESR Table | ||||||||||||||||||
Shunt Capacitance (C0) | 7 pF max | ||||||||||||||||||
Drive Level | 10 µWtypical, 300 µW max | ||||||||||||||||||
Aging @ +25°C | ±3 ppm typical; ±5 ppm per year max | ||||||||||||||||||
Insulation Resistance | 500MΩ min at 100VDC±15V | ||||||||||||||||||
Reflow Conditions | +260ºC ±10ºC for 10 sec max 2 reflows max |

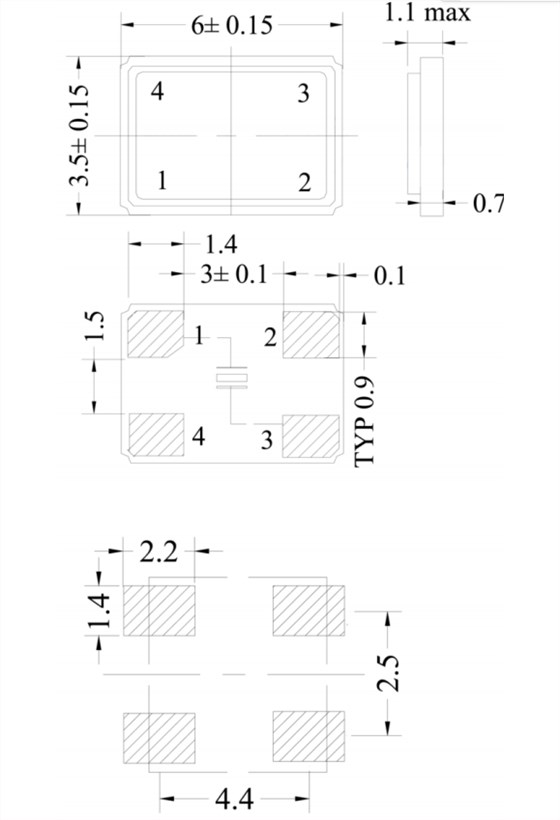

FMI石英振动子,FMXMC6S122FDB-54.000000M-CM,6035mm,FMXMC6S系列 尺寸图
