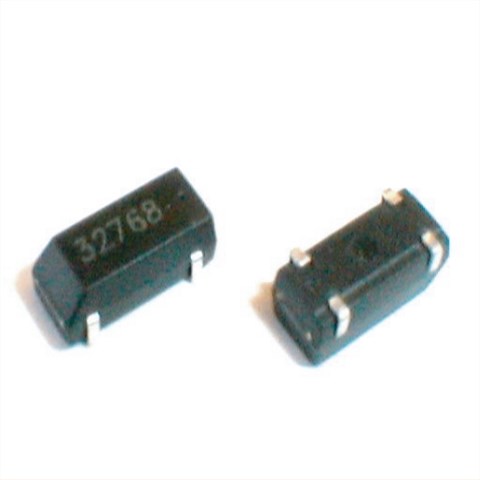

8038mm,32.768KHZ,WXP2A-32K768-9,富通实时时钟晶振特点:
符合RoHS标准,适用于时钟应用,性能经济
2.5毫米高的微型热塑性塑料包装SMD无源晶体
卓越的抗冲击性和环境特性
兼容Citizen CM200S和Epson MC-306

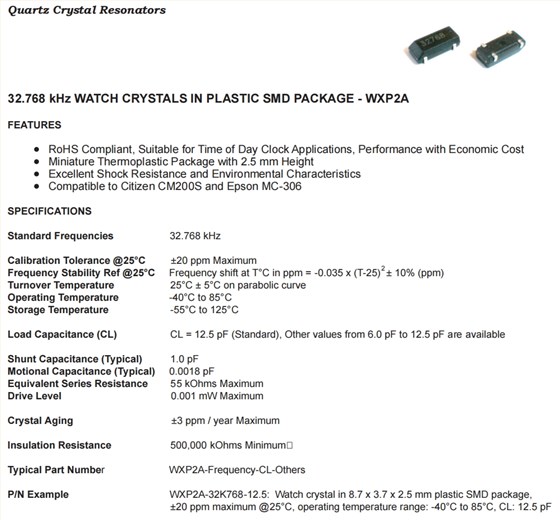

8038mm,32.768KHZ,WXP2A-32K768-9,富通实时时钟晶振 参数表
Standard Frequencies | 32.768 kHz | |||||||||||||||||
Calibration Tolerance @25°C | ±20 ppm Maximum | |||||||||||||||||
Frequency Stability Ref @25°C | Frequency shift at T°C in ppm = -0.035 x (T-25)2± 10% (ppm) | |||||||||||||||||
Turnover Temperature | 25°C ± 5°C on parabolic curve | |||||||||||||||||
Operating Temperature | -40°C to 85°C | |||||||||||||||||
Storage Temperature | -55°C to 125°C | |||||||||||||||||
Load Capacitance (CL) | CL = 12.5 pF (Standard), Other values from 6.0 pF to 12.5 pF are available | |||||||||||||||||
Shunt Capacitance (Typical) | 1.0 pF | |||||||||||||||||
Motional Capacitance (Typical) | 0.0018 pF | |||||||||||||||||
Equivalent Series Resistance | 55 kOhms Maximum | |||||||||||||||||
Drive Level | 0.001 mW Maximum | |||||||||||||||||
Crystal Aging | ±3 ppm / year Maximum | |||||||||||||||||
Insulation Resistance | 500,000 kOhms Minimum乓 | |||||||||||||||||
Typical Part Number | WXP2A-Frequency-CL-Others | |||||||||||||||||
P/N Example |
WXP2A-32K768-12.5: Watch crystal in 8.7 x 3.7 x 2.5 mm plastic SMD package, ±20 ppm maximum @25°C, operating temperature range: -40°C to 85°C, CL: 12.5 pF |

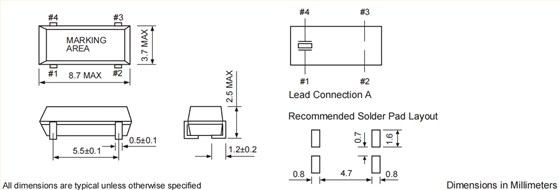

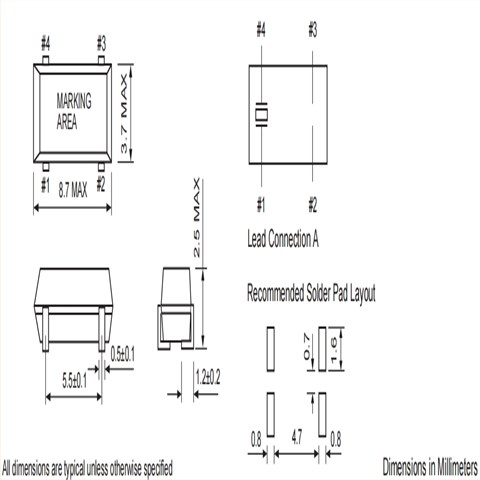

8038mm,32.768KHZ,WXP2A-32K768-9,富通实时时钟晶振 尺寸图
