AAS24M000000DHJ18H,24MHZ,AA系列晶振,STD无源晶振,7050mm特点:
低成本低损耗SMD贴片晶体类型
具有更严格的公差和稳定性
符合ROHS/无铅

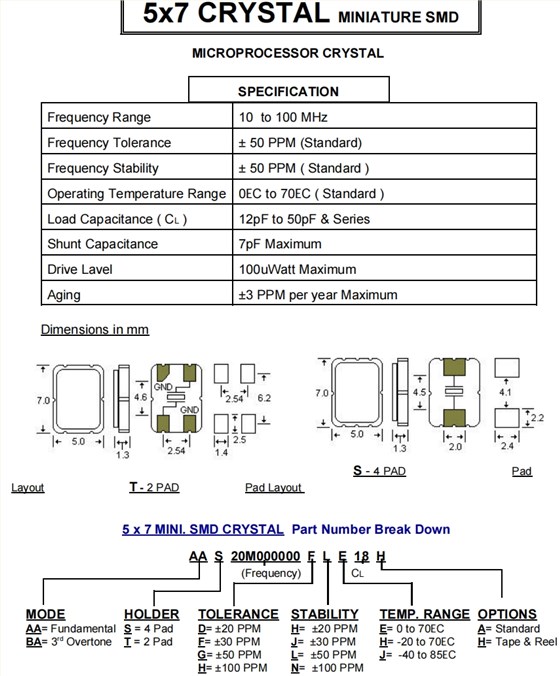

AAS24M000000DHJ18H,24MHZ,AA系列晶振,STD无源晶振,7050mm 参数表
| Frequency Range | 24 MHz | |||||||||
| Frequency Tolerance | ± 50 PPM (Standard) | |||||||||
| Frequency Stability | ± 50 PPM ( Standard ) | |||||||||
| Operating Temperature Range | 0EC to 70EC ( Standard ) | |||||||||
| Load Capacitance ( CL) | 12pF to 50pF & Series | |||||||||
| Shunt Capacitance | 7pF Maximum | |||||||||
| Drive Lavel | 100uWatt Maximum | |||||||||
| Aging | ±3 PPM per year Maximum | |||||||||

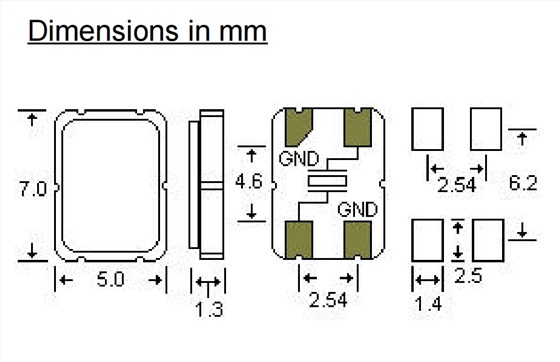

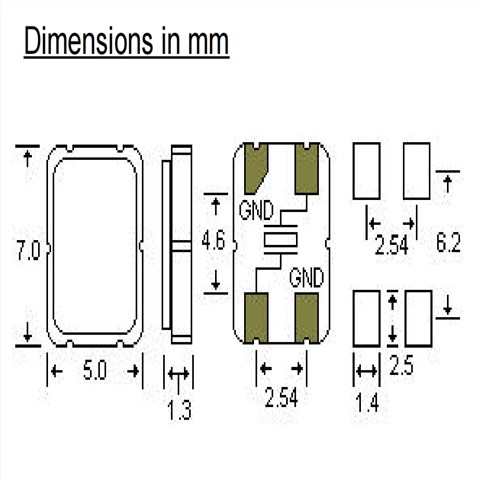

AAS24M000000DHJ18H,24MHZ,AA系列晶振,STD无源晶振,7050mm 尺寸图
