406系列光通信晶振,米利伦加拿大晶振,3225mm温补振荡器,尺寸3.2x2.5mm,频率范围10~52MHZ,MTI-milliren高品质晶振,3225mm小尺寸振荡器,低抖动有源晶振,低功耗有源晶振,光通信有源晶振,TCXO进口温补晶振,温度补偿晶体振荡器,有源温补振荡器,石英温补晶振,无铅环保晶振,低电压有源有源晶振,低耗能有源晶振,低相噪有源晶振,低相位有源晶振,北斗定位有源晶振,微波通信有源晶振,航天航空有源晶振,医疗设备有源晶振,具备优异的低抖动低相位低相噪。
温度补偿晶振产品可广泛应用于北斗定位,微波通信,航天航空,医疗设备,光通信,网络设备晶振,智能家居等应用领域。406系列光通信晶振,米利伦加拿大晶振,3225mm温补振荡器.

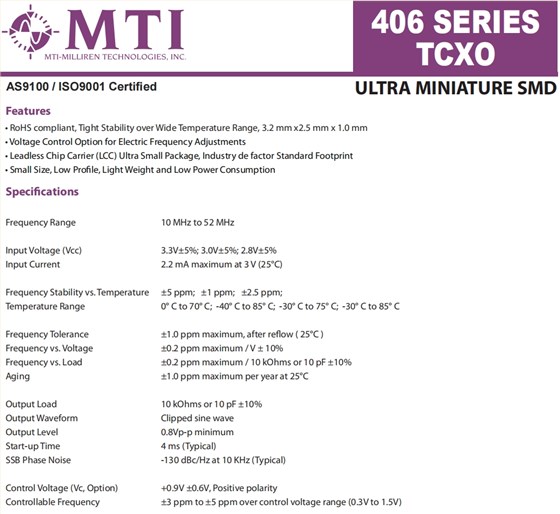

406系列光通信晶振,米利伦加拿大晶振,3225mm温补振荡器 参数表
Frequency Range | 10 MHz to 52 MHz | ||||||
Input Voltage (Vcc) |
3.3V±5%; 3.0V±5%; 2.8V±5% 2.2 mA maximum at 3 V (25°C) |
||||||
Input Current | |||||||
Frequency Stability vs. Temperature | ±5 ppm;±1 ppm;±2.5 ppm; | ||||||
Temperature Range |
0° C to 70° C;-40° C to 85° C;-30° C to 75° C;-30° C to 85° C ±1.0 ppm maximum, after reflow ( 25°C ) |
||||||
Frequency Tolerance | |||||||
Frequency vs. Voltage | ±0.2 ppm maximum / V ± 10% | ||||||
Frequency vs. Load |
±0.2 ppm maximum / 10 kOhms or 10 pF ±10% ±1.0 ppm maximum per year at 25°C |
||||||
Aging | |||||||
Output Load |
10 kOhms or 10 pF ±10% Clipped sine wave 0.8Vp-p minimum 4 ms (Typical) |
||||||
Output Waveform | |||||||
Output Level | |||||||
Start-up Time | |||||||
SSB Phase Noise |
-130 dBc/Hz at 10 KHz (Typical) +0.9V ±0.6V, Positive polarity |
||||||
Control Voltage (Vc, Option) | |||||||
Controllable Frequency | ±3 ppm to ±5 ppm over control voltage range (0.3V to 1.5V) |

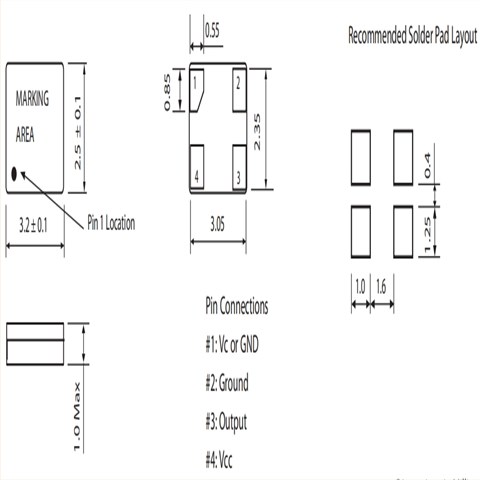

406系列光通信晶振,米利伦加拿大晶振,3225mm温补振荡器 尺寸图
406系列光通信晶振,米利伦加拿大晶振,3225mm温补振荡器
温补晶振产品特点:
符合RoHS标准,在宽温度范围内具有紧密的稳定性,3.2mmx2.5mmx1.0mm
用于电气频率调整的电压控制选项
无引线芯片载体(LCC)超小型封装,行业标准封装
体积小、利润低、重量轻、功耗低
