404系列北斗定位晶振,7050mmTCXO晶振,MTI-milliren晶振,尺寸7.0×5.0mm,频率10~27MHZ,加拿大进口晶振,米利伦有源振荡器,高品质有源晶振,低电压有源晶振,低抖动有源晶振,7050mm温补晶振,TCXO温补振荡器,温度补偿晶体振荡器,导航晶体振荡器,石英温补晶振,SMD温补晶振,低相位有源晶振,低相噪有源晶振,北斗定位有源晶振,GPS全球定位有源晶振,无线模块有源晶振,多媒体设备有源晶振,无线局域网有源晶振,测试设备有源晶振,仪器仪表有源晶振,具有低相位相噪高品质的特点。
温度补偿晶振产品常常应用于北斗定位,GPS全球定位,无线模块,多媒体设备,无线局域网,测试设备,仪器仪表等应用。404系列北斗定位晶振,7050mmTCXO晶振,MTI-milliren晶振.

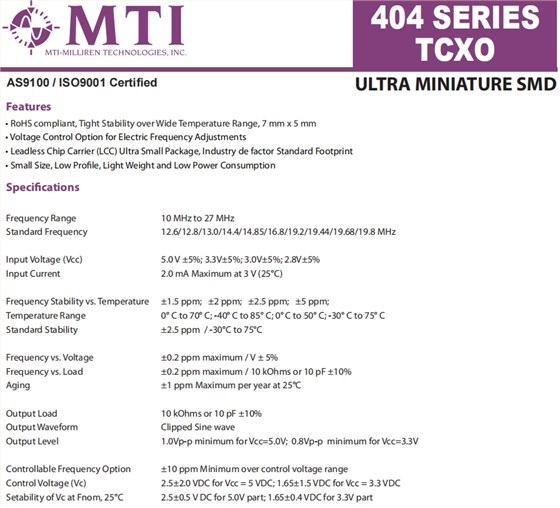

404系列北斗定位晶振,7050mmTCXO晶振,MTI-milliren晶振参数表
Frequency Range | 10 MHz to 27 MHz | ||||||
Standard Frequency |
12.6/12.8/13.0/14.4/14.85/16.8/19.2/19.44/19.68/19.8 MHz 5.0 V ±5%; 3.3V±5%; 3.0V±5%; 2.8V±5% |
||||||
Input Voltage (Vcc) | |||||||
Input Current | 2.0 mA Maximum at 3 V (25°C) | ||||||
Frequency Stability vs. Temperature | ±1.5 ppm;±2 ppm;±2.5 ppm;±5 ppm; | ||||||
Temperature Range |
0° C to 70° C; -40° C to 85° C; 0° C to 50° C; -30° C to 75° C ±2.5 ppm / -30°C to 75°C |
||||||
Standard Stability | |||||||
Frequency vs. Voltage | ±0.2 ppm maximum / V ± 5% | ||||||
Frequency vs. Load |
±0.2 ppm maximum / 10 kOhms or 10 pF ±10% ±1 ppm Maximum per year at 25°C |
||||||
Aging | |||||||
Output Load |
10 kOhms or 10 pF ±10% Clipped Sine wave |
||||||
Output Waveform | |||||||
Output Level |
1.0Vp-p minimum for Vcc=5.0V;0.8Vp-pminimum for Vcc=3.3V ±10 ppm Minimum over control voltage range |
||||||
Controllable Frequency Option | |||||||
Control Voltage (Vc) |
2.5±2.0 VDC for Vcc = 5 VDC; 1.65±1.5 VDC for Vcc = 3.3 VDC 2.5±0.5 V DC for 5.0V part; 1.65±0.4 VDC for 3.3V part |
||||||
Setability of Vc at Fnom, 25°C |

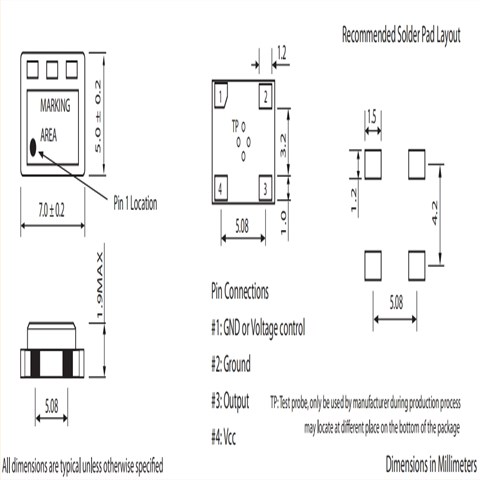

404系列北斗定位晶振,7050mmTCXO晶振,MTI-milliren晶振 尺寸图
404系列北斗定位晶振,7050mmTCXO晶振,MTI-milliren晶振
温补晶振产品特点:
符合RoHS标准,在宽温度范围内具有紧密的稳定性,7 mm x 5 mm
用于电气频率调整的电压控制选项
无引线芯片载体(LCC)超小型封装,行业标准封装
体积小、利润低、重量轻、功耗低
