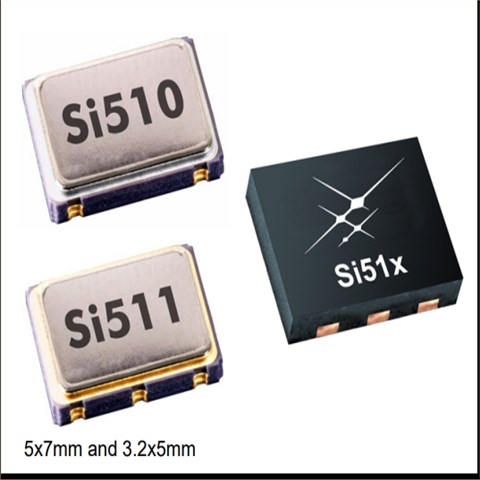

510CCA48M0000AAG|6G路由器晶振|Skyworks有源贴片晶振Si510，尺寸7.0x5.0mm，频率48MHZ，输出逻辑CMOS，OSC振荡器，XO时钟振荡器，CMOS输出晶振，SMD振荡器，四脚有源晶振，有源晶体振荡器，石英晶体振荡器，有源振荡器，低电压振荡器，低功耗有源晶振，低抖动有源晶振，7050mm有源晶振，48MHZ有源晶振，路由器专用晶振，光纤通道有源晶振，电信专用晶振，交换机晶振，具有低抖动高品质的特点，很适合SONET/SDH/OTN，关于 Gigabit Ethernet，光纤通道/SAS/SATA，关于PCI Express，3G-SDI/HD-SDI/SDI 电信，交换机/路由器，FPGA/ASIC，时钟生成等领域。

Si510/511 XO采用Skyworks Solutions的先进DSPLL技术以提供从100kHz到250MHz的任何频率。与传统XO不同其中每个输出频率需要不同的晶体，Si510/511有源晶振使用一块固定水晶和Skyworks Solutions的专有DSPLL合成器，以生成该范围内的任何频率。此IC基于该方法允许晶体谐振器提供增强的可靠性，改进的机械坚固性和优异的稳定性。此外该解决方案提供卓越的电源噪声抑制，简化了低抖动时钟在嘈杂的环境中生成。Crystal ESR和DLD分别为生产测试，以保证性能和提高可靠性。510CCA48M0000AAG|6G路由器晶振|Skyworks有源贴片晶振Si510.

LH-2

510CCA48M0000AAG|6G路由器晶振|Skyworks有源贴片晶振Si510参数表

Parameter

Symbol

Test Condition

Min

Typ

Max

Unit

Nominal Frequency

CMOS, Dual CMOS

0.1

—

212.5

MHz

LVDS/LVPECL/HCSL

0.1

—

250

MHz

Total Stability*

Frequency Stability Grade C

–30

—

+30

ppm

Frequency Stability Grade B

–50

—

+50

ppm

Frequency Stability Grade A

–100

—

+100

ppm

Temperature Stability

Frequency Stability Grade C

–20

—

+20

ppm

Frequency Stability Grade B

–25

—

+25

ppm

Frequency Stability Grade A

–50

—

+50

ppm

Startup Time

TSU

Minimum VDDuntil output
frequency (FO) within specification

—

Disable Time

FO> 10 MHz

—

µs

FO< 10 MHz

—

µs

Enable Time

FO> 10 MHz

—

µs

FO< 10 MHz

—

µs

*Note:Total stability includes initial accuracy, operating temperature, supply voltage change, load change, shock and vibration
(not under operation), and 10 years aging at 40oC.

Parameter	Symbol	Test Condition	Min	Typ	Max	Unit
CMOS Output Logic High	VOH		0.85 x VDD	—	—	V
CMOS Output Logic Low	VOL		—	—	0.15 x VDD	V
CMOS Output Logic High Drive	IOH	3.3 V	–8	—	—	mA
		2.5 V	–6	—	—	mA
		1.8 V	–4	—	—	mA
CMOS Output Logic Low Drive	IOL	3.3 V	8	—	—	mA
		2.5 V	6	—	—	mA
		1.8 V	4	—	—	mA
CMOS Output Rise/Fall Time (20 to 80% VDD)	TR/TF	0.1 to 212.5 MHz, CL= 15 pF	0.45	0.8	1.2	ns
		0.1 to 212.5 MHz, CL= no load	0.3	0.6	0.9	ns
LVPECL Output Rise/Fall Time (20 to 80% VDD)	TR/TF		100	—	565	ps
HCSL Output Rise/Fall Time (20 to 80% VDD)	TR/TF		100	—	470	ps
LVDS Output Rise/Fall Time (20 to 80% VDD)	TR/TF		350	—	800	ps
LVPECL Output Common Mode	VOC	50 Ω to VDD– 2 V, single-ended	—	VDD– 1.4 V	—	V
LVPECL Output Swing	VO	50 Ω to VDD– 2 V, single-ended	0.55	0.8	0.90	VPPSE
LVDS Output Common Mode	VOC	100 Ω line-line VDD= 3.3/2.5 V	1.13	1.23	1.33	V
		100 Ω line-line, VDD= 1.8 V	0.83	0.92	1.00	V
LVDS Output Swing	VO	Single-ended, 100 Ω differential termination	0.25	0.35	0.45	VPPSE
HCSL Output Common Mode	VOC	50 Ω to ground	0.35	0.38	0.42	V
HCSL Output Swing	VO	Single-ended	0.58	0.73	0.85	VPPSE
Duty Cycle	DC	All formats	48	50	52	%

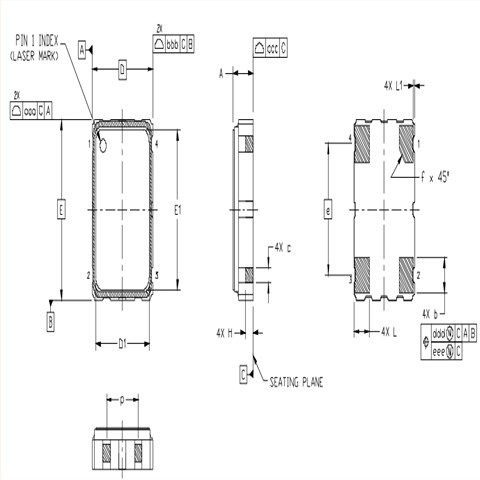

510CCA48M0000AAG|6G路由器晶振|Skyworks有源贴片晶振Si510 尺寸图

有源石英晶振产品特性：

支持来自的任何频率100kHz至250MHz

低抖动操作

2-4周交付周期

总体稳定性包括10年变老

综合生产试验

覆盖范围包括晶体ESR和DLD

用于电源的片上LDO调节器

电源噪声滤波

3.3、2.5或1.8 V操作

差分（LVPECL、LVDS、HCSL）或CMOS输出选项

可选集成1:2 CMOS扇出缓存

OE和接通电源

行业标准5 x 7、3.2 x 5，和2.5 x 3.2毫米封装

无铅，符合RoHS

–40至85℃操作
