欧洲石英晶振\16.3840MHZ-EQXOPL-1000UITA\XO振荡器\6G模块晶振，尺寸20.4*12.8mm,频率16.384MHZ，OSC晶振，欧美进口晶振，进口有源晶振，XO时钟振荡器，石英晶体振荡器，高性能晶振，低耗能晶振，低抖动晶振，航空电子晶振，6G应用专用晶振，6G蓝牙模块晶振，6G路由器晶振，6G室外基站晶振，仪器设备晶振，测试产品专用晶振，EQXOPL-1000可编程振荡器提供定制频率和规格振荡器的配合非常快交付时间。抖动，一般性能和规格为可与离散频率振荡器相媲美。
有源晶振产品超级适合用于航空电子，6G应用，6G蓝牙模块，6G路由器，6G室外基站，仪器设备，测试产品等领域。欧洲石英晶振\16.3840MHZ-EQXOPL-1000UITA\XO振荡器\6G模块晶振.

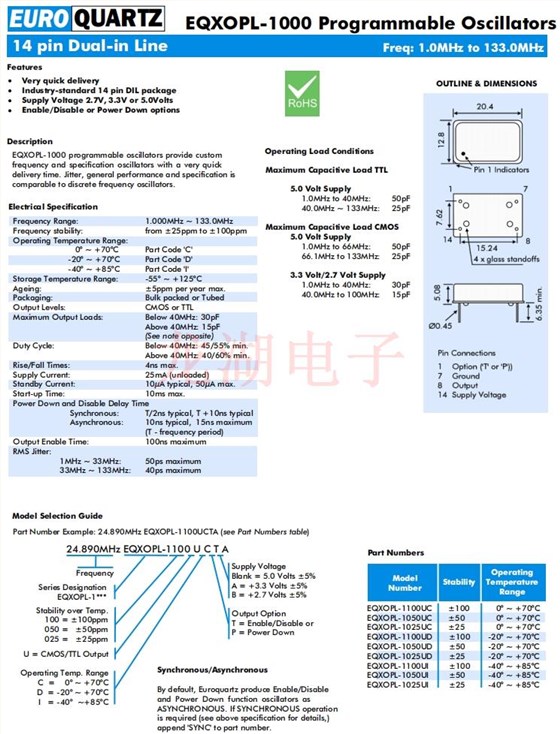

欧洲石英晶振\16.3840MHZ-EQXOPL-1000UITA\XO振荡器\6G模块晶振 参数表
| Frequency Range: 16.384MHZ |
| Frequency stability: from ±25ppm to ±100ppm |
| Operating Temperature Range: |
|
0° ~ +70°C Part Code 'C' -20° ~ +70°C Part Code 'D' -40° ~ +85°C Part Code 'I' |
| Storage Temperature Range: -55° ~ +125°C |
| Ageing: 卤5ppm per year max. |
| Packaging: Bulk packed or Tubed |
| Output Levels: CMOS or TTL |
| Maximum Output Loads: Below 40MHz: 30pF |
| Above 40MHz: 15pF |
| (See note opposite) |
| Duty Cycle: Below 40MHz: 45/55% min. |
| Above 40MHz: 40/60% min. |
| Rise/Fall Times: 4ns max. |
| Supply Current: 25mA (unloaded) |
| Standby Current: 10µA typical, 50µA max. |
| Start-up Time: 10ms max. |
| Power Down and Disable Delay Time |
| Synchronous: T/2ns typical, T +10ns typical |
| Asynchronous: 10ns typical, 15ns maximum |
| (T - frequency period) |
| Output Enable Time: 100ns maximum |
| RMS Jitter: |
| 1MHz ~ 33MHz: 50ps maximum |
| 33MHz ~ 133MHz: 40ps maximum |

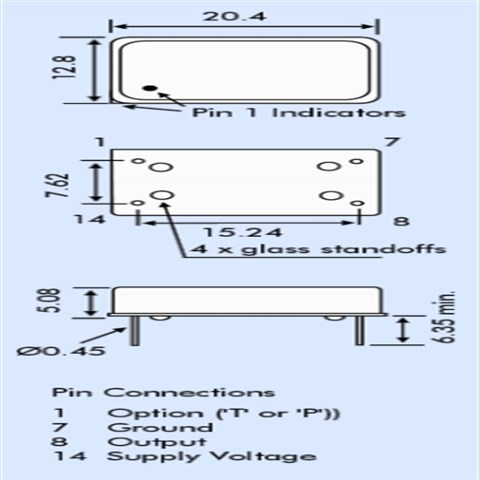

欧洲石英晶振\16.3840MHZ-EQXOPL-1000UITA\XO振荡器\6G模块晶振 尺寸图
产品特性：
非常快的交货
工业标准14引脚DIL封装
供电电压2.7V, 3.3V或5.0伏
启用/禁用或关机选项
更多相关欧洲石英EUROQUARTZ晶振型号，请咨询我们！
