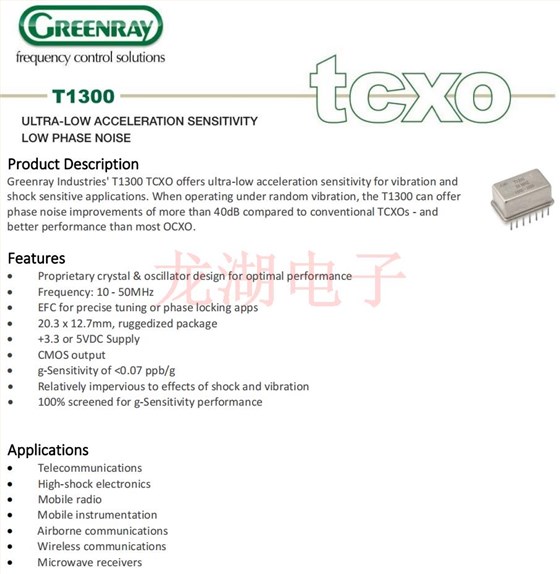

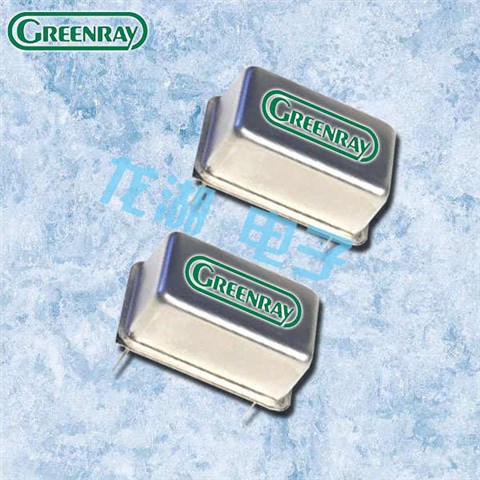

T1300-T26-5.0-LG-20.0MHz-E,有源晶振,Greenray晶振,6G微波接收器晶振，尺寸为20.3x12.7mm,频率为20MHZ，长方型钟振，石英晶体振荡器，有源晶体振荡器，进口有源晶振，低抖动晶振，低电压晶振，高品质晶振，6G电信晶振，无线通信晶振，机载通信专用晶振，移动仪器晶振，网络设备晶振，仪器仪表晶振，电子产品专用晶振。Greenray Industries的T1300 TCXO为振动和振动提供超低加速灵敏度对冲击敏感的应用。当在随机振动下工作时，T1300可以提供与传统的tcxo相比，相位噪声提高了40dB以上性能优于大多数OCXO。
温补晶振产品主要应用范围：电信，高冲击电子产品，移动无线电，移动仪器，机载通信，无线通信，微波接收器等领域。T1300-T26-5.0-LG-20.0MHz-E,有源晶振,Greenray晶振,6G微波接收器晶振.
T1300-T26-5.0-LG-20.0MHz-E,有源晶振,Greenray晶振,6G微波接收器晶振参数表
| FrequencyCharacteristics | |||||||||||||||||||||
| Parameter | Conditions | Min | Typical | Max | Units | OrderingCode | |||||||||||||||
| Nominal Frequency | +25°C |
|
20 | MHz | |||||||||||||||||
|
Frequency Stability (other stability available) |
-20°C to +70°C | ± 1 | ppm | N16 | |||||||||||||||||
| -40°C to +85°C | ± 2 | ppm | T26 | ||||||||||||||||||
| Aging |
1styear, after 14 days of operation |
± 0.5 | ppm | ||||||||||||||||||
|
Acceleration Sensitivity |
(Note 1) | 0.7 | ppb/g | SD | |||||||||||||||||
| 0.1 | ppb/g | LG | |||||||||||||||||||
| 0.07 | ppb/g | ULG | |||||||||||||||||||
| Frequency vs Voltage | For a 5% change | ± 0.1 | ppm | ||||||||||||||||||
| Frequency vs Load | For a 10% change | ± 0.01 | ppb | ||||||||||||||||||
|
Electronic Frequency Control |
EFC = 0 to VDD, Positive slope 50k Ω input Z |
± 6 | ppm | ||||||||||||||||||
| Warm-up time | Within ± 1 ppm | 10 | msec | ||||||||||||||||||
| Short-term Stability | 1 sec Tau (10 MHz) | 8 | x 10-10 | ||||||||||||||||||
| PhaseNoisePerformance | |||||||||||||||||||||
| Parameter | FrequencyOffset(Hz) | Min | Typical | Max | Units | ||||||||||||||||
|
Phase Noise (static) @ 10 MHz nominal Frequency |
10 | --100 | dBc/Hz | ||||||||||||||||||
| 100 | --130 | dBc/Hz | |||||||||||||||||||
| 1k | --155 | dBc/Hz | |||||||||||||||||||
| 10 k | --162 | dBc/Hz | |||||||||||||||||||
| 100 k | --162 | dBc/Hz | |||||||||||||||||||
| DCSupply | |||||||||||||||||||||
| Parameter | Conditions | Min | Typical | Max | Units | OrderingCode | |||||||||||||||
| Supply Voltage VDD | 3.0 | 3.3 | 3.6 | VDC | 3.3 | ||||||||||||||||
| 4.75 | 5.0 | 5.25 | VDC | 5.0 | |||||||||||||||||
| Supply Current | 20 | mA | |||||||||||||||||||
| RFOutput:CMOSSquareWave | |||||||||||||||||||||
| Parameter | Conditions | Min | Typical | Max | Units | ||||||||||||||||
| Load | CMOS | 15 | pF | ||||||||||||||||||
| Level | 15 pF load, 3.3V |
+2.8 “1” level |
+0.2 “0” level |
V | |||||||||||||||||
| 15 pF load, 5.0V |
+4.5 “1” level |
+0.2 “0” level |
V | ||||||||||||||||||
| Symmetry | CMOS | 40 | 50 | 60 | % | ||||||||||||||||

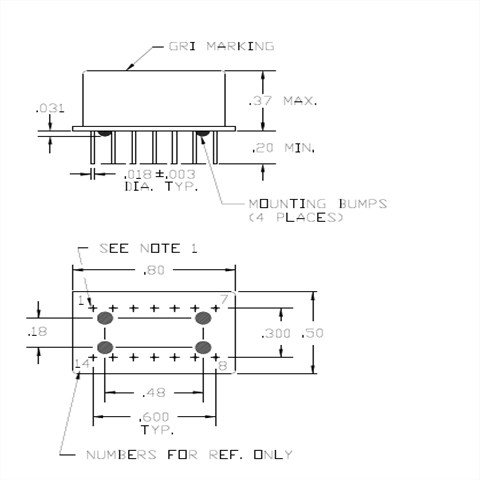

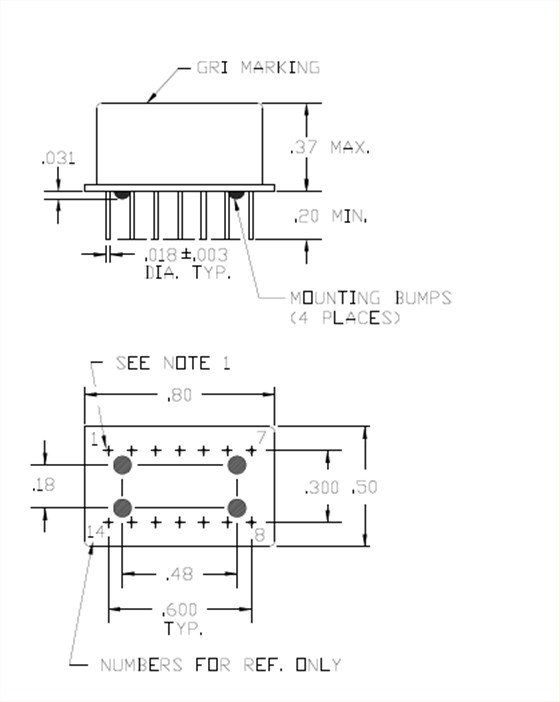

T1300-T26-5.0-LG-20.0MHz-E,有源晶振,Greenray晶振,6G微波接收器晶振 尺寸图
OSC晶振产品特性：
专有的晶体和振荡器设计，实现最佳性能
频率:10 - 50MHz
EFC用于精确调谐或锁相应用程序
20.3 x 12.7mm，坚固耐用的包装
+3.3或5VDC电源
CMOS输出
灵敏度<0.07 ppb/g
相对不受冲击和振动的影响
100%筛选g-Sensitivity性能
