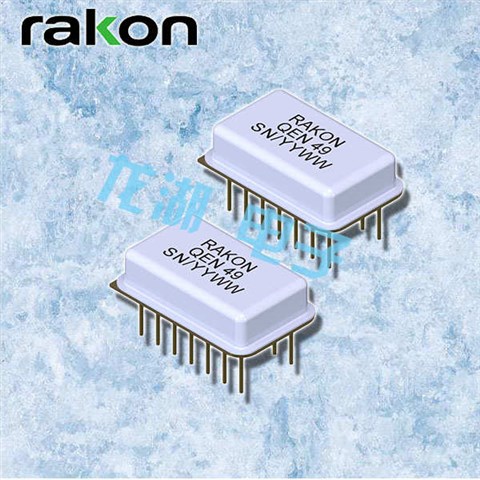

Rakon晶振,QEN49-BHRIDT50SB/T-32MHZ,长方型钟振,6G基站晶振，尺寸20.7*13.1mm,频率为32MHZ，进口有源晶振，OSC晶振，石英晶体振荡器，有源晶体振荡器，该晶体振荡器是基于DIL软件包中的混合技术。该XO执行+/-50至+/-100pm的总体频率稳定性（与25°C的温度范围和校准、负载和电源变化），每年老化+/- 5ppm。此参考文献适用于坚固的无线电系统，例如高速列车或航空电子系统。
进口有源晶振产品应用范围：推荐用于嵌入式应用程序、扩展的温度范围和坚固的环境，无线电系统，航空电子等领域。Rakon晶振,QEN49-BHRIDT50SB/T-32MHZ,长方型钟振,6G基站晶振.
Rakon晶振,QEN49-BHRIDT50SB/T-32MHZ,长方型钟振,6G基站晶振 参数表
| Line | Parameters | Conditions/Remarks | MinTyp | Max | Unit | |||||||||||||
| 3.1a | Nominal Frequency | 32 | MHz | |||||||||||||||
| 3.2 |
Steady state input current power |
20 | mA | |||||||||||||||
|
3.3 3.4 |
Global Frequency stability |
Including initial accuracy+freq temp stability+power supply stab+load stability+ageing over 15 years |
Temperature option DT Temperature option AY |
± 50 ± 100 |
ppm ppm |
|||||||||||||
| 3.5 | Initial frequency accuracy | ± 15 | ppm | |||||||||||||||
|
3.6 3.7 |
Frequency‐temperature stability |
Temperature option DT |
± 20 | ppm | ||||||||||||||
|
Temperature option AY |
± 25 | ppm | ||||||||||||||||
| 3.8 |
Frequency variation vs. supply voltage |
Over Operating Temperature | ± 3 | ppm | ||||||||||||||
| 3.9 | Frequency variation vs. load | Over Operating Temperature | ± 5 | ppm | ||||||||||||||
| 3.10 | Frequency ageing | Over 15 years | ± 12 | ppm | ||||||||||||||
| 3.11 | Start up time | 10 | ms | |||||||||||||||
| 3.12 | Output waveform | AHCMOS compatible | Square | |||||||||||||||
|
3.13a 3.13b 3.14a 3.14b |
Output level |
Supply option BH VOL Supply option AH Supply option BH VOH Supply option AH |
2.4 4.5 |
0.4 0.5 |
V V V V |
|||||||||||||
| 3.15 | Duty cycle | 40 | 60 | |||||||||||||||
| Option R | 45 | 55 | % | |||||||||||||||
| 3.16 | Rise time | 10%‐90% of Vcc, frequency > 10MHz | 5 | ns | ||||||||||||||
| 3.17 | Fall time | 90%‐ 10% of Vcc, , frequency > 10MHz | 5 | ns | ||||||||||||||

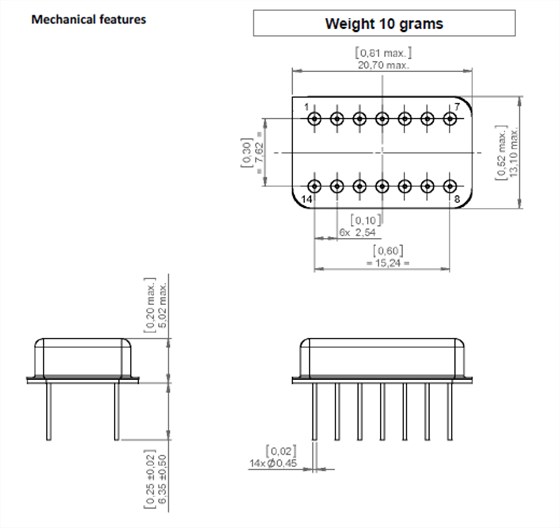

Rakon晶振,QEN49-BHRIDT50SB/T-32MHZ,长方型钟振,6G基站晶振 尺寸图

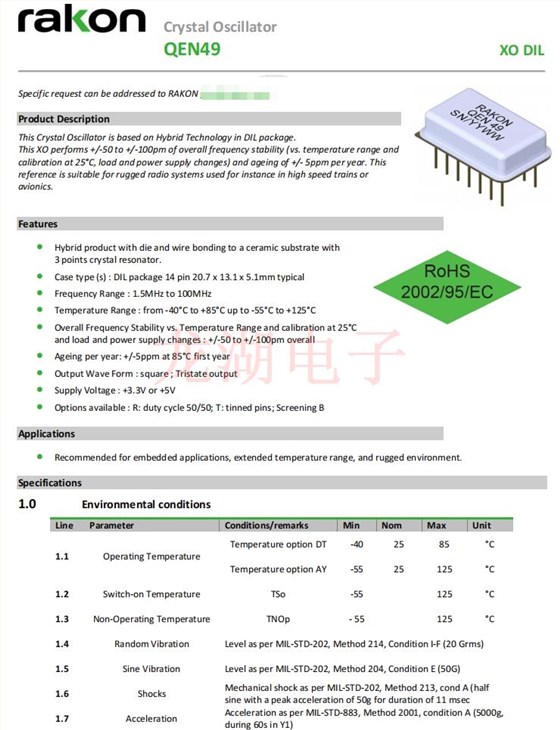

产品特性：
混合产品与模具和电线结合到陶瓷基板上与3点晶体谐振器。
外壳类型:DIL封装14引脚20.7x13.1x5.1mm典型
频率范围:1.5MHz至100MHz
温度范围:从‐40°C到+85°C到‐55°C到+125°C
总体频率稳定性与温度范围和校准在25°C
负载和电源变化:总体+/‐50至+/‐100pm
每年老化:第一年85°C时+/‐5ppm
输出波形:方形;三态输出
电源电压:+3.3V或+5V
可选:R:占空比50/50;T:锡制销;筛选B
