FC2BACBEI16.0-T1,四脚SMD晶振,FOX电子晶振厂家,2520mm

FC2BACBEI16.0-T1,四脚SMD晶振,FOX电子晶振厂家,2520mmFC2BACBEI16.0-T1,四脚SMD晶振,FOX电子晶振厂家,2520mm

产品简介

     FC2BACBEI16.0-T1,四脚SMD晶振,FOX电子晶振厂家,2520mm,贴片型晶振,16MHz高频晶振,石英材质金属谐振器,计时产品晶振,汽车空调晶振,耐低温晶振,石英无源晶振,飞机晶振,抗抖动晶振,儿童电话手表晶振,加热器晶振,军事设备晶振,航空晶振,智能摄像头晶振,扫地机器人晶振,智能家具晶振,

产品详情

Abracon-2

FC2BACBEI16.0-T1,四脚SMD晶振,FOX电子晶振厂家,2520mm,贴片型晶振,16MHz高频晶振,石英材质金属谐振器,计时产品晶振,汽车空调晶振,耐低温晶振,石英无源晶振,飞机晶振,抗抖动晶振,儿童电话手表晶振,加热器晶振,军事设备晶振,航空晶振,智能摄像头晶振,扫地机器人晶振,智能家具晶振,

LH-1

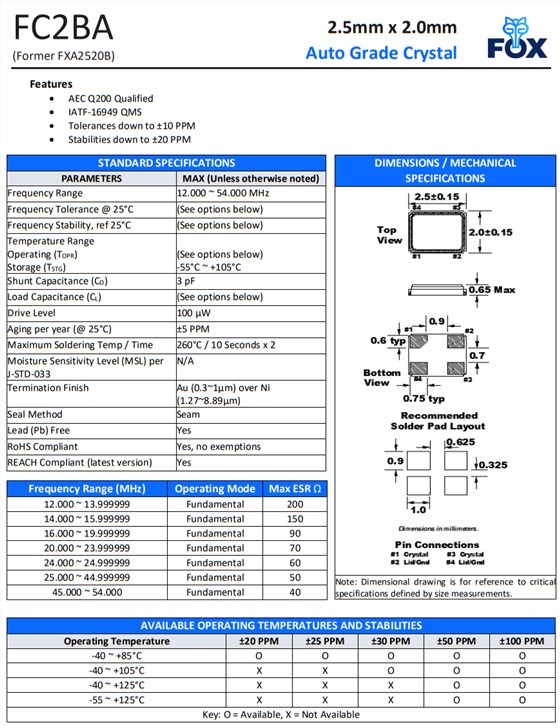

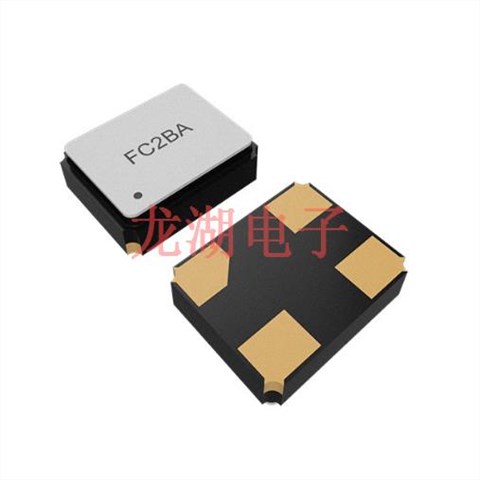

FC2BACBEI16.0-T1,四脚SMD晶振,FOX电子晶振厂家,2520mm

原厂编码 FC2BACBEI16.0-T1
频率 16MHz
厂家 FOX晶振
型号 FC2BA
频率偏差 ±50ppm
负载电容 10pF
工作温度 -40°C至12°C
尺寸 2.5*2.0mm

LH-3

Abracon-1

FC2BACBEI16.0-T1,四脚SMD晶振,FOX电子晶振厂家,2520mm

FC2BA(1)

FC2BA(2)

编码 品牌 型号 频率 频率偏差 频率容差 负载电容
FC3BACBDI16.0-T3 Fox crystal FC3BA 16 MHz ±50ppm ±30ppm 8 pF
FC3BACCGM20.0-T3 Fox crystal FC3BA 20 MHz ±30ppm ±30ppm 12 pF
FC3BACCLP12.0-T3 Fox crystal FC3BA 12 MHz ±30ppm ±30ppm 18 pF
FC3BAEBDI12.0-T1 Fox crystal FC3BA 12 MHz ±50ppm ±20ppm 8 pF
FC3BAEBDI16.0-T1 Fox crystal FC3BA 16 MHz ±50ppm ±20ppm 8 pF
FC3BAEBDI20.0-T1 Fox crystal FC3BA 20 MHz ±50ppm ±20ppm 8 pF
FC3BAEBDI24.0-T1 Fox crystal FC3BA 24 MHz ±50ppm ±20ppm 8 pF
FC3BAEBDI25.0-T1 Fox crystal FC3BA 25 MHz ±50ppm ±20ppm 8 pF
FC3BAEBDI40.0-T1 Fox crystal FC3BA 40 MHz ±50ppm ±20ppm 8 pF
FC3BAEBDI8.0-T1 Fox crystal FC3BA 8 MHz ±50ppm ±20ppm 8 pF
FC3BAEBGI12.0-T1 Fox crystal FC3BA 12 MHz ±50ppm ±20ppm 12 pF
FC3BAEBGI24.0-T1 Fox crystal FC3BA 24 MHz ±50ppm ±20ppm 12 pF
FC3BAEBGI25.0-T1 Fox crystal FC3BA 25 MHz ±50ppm ±20ppm 12 pF
FC3BAEBGI40.0-T1 Fox crystal FC3BA 40 MHz ±50ppm ±20ppm 12 pF
FC3BQBBDM20.0-T3 Fox crystal FC3BQ 20 MHz ±50ppm ±50ppm 8 pF
FC3BQBBME12.0-T3 Fox crystal FC3BQ 12 MHz ±50ppm ±50ppm 20 pF
FC3BQBBME16.0-T1 Fox crystal FC3BQ 16 MHz ±50ppm ±50ppm 20 pF
FC3BQBBME24.0-T1 Fox crystal FC3BQ 24 MHz ±50ppm ±50ppm 20 pF
FC3BQBBME25.0-T1 Fox crystal FC3BQ 25 MHz ±50ppm ±50ppm 20 pF
FC3BQBBME25.0-T3 Fox crystal FC3BQ 25 MHz ±50ppm ±50ppm 20 pF
FC3BQBBME27.0-T1 Fox crystal FC3BQ 27 MHz ±50ppm ±50ppm 20 pF
FC3BQBBMM12.0-T1 Fox crystal FC3BQ 12 MHz ±50ppm ±50ppm 20 pF
