SMX-6S音频晶振 20MHZ石英晶体 6G物联网 QuartzcomCrystal，尺寸2.5x2.0mm，频率20MHZ，瑞士石英通晶振，瑞士进口晶振，石英通贴片谐振器，SMD晶振，石英贴片晶振，SMD无源晶体，轻薄型晶体，超小型晶振，石英晶振，无铅环保晶振，无源晶振，水晶振动子，电信专用晶振，汽车应用晶振，医疗设备晶振，音频设晶振，智能家居石英晶振，小型设备晶振，蓝牙音响专用晶振，无线网络晶振，通信产品晶振，低老化晶振，低成本晶体，高性能晶振，产品具有高性能低老化的特点。
SMD晶振产品超级适合用于电信，汽车应用，医疗设备，音频设，智能家居，小型设，蓝牙音响，无线网络，通信产品等领域。SMX-6S音频晶振 20MHZ石英晶体 6G物联网 QuartzcomCrystal.

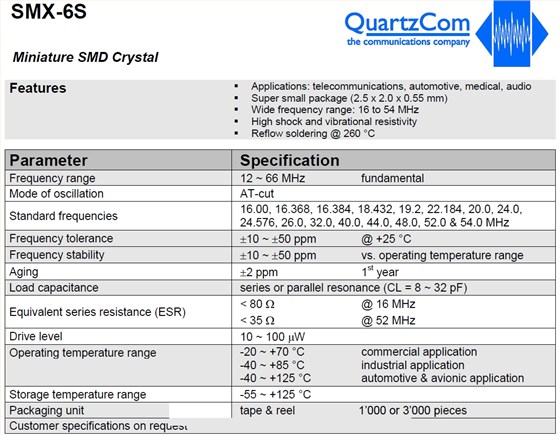

SMX-6S音频晶振 20MHZ石英晶体 6G物联网 QuartzcomCrystal 参数表
| Parameter | Specification | |||||||||
| Frequency range | 20 MHzfundamental | |||||||||
| Mode of oscillation | AT-cut | |||||||||
| Standard frequencies |
16.00, 16.368, 16.384, 18.432, 19.2, 22.184, 20.0, 24.0, 24.576, 26.0, 32.0, 40.0, 44.0, 48.0, 52.0 & 54.0 MHz |
|||||||||
| Frequency tolerance | 土10 ~土50 ppm@ +25 °C | |||||||||
| Frequency stability | 土10 ~土50 ppmvs. operating temperature range | |||||||||
| Aging | 土2 ppm | 1st | year | |||||||
| Load capacitance | series or parallel resonance (CL = 8 ~ 32 pF) | |||||||||
| Equivalent series resistance (ESR) |
< 80Ω < 35Ω |
@ 16 MHz @ 52 MHz |
||||||||
| Drive level | 10 ~ 100μW | |||||||||
| Operating temperature range |
-20 ~ +70 °C -40 ~ +85 °C -40 ~ +125 °C |
commercial application industrial application automotive & avionic application |
||||||||
| Storage temperature range | -55 ~ +125 °C | |||||||||
| Packaging unit | tape & reel1’000 or 3’000 pieces | |||||||||
| Customer specifications on request | ||||||||||

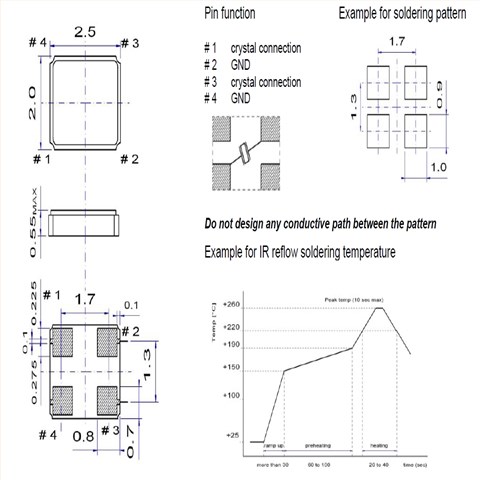

SMX-6S音频晶振 20MHZ石英晶体 6G物联网 QuartzcomCrystal 尺寸图
无源晶振产品特性：
16至54MHz
高抗冲击和振动性
260°C回流焊接
非常低的老化
