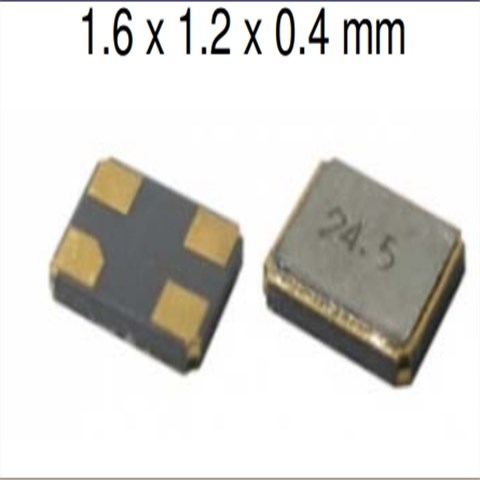

F1612A-20-20-F‐15‐F‐32.000MHz\FCD-Tech晶振\6G无线应用晶振，频率32MHZ，F1612A是一款采用超小型封装的陶瓷4焊盘SMD晶体，尺寸为1.6x1.2x0.40mm。频率范围为24MHz至60MHz。多种稳定性和耐温性选项。四脚贴片晶振，超小型晶振，SMD无源晶体，石英晶振，荷兰进口晶振，轻薄型晶振，无铅环保晶振，石英晶体谐振器，SMD晶振，石英贴片晶振，无源石英晶振，蓝牙专用晶振，无线应用晶振，仪器设备晶振，便携式设备晶振，智能家居晶振，以太网晶振，路由器专用晶振，高质量晶振，低损耗晶振。
石英晶振产品具有高质量低损耗的特点，适用范围广泛，尤其适合用于蓝牙，无线应用，仪器设备，便携式设备，网络设备等领域。F1612A-20-20-F‐15‐F‐32.000MHz\FCD-Tech晶振\6G无线应用晶振.

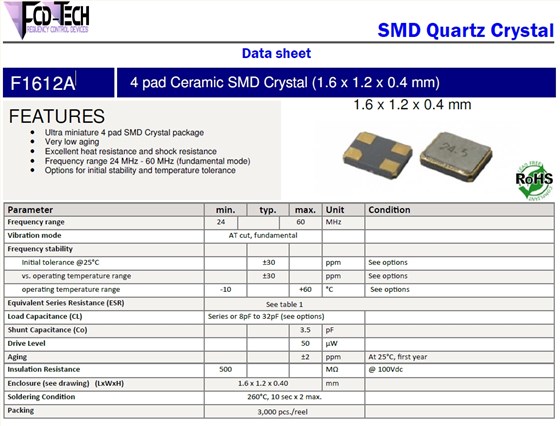

F1612A-20-20-F‐15‐F‐32.000MHz\FCD-Tech晶振\6G无线应用晶振 参数表
| Parameter | min. | typ. | max. | Unit | Condition | ||||||||||
| Frequency range |
|
32 |
|
MHz | |||||||||||
| Vibration mode | AT cut, fundamental | ||||||||||||||
| Frequency stability | |||||||||||||||
| Initial tolerance @25°C | ±30 | ppm | See options | ||||||||||||
| vs. operating temperature range | ±30 | ppm | See options | ||||||||||||
| operating temperature range | ‐10 | +60 | °C | See options | |||||||||||

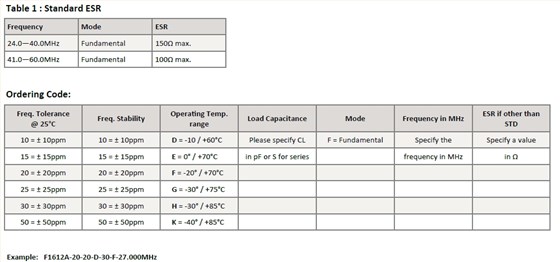

| Equivalent Series Resistance (ESR) | See table 1 | ||||||||||||||
| Load Capacitance (CL) | Series or 8pF to 32pF (see options) | ||||||||||||||
| Shunt Capacitance (Co) | 3.5 | pF | |||||||||||||
| Drive Level | 50 | µW | |||||||||||||
| Aging | ±2 | ppm | At 25°C, ?rst year | ||||||||||||
| Insulation Resistance | 500 | M? | @ 100Vdc | ||||||||||||
| Enclosure (see drawing)(LxWxH) | 1.6 x 1.2 x 0.40 | mm | |||||||||||||
| Soldering Condition | 260°C, 10 sec x 2 max. | ||||||||||||||
| Packing | 3,000 pcs./reel | ||||||||||||||

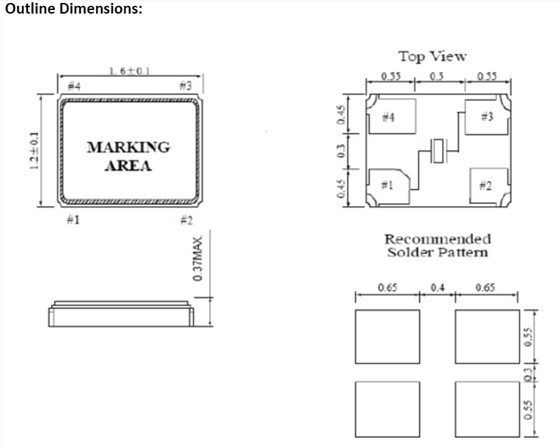

F1612A-20-20-F‐15‐F‐32.000MHz\FCD-Tech晶振\6G无线应用晶振 尺寸图
产品特性：
超小型4焊盘SMD晶体封装
非常低的老化
优异的耐热性和抗冲击性
频率范围24MHz至60MHz(基本模式)
更多相关荷兰FCD-Tech晶振型号,请咨询我们！
