三呢无源晶体\SR10130M7-26.00000-T&R\6G转换机晶振，尺寸为2.0*1.6mm，频率26MHZ，韩国三呢晶振，Sunny无源晶振，石英晶体，石英晶体谐振器，贴片晶体，石英贴片晶振，SMD晶振，无源谐振器，无源晶体，无源贴片晶振，水晶振动子，石英贴片晶体，SMD无源晶振，2016mm贴片晶振，低损耗贴片晶振，高性能晶振，高精度石英晶振，高品质贴片晶振，通信贴片晶振，可穿戴设备专用晶振，物联网专用晶振，工业应用晶振，石英晶体产品具备高品质高精度的特点.比较适合用于通信应用，工业应用产品，便携式设备，可视化智能家居，物联网，蓝牙模块等领域。三呢无源晶体\SR10130M7-26.00000-T&R\6G转换机晶振.

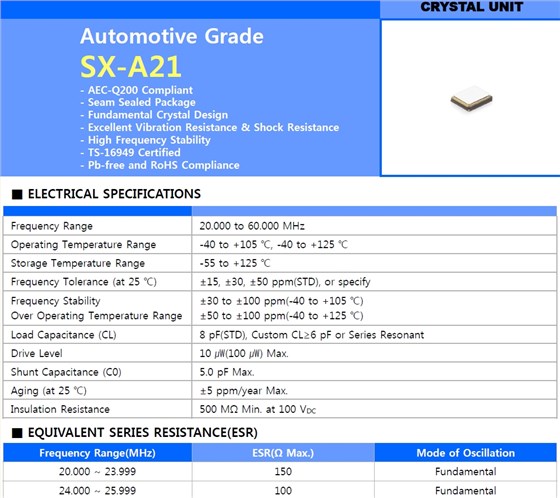

三呢无源晶体\SR10130M7-26.00000-T&R\6G转换机晶振参数表
| Frequency Range | 26.000 MHz | |||||||||||||||
| Operating Temperature Range | -40 to +105 ℃, -40 to +125 ℃ | |||||||||||||||
| Storage Temperature Range | -55 to +125 ℃ | |||||||||||||||
| Frequency Tolerance (at 25 ℃) | ±15, ±30, ±50 ppm(STD), or specify | |||||||||||||||
|
Frequency Stability Over Operating Temperature Range |
±30 to ±100 ppm(-40 to +105 ℃) ±50 to ±100 ppm(-40 to +125 ℃) |
|||||||||||||||
| Load Capacitance (CL) | 8 pF(STD), Custom CL≥6 pF or Series Resonant | |||||||||||||||
| Drive Level | 10 ?(100 ?) Max. | |||||||||||||||
| Shunt Capacitance (C0) | 5.0 pF Max. | |||||||||||||||
| Aging (at 25 ℃) | ±5 ppm/year Max. | |||||||||||||||
| Insulation Resistance | 500 MΩ Min. at 100 VDC | |||||||||||||||

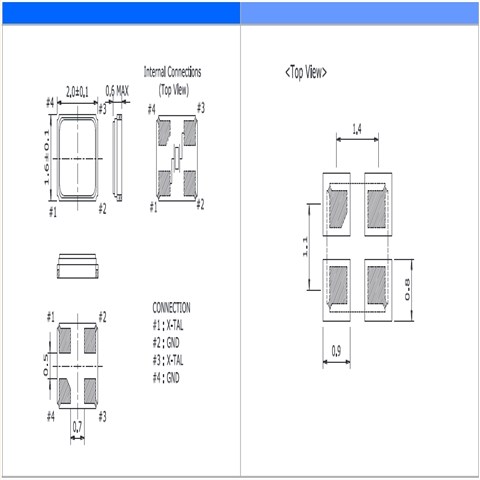

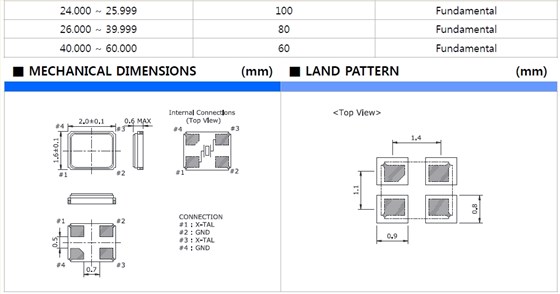

三呢无源晶体\SR10130M7-26.00000-T&R\6G转换机晶振 尺寸图
SMD crystal产品特性：
符合AEC-Q200
接缝密封包装
基本水晶设计
卓越的抗振性和抗冲击性
高频稳定性
TS-16949认证
无铅和RoHS合规
更多相关韩国三呢Sunny Crystal型号，请联系我们！
