LFXTAL066431REEL,伊克德耐热晶振,IQXC-90,计时产品

LFXTAL066431REEL,伊克德耐热晶振,IQXC-90,计时产品LFXTAL066431REEL,伊克德耐热晶振,IQXC-90,计时产品

产品简介

          LFXTAL066431REEL,伊克德耐热晶振,IQXC-90,计时产品,,进口晶体谐振器,无电压晶振,晶体谐振器,电话手表晶振,高精度晶振,汽车GPS晶振,电子计算机晶振,智能手机晶振,电脑芯片晶振,空调晶振,电子家居晶振,耐震晶振,智能手机晶振,优秀的适应性在-40度到85度的恶劣环境也能平稳的为产品运行

产品详情

LH-1

Abracon-2

LFXTAL066431REEL,伊克德耐热晶振,IQXC-90,计时产品,,进口晶体谐振器,无电压晶振,晶体谐振器,电话手表晶振,高精度晶振,汽车GPS晶振,电子计算机晶振,智能手机晶振,电脑芯片晶振,空调晶振,电子家居晶振,耐震晶振,智能手机晶振,优秀的适应性在-40度到85度的恶劣环境也能平稳的为产品运行

LH-2

Abracon-1

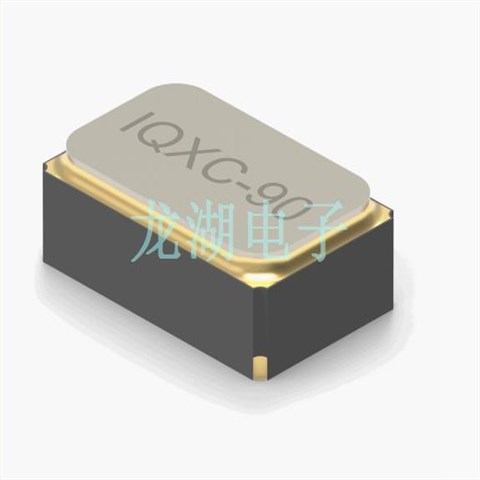

LFXTAL066431REEL,伊克德耐热晶振,IQXC-90,计时产品

原厂编码 LFXTAL066431REEL
频率 32.768KHz
厂家 IQD晶振
型号 IQXC-90
频率偏差 ±20ppm
负载电容 7pF
工作温度 -40°C至85°C
尺寸 1.6*1.0mm

LH-3

ECS-1

LFXTAL066431REEL,伊克德耐热晶振,IQXC-90,计时产品

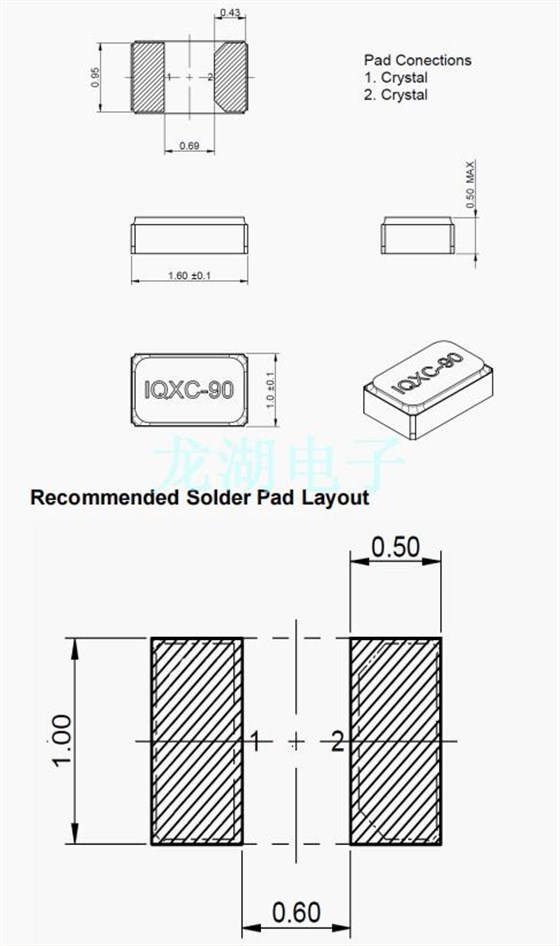

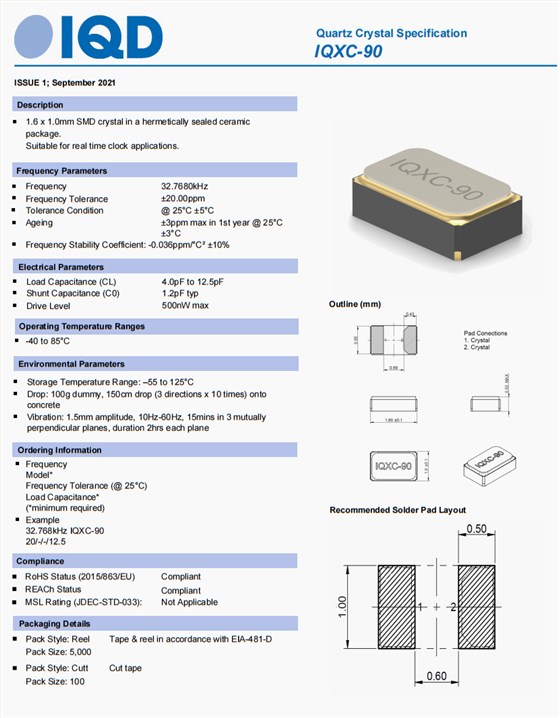

IQXC-90(1)

IQXC-90(2)

Mfr Part # Mfr Series Frequency Frequency Tolerance Load Capacitance
LFXTAL050789REEL IQD Crystal IQXC-25 32.768 kHz ±20ppm 12.5pF
LFXTAL069494REEL IQD Crystal IQXC-42 25 MHz ±15ppm 10pF
LFXTAL056140REEL IQD Crystal IQXC-180 AUTO 24 MHz ±50ppm 8pF
LFXTAL036075BULK IQD Crystal HC49/4H 27.12 MHz ±30ppm 10pF
LFXTAL027945BULK IQD Crystal HC49/4H 16 MHz ±30ppm 22pF
LFXTAL062558REEL IQD Crystal IQXC-25 32.768 kHz ±10ppm 9pF
LFXTAL059627REEL IQD Crystal IQXC-42 38.4 MHz ±15ppm 10pF
LFXTAL082135CUTT IQD Crystal IQXC-42 48 MHz ±10ppm 8pF
LFXTAL057623REEL IQD Crystal IQXC-180 AUTO 24 MHz ±30ppm 8pF
LFXTAL071744REEL IQD Crystal IQXC-180 AUTO 16 MHz ±30ppm 8pF
LFXTAL073664REEL IQD Crystal IQXC-180 AUTO 12 MHz ±50ppm 8pF
LFXTAL024944BULK IQD Crystal HC49/4H 16 MHz ±30ppm 18pF
LFXTAL036900BULK IQD Crystal HC49/4H 4 MHz ±10ppm 30pF
LFXTAL059461REEL IQD Crystal IQXC-25 32.768 kHz ±20ppm 7pF
LFXTAL066198REEL IQD Crystal IQXC-90 32.768 kHz ±20ppm 9pF
LFXTAL085845 IQD Crystal IQXC-42 25 MHz ±10ppm 8pF
LFXTAL085842 IQD Crystal IQXC-42 16 MHz ±10ppm 8pF
LFXTAL085857 IQD Crystal IQXC-42 40 MHz ±10ppm 10pF
LFXTAL082887RL3K IQD Crystal IQXC-42 16 MHz ±10ppm 10pF
LFXTAL085851 IQD Crystal IQXC-42 32 MHz ±10ppm 10pF
LFXTAL069493REEL IQD Crystal IQXC-42 24 MHz ±15ppm 10pF
LFXTAL082129CUTT IQD Crystal IQXC-42 32 MHz ±10ppm 8pF
LFXTAL073170REEL IQD Crystal IQXC-42 32 MHz ±10ppm 10pF
LFXTAL085841 IQD Crystal IQXC-42 20 MHz ±15ppm 10pF
LFXTAL085844 IQD Crystal IQXC-42 24 MHz ±20ppm 10pF
LFXTAL085849 IQD Crystal IQXC-42 27.12 MHz ±10ppm 10pF
LFXTAL071774REEL IQD Crystal IQXC-180 AUTO 12 MHz ±50ppm 8pF
LFXTAL071758REEL IQD Crystal IQXC-180 AUTO 25 MHz ±30ppm 8pF
LFXTAL071747REEL IQD Crystal IQXC-180 AUTO 16.384 MHz ±30ppm 8pF
LFXTAL071750REEL IQD Crystal IQXC-180 AUTO 20 MHz ±30ppm 8pF
LFXTAL053426REEL IQD Crystal IQXC-180 AUTO 16 MHz ±50ppm 8pF
LFXTAL055998REEL IQD Crystal IQXC-180 AUTO 20 MHz ±50ppm 8pF
LFXTAL071785REEL IQD Crystal IQXC-180 AUTO 25 MHz ±50ppm 8pF
