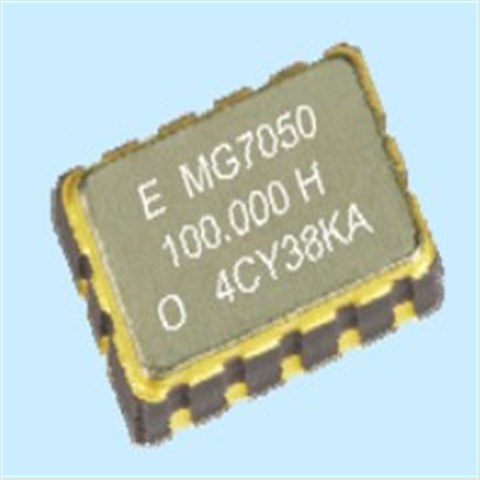

MG7050HAN 156.250000MHz HCSL石英晶振,X1M000431001000网络晶振

LH-1

MG7050HAN 156.250000MHz HCSL石英晶振,X1M000431001000网络晶振，日本进口晶振，EPSON爱普生晶振，型号：MG7050HAN，编码为：X1M000431001000，频率为：156.250000MHz，小体积晶振尺寸：7.0x5.0x1.6mm封装，14垫脚贴片晶振，HCSL输出差分晶振，差分晶体振荡器，石英晶体振荡器，有源晶振，石英晶振，SMD晶振。具有超小型，轻薄型，低相位噪声，低抖动，低功耗，低电源电压，高精度，高性能，高品质等特点。本产品是利用锯波谐振器的基本振荡的HCSL输出的高频振荡器。这实现了频率为100~200MHz的低抖动和低噪声。适用于：移动通讯设备，服务器、导航仪，存储，网络，路由器，交换机、物联网，无线网络，蓝牙模块晶振，SATA，SAS，光纤通信，10G以太网等应用。

LH-2

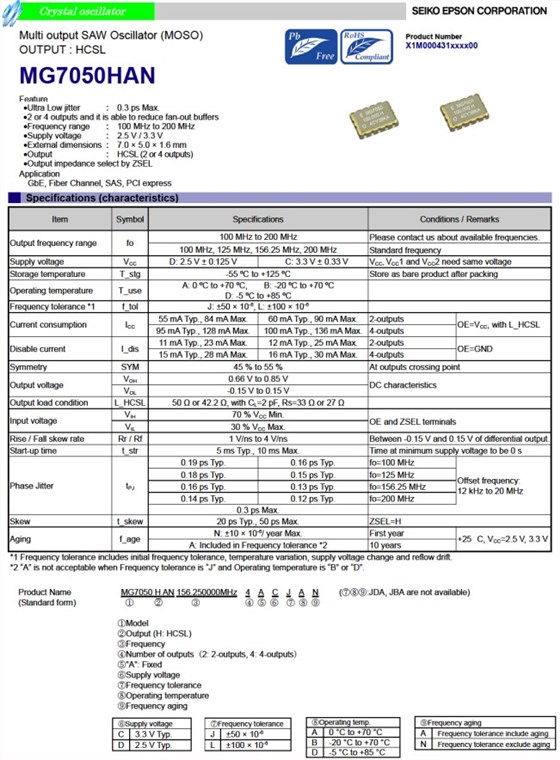

MG7050HAN 156.250000MHz HCSL石英晶振,X1M000431001000网络晶振参数表

Item	Symbol	Specifications		Conditions / Remarks
Output frequency range	f0	156.250MHz		Please contact us about available frequencies.
Output frequency range	f0	100MHz , 125MHz , 156.25MHz , 200MHz		Standard frequency
Supply voltage	VCC	D : 2.5V ± 0.125V	C : 3.3V ± 0.33V	VCC1 and VCC2 need same voltage
Storage temperature	T_stg	-55°C to +125°C		Store as bare product after packing
Operating temperature	T_use	A : 0°C to +70°C B : -20°C to +70°C D : -5°C to +85°C
Frequency tolerance *1	f_tol	J : ± 50 × 10-6 L : ±100 × 10-6
Current consumption	ICC	55 mA Typ. 84 mA Max.	60 mA Typ. 90 mA Max.	2-outputs	OE = VCC with L_HCSL
Current consumption	ICC	95 mA Typ. 128 mA Max.	100 mA Typ. 136 mA Max.	4-outputs	OE = VCC with L_HCSL
Disable current	I_dis	11 mA Typ. 23 mA Max.	12 mA Typ. 25 mA Max.	2-outputs	OE = GND
Disable current	I_dis	15 mA Typ. 28 mA Max.	16 mA Typ. 30 mA Max.	4-outputs	OE = GND
Symmetry	SYM	45%to 55%		At outputs crossing point
Output voltage	VOH	0.66 V to 0.85 mV		DC characteristics
Output voltage	VOL	-0.15 V to 0.15 V		DC characteristics
Output load condition	L_HCSL	50Ω or 42.2Ω, with CL = 2pF, Rs = 33Ω or 27Ω
Input voltage	VIH	70% VCCMin.		OE and ZSEL terminals
Input voltage	VIL	30% VCCMax.		OE and ZSEL terminals
Rise time / Fall time	Rr / Rf	1 V/ns to 4 V/ns		Between -0.15 V and 0.15 V of differential output.
Start-up time	t_str	5 ms Typ., 10 ms Max.		Time at minimum supply voltage to be 0 s
Phase Jitter	tPJ	0.19 ps Typ.	0.16 ps Typ.	f0= 100MHz	Offset frequency: 12kHz to 20MHz
		0.18 ps Typ.	0.15 ps Typ.	f0= 125MHz
		0.16 ps Typ.	0.13 ps Typ.	f0= 156.25MHz
		0.14 ps Typ.	0.12 ps Typ.	f0= 200MHz
		0.3 ps Max.
Skew	t_skew	20ps Typ. 50ps Max.		FSEL = H
Aging	f_aging	N : ± 10 × 10-6/ year Max.		First year		+25°C, VCC= 2.5V , 3.3V
Aging	f_aging	A : Included in Frequency tolerance *2		10 years		+25°C, VCC= 2.5V , 3.3V

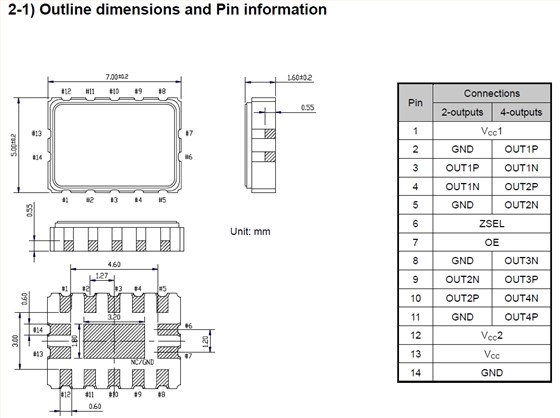

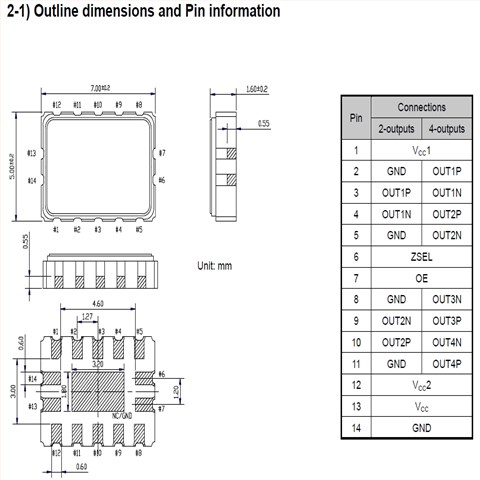

MG7050HAN 156.250000MHz HCSL石英晶振,X1M000431001000网络晶振 尺寸图

MG7050HAN 156.250000MHz HCSL石英晶振,X1M000431001000网络晶振

产品特性：

超低抖动：0.3ps最大值。

2路或4路输出，能够减少扇出

缓冲区

频率范围：100MHz~200MHz

供电电压：2.5V / 3.3V

外形尺寸：7.0×5.0×1.6mm

输出：HCSL(2或4个输出)差分晶振

输出阻抗由ZSEL选择

无铅。

符合欧盟RoHS指令

晶振编码	品牌	型号	频率	尺寸	输出方式
X1M000091000100	EPSON晶振	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL
X1M000091000200	EPSON晶振	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL
X1M000091000300	EPSON晶振	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL
X1M000091000400	EPSON晶振	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL
X1M000091000500	EPSON晶振	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL
X1M000091000600	EPSON晶振	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL
X1M000091000700	EPSON晶振	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL
X1M000091000800	EPSON晶振	EG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	HCSL
X1M000091000900	贴片晶振	EG-2102CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	HCSL
X1M000091001000	EPSON晶振	EG-2102CA	322.265625 MHz	7.00 x 5.00 x 1.20 mm	HCSL
X1M000101000200	EPSON晶振	EG-2121CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL
X1M000431000400	EPSON晶振	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL
X1M000431000600	EPSON晶振	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL
X1M000431000700	EPSON晶振	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL
X1M000431000800	EPSON晶振	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL
X1M000431000900	EPSON晶振	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL
X1M000431001000	EPSON晶振	MG7050HAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	HCSL
X1M000431001100	EPSON晶振	MG7050HAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	HCSL
X1M000461000100	EPSON晶振	XG5032HAN	100.000000 MHz	5.00 x 3.20 x 1.40 mm	HCSL
X1M000461000200	EPSON晶振	XG5032HAN	100.000000 MHz	5.00 x 3.20 x 1.40 mm	HCSL
X1M000461000300	EPSON晶振	XG5032HAN	100.000000 MHz	5.00 x 3.20 x 1.40 mm	HCSL
X1M000461000600	EPSON晶振	XG5032HAN	100.000000 MHz	5.00 x 3.20 x 1.40 mm	HCSL
